Rear Window Panel Trim Replacement

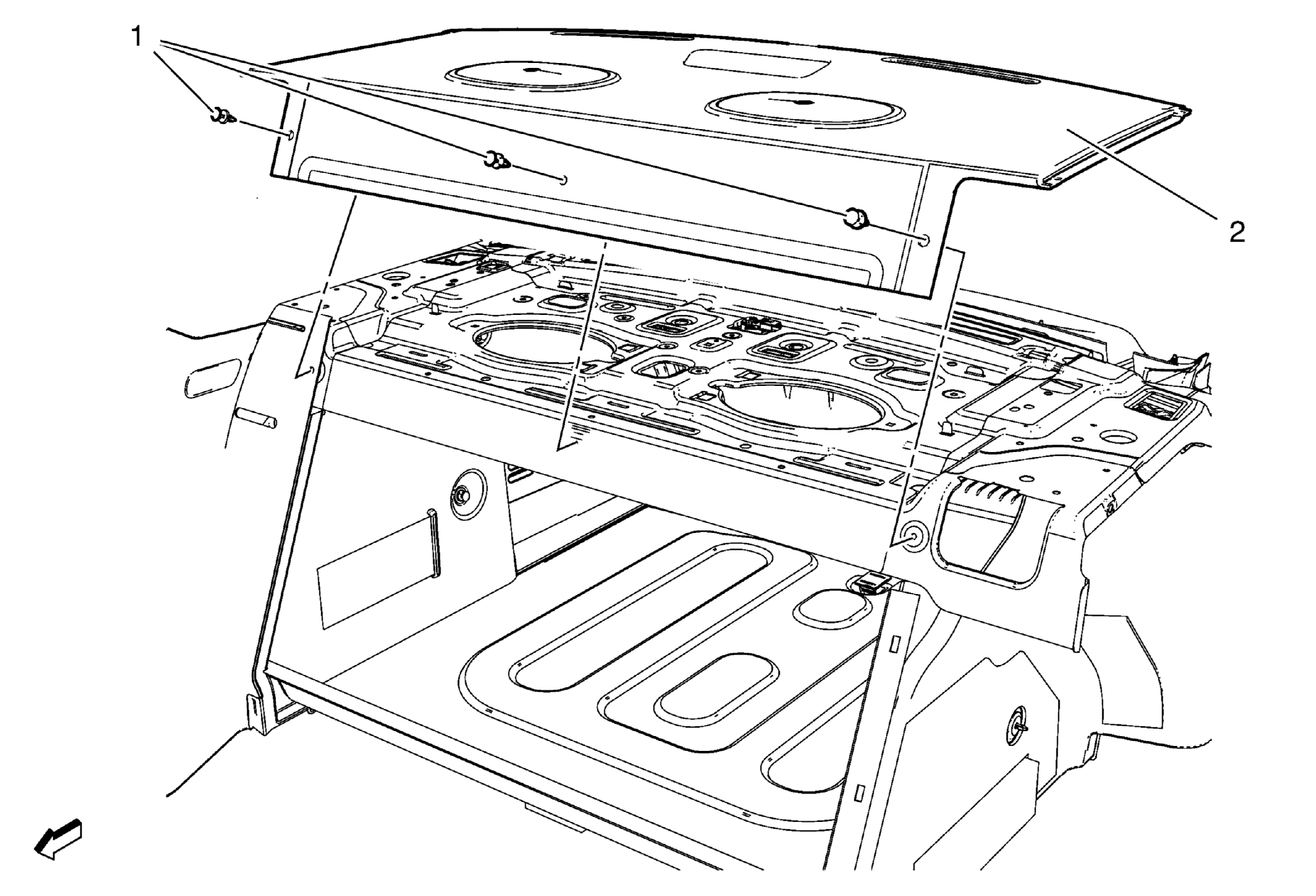

Fig 1: Rear Window Panel Trim
GM2027697Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the rear seat back. Refer to Rear Seat Removal and Installation (40 Percent Seat) and Rear Seat Removal and Installation (60 Percent Seat) .
  2. Remove the high mount stop lamp. Refer to High Mount Stop Lamp Replacement .
1 Rear Window Panel Trim Clip (Qty: 3)
2 Rear Window Panel Trim
