Rear Seat Removal and Installation (60 Percent Seat)

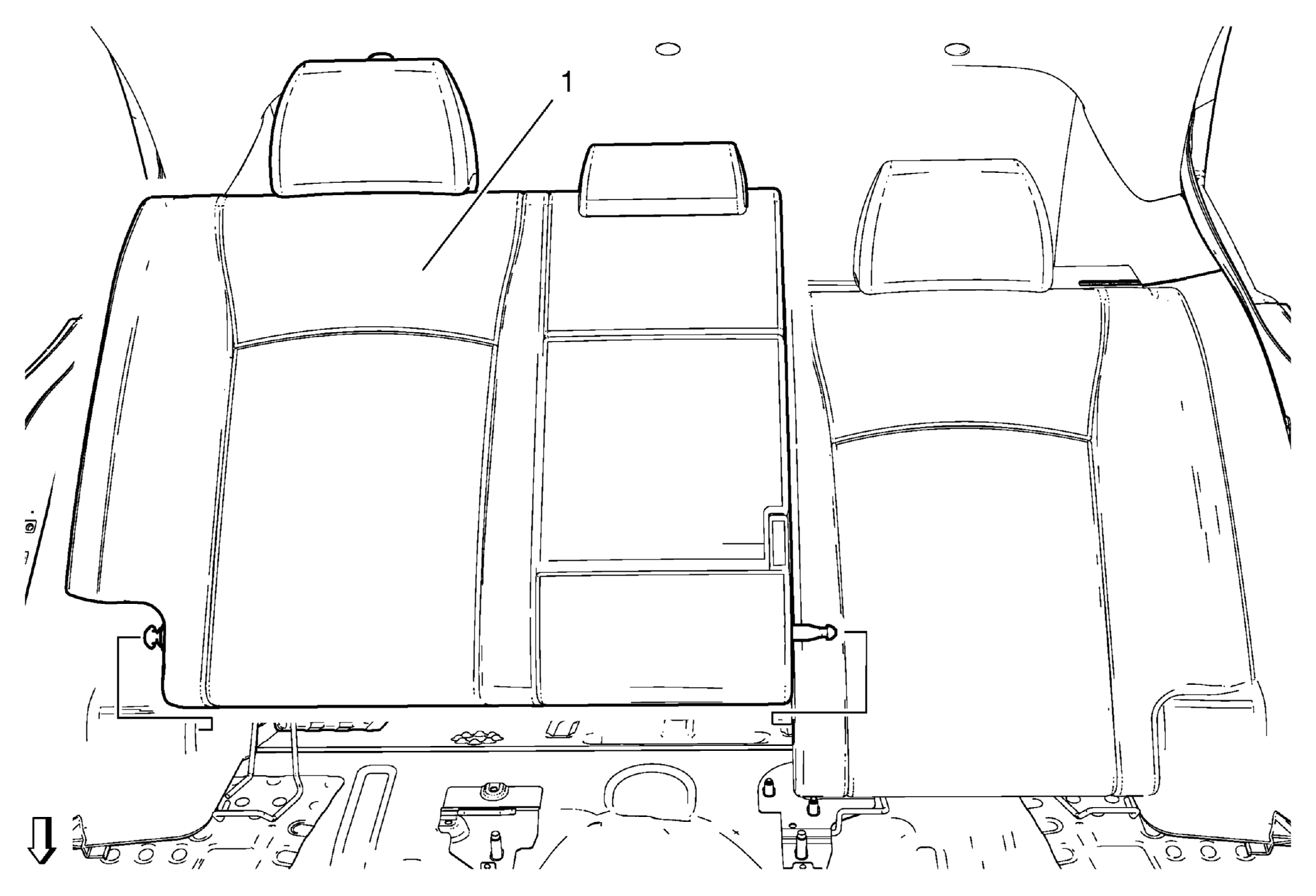

Fig 1: Rear Seat (60 Percent Seat)

GM2027380

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedures

Remove the right rear seat back cushion bolster. Refer to Rear Seat Back Bolster Replacement .
Remove the rear seat belt buckle. Refer to Rear Seat Belt Buckle Replacement .

1

Rear Seat Back- Right Side

Procedure

Fold down the rear seat back.
Lift up on the outer side of the seat back to disengage from the outer guide.
Pull the seat back outboard to disengage from the inner guide.
