Installation Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

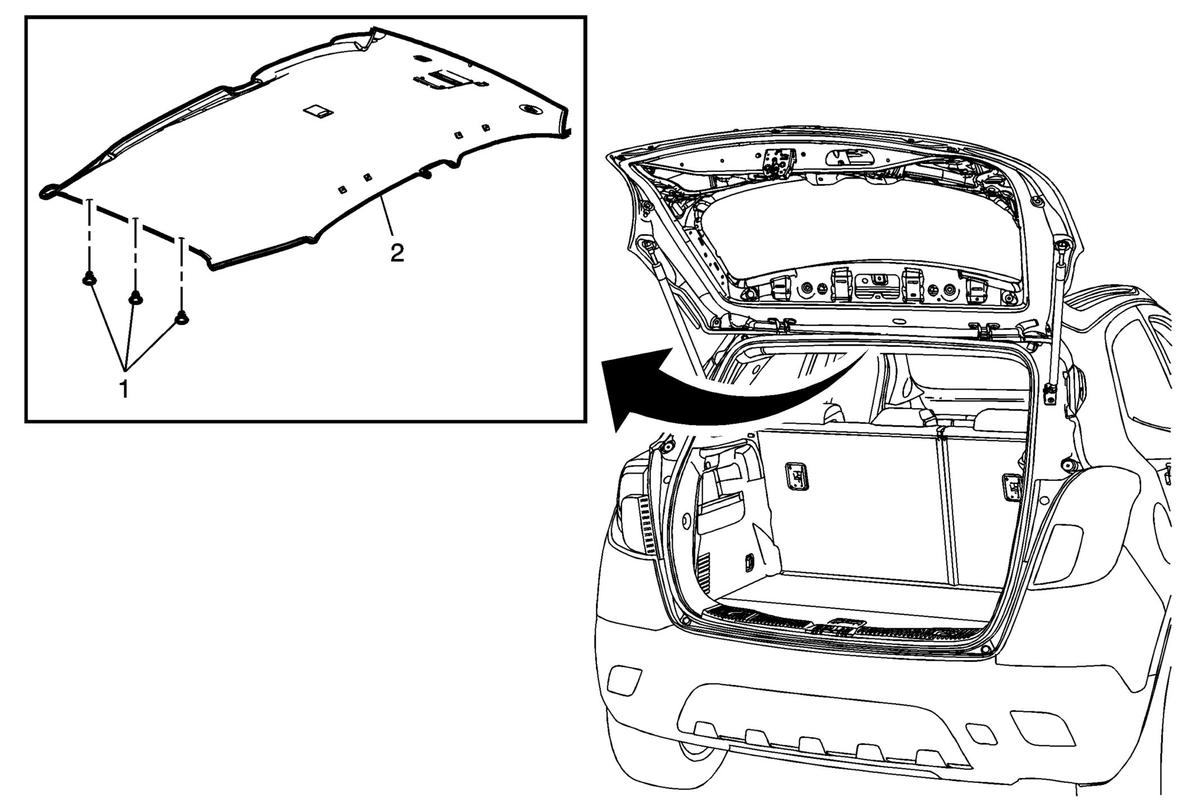

    Fig 1: Headliner Trim Panel Retainers
    GM2790941Courtesy of GENERAL MOTORS COMPANY
  1. With the aid of an assistant, position the headliner trim panel assembly (2) into the vehicle through the liftgate opening.
  2. Connect the electrical connectors to the headliner trim panel assembly (2).
  3. Tape any unused connectors to the headliner with a high adhesive tape.
  4. Install the 3 headliner trim panel retainers (1).
    5. Fig 2: Body Lock Pillar Upper Trim Panel
    GM2788665Courtesy of GENERAL MOTORS COMPANY
  5. Install the body lock pillar upper trim panel (3). Refer to Body Lock Pillar Upper Trim Panel Replacement .
    6. Fig 3: Center Pillar Upper Trim Panel Assembly
    GM2878019Courtesy of GENERAL MOTORS COMPANY
  6. Install the center pillar upper trim panel assembly (3). Refer to Center Pillar Upper Trim Panel Replacement (Trax) .
    7. Fig 4: Rear Seat Position Center Courtesy Lamp
    GM2777920Courtesy of GENERAL MOTORS COMPANY
  7. Install the rear seat position center courtesy lamp (1). Refer to Rear Seat Position Center Courtesy Lamp Replacement .
    8. Fig 5: Roof Console Assembly
    GM2787267Courtesy of GENERAL MOTORS COMPANY
  8. Install the roof console assembly (2). Refer to Roof Console Replacement .
    9. Fig 6: Windshield Outside Moisture Sensor Cover
    GM2871413Courtesy of GENERAL MOTORS COMPANY
  9. Install the windshield outside moisture sensor cover (1). Refer to Windshield Outside Moisture Sensor Cover Replacement (Trax) .

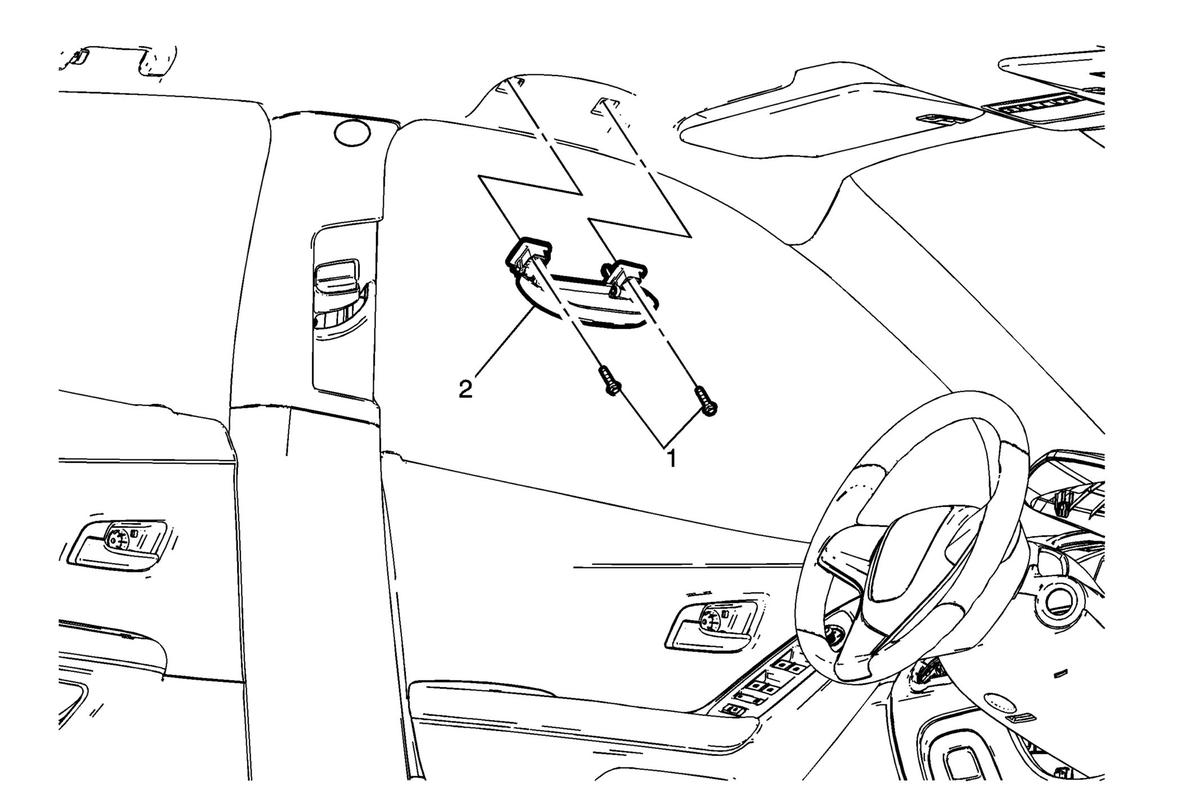

    10. Fig 7: Roof Rail Front Stowage Compartment
    GM2877663Courtesy of GENERAL MOTORS COMPANY
  10. Install the roof rail front stowage compartment (2). Refer to Roof Rail Front Stowage Compartment Replacement (Trax) .
    11. Fig 8: Roof Rail Rear Assist Handle Assembly
    GM2877739Courtesy of GENERAL MOTORS COMPANY
  11. Install the roof rail rear assist handle assembly (2). Refer to Roof Rail Rear Assist Handle Replacement (Trax) .

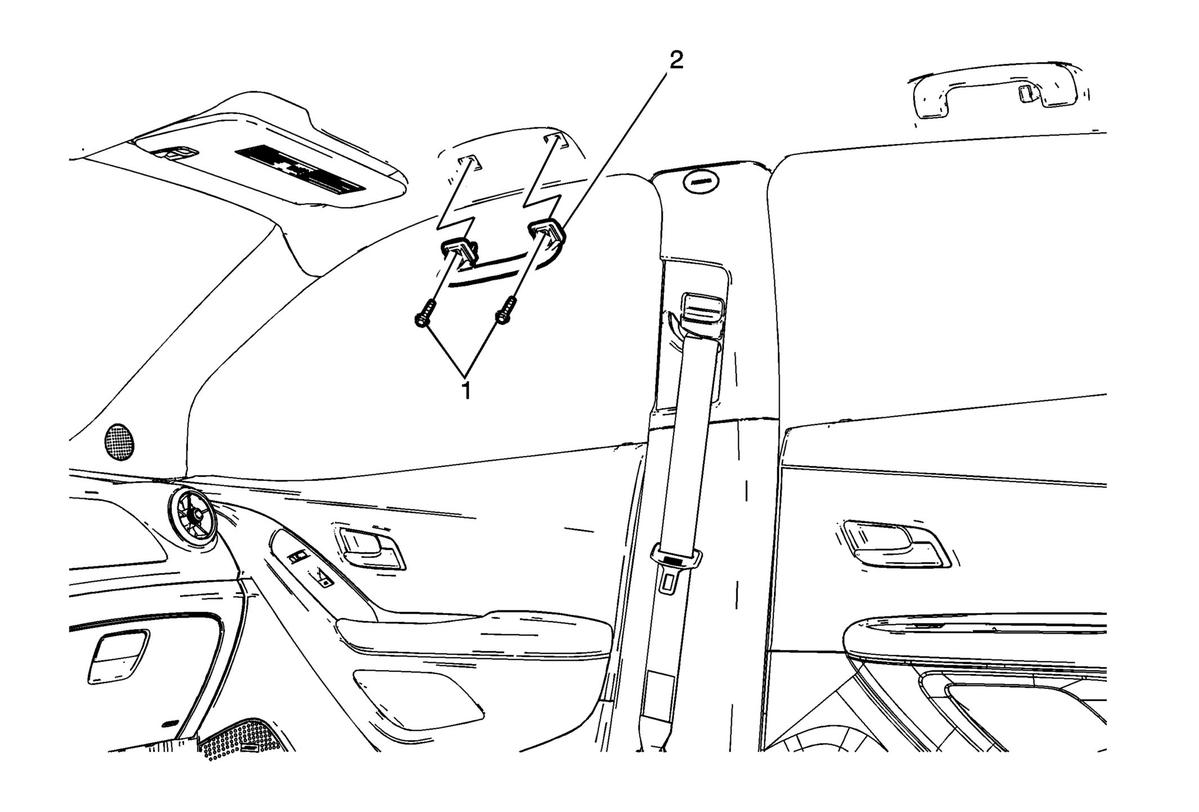

    12. Fig 9: Roof Rail Assist Handle Assembly
    GM2877416Courtesy of GENERAL MOTORS COMPANY
  12. Install the roof rail assist handle assembly (2). Refer to Roof Rail Assist Handle Replacement (Trax) .
    13. Fig 10: Sunshade Support Assembly
    GM2877808Courtesy of GENERAL MOTORS COMPANY
  13. Install the sunshade support assembly (2). Refer to Sunshade Support Replacement (Trax) .
    14. Fig 11: Sunshade Assembly
    GM2877805Courtesy of GENERAL MOTORS COMPANY
  14. Install the sunshade assembly (3). Refer to Sunshade Replacement (Trax) .

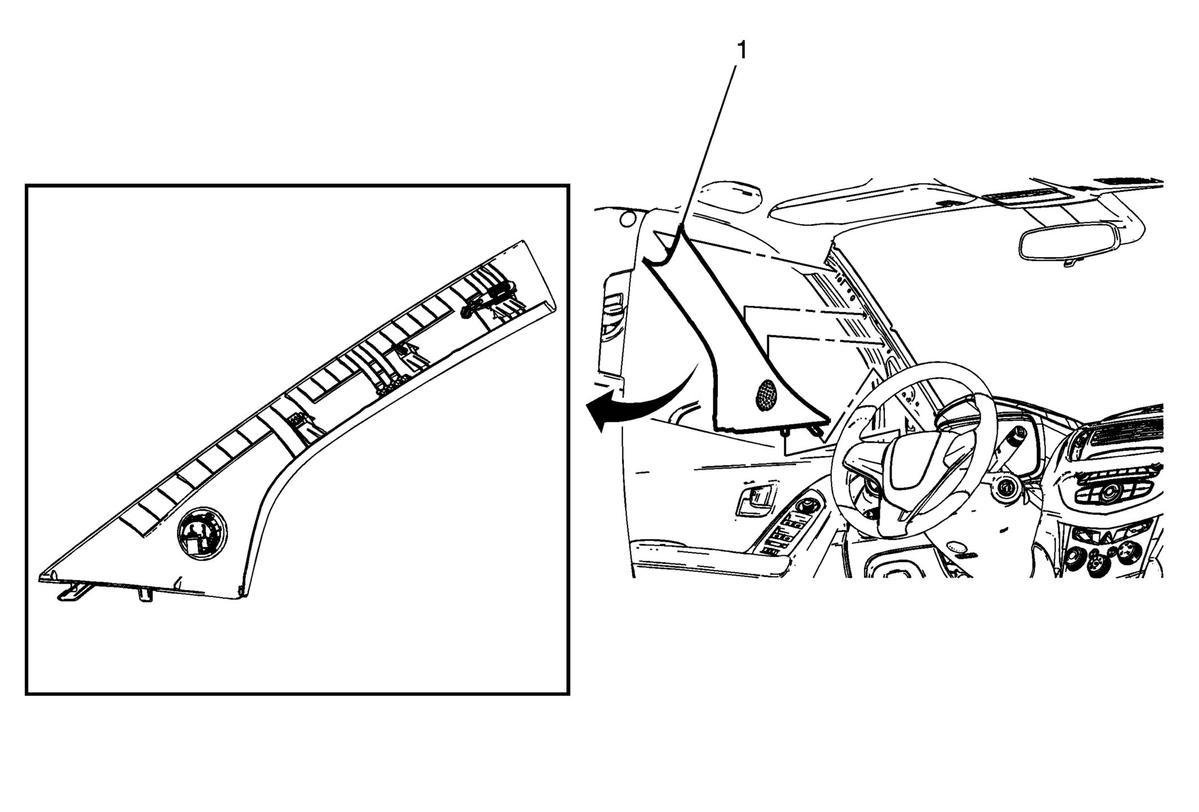

    15. Fig 12: Windshield Garnish Molding Assembly
    GM2877813Courtesy of GENERAL MOTORS COMPANY
  15. Install the windshield garnish molding assembly (1). Refer to Windshield Garnish Molding Replacement (Trax) .
  16. Enable the SIR system. Refer to SIR Disabling and Enabling .
