Body Lock Pillar Upper Trim Panel Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

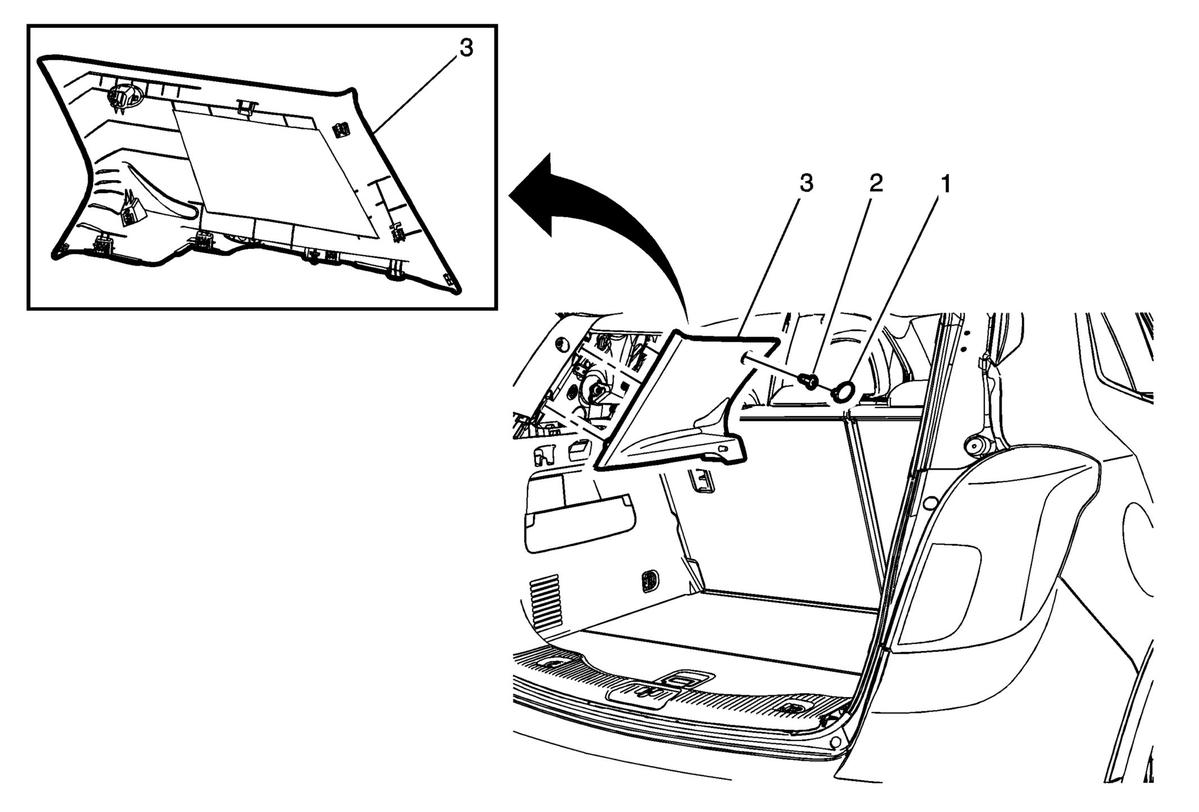

Fig 1: Body Lock Pillar Upper Trim Panel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disable the SIR system. Refer to SIR Disabling and Enabling . Remove the luggage shade. Refer to Luggage Shade Replacement (Encore) Luggage Shade Replacement (Trax) . Remove the rear seat lower anchor plate bolt on the side of the trim panel being replaced. . Refer to Rear Seat Belt Retractor Replacement .
1	Body Lock Pillar Upper Trim Panel Bolt Cap
2	Body Lock Pillar Upper Trim Panel Fastener CAUTION: Refer to Fastener Caution .
3	Body Lock Pillar Upper Trim Panel Assembly Procedure Grasp the top of the upper trim panel and gently pull the panel away from the body to release the retainers. Route the rear seat retractor side belt through the opening in the body lock pillar upper trim panel.
