Sunshade Replacement (Trax)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

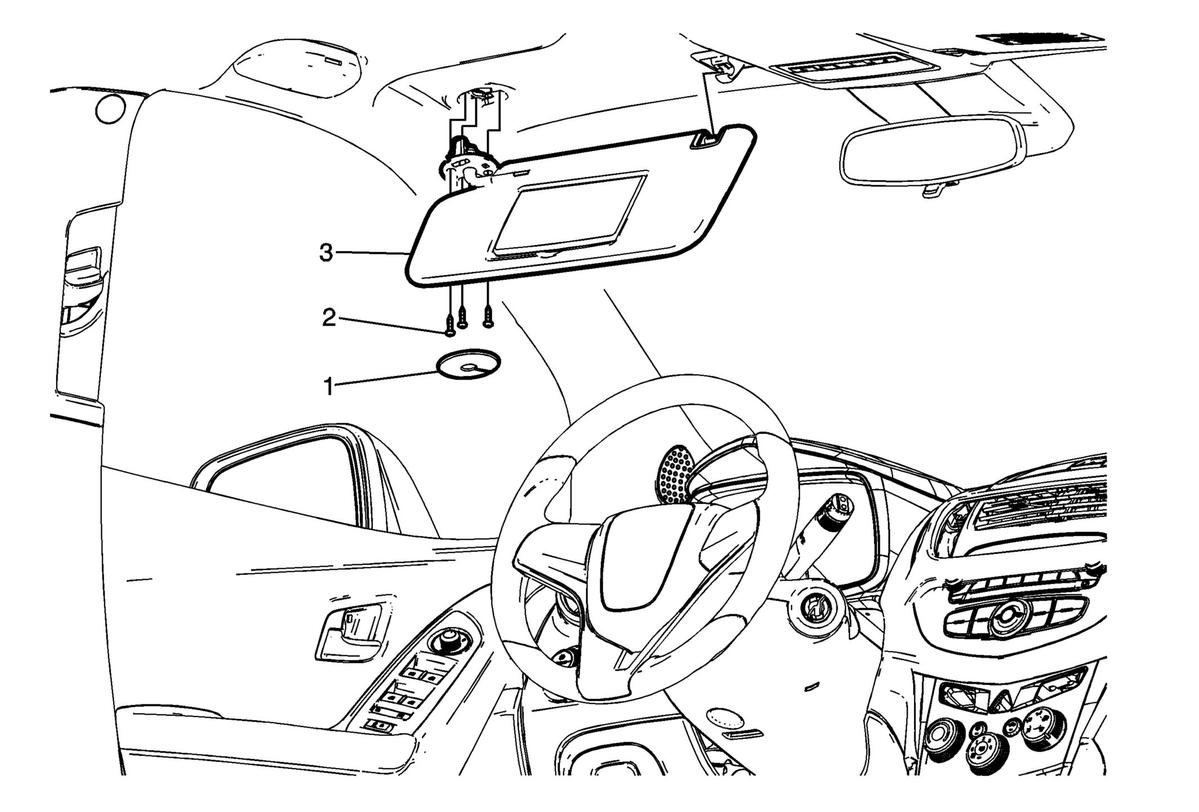

Fig 1: Sunshade Assembly (Trax)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Lower the front portion of the headliner to access the sunshade electrical connector and sunshade retainer. Refer to Headlining Trim Panel Replacement (With Sunroof, Trax)Headlining Trim Panel Replacement (Without Sunroof, Trax) .
1	Sunshade Cover
2	Sunshade Fastener (Qty: 3) CAUTION: Refer to Fastener Caution .
3	Sunshade Assembly Procedure Squeeze the tabs at the base of the sunshade assembly to detach it from the roof panel and allow the headliner with the sunshade attached to be lowered. Disconnect the electrical connector.
