Sunshade Support Replacement (Trax)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

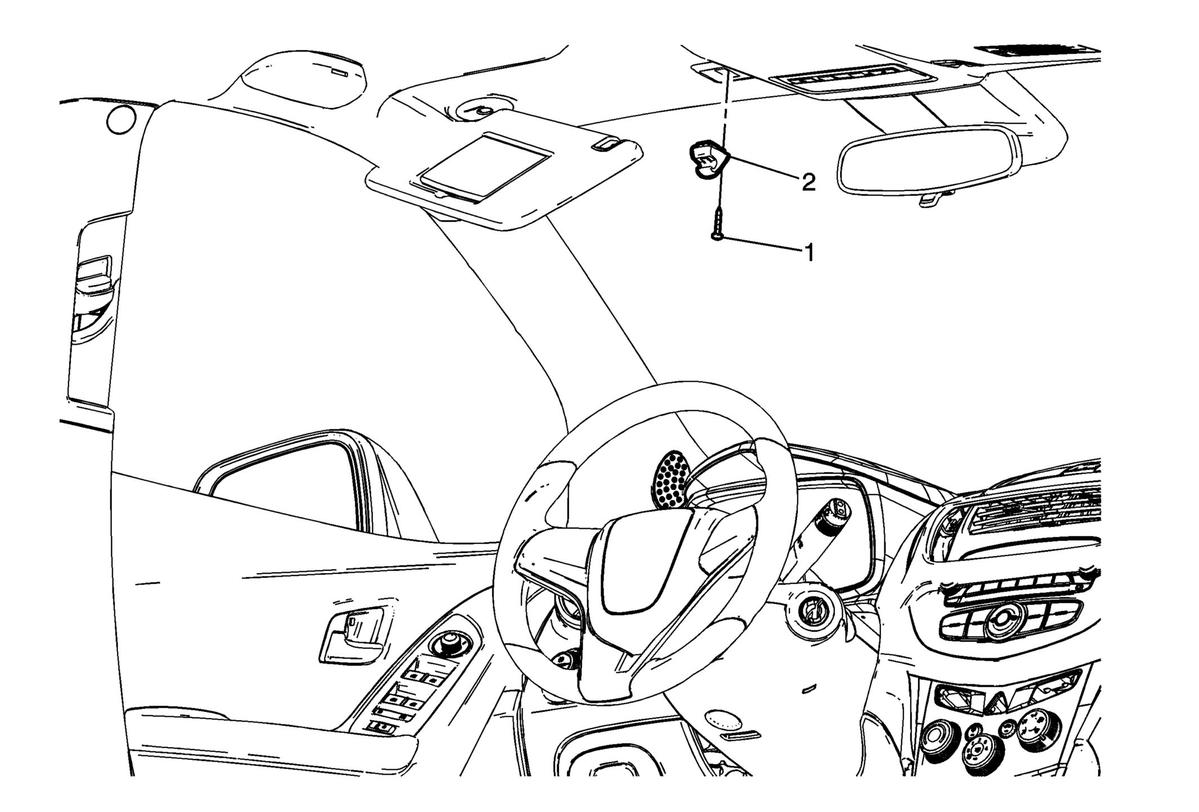

| Callout | Component Name |
|---|---|
| 1 | Sunshade Support Fastener
CAUTION:
Refer to Fastener Caution .
NOTE:
Open the cover at the bottom and push upward to access the fastener. Tighten 2.5 N.m (22 lb in) |
| 2 | Sunshade Support Assembly Procedure Unclip the sunshade from the support and reposition. |
