Rear Seat Position Center Courtesy Lamp Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

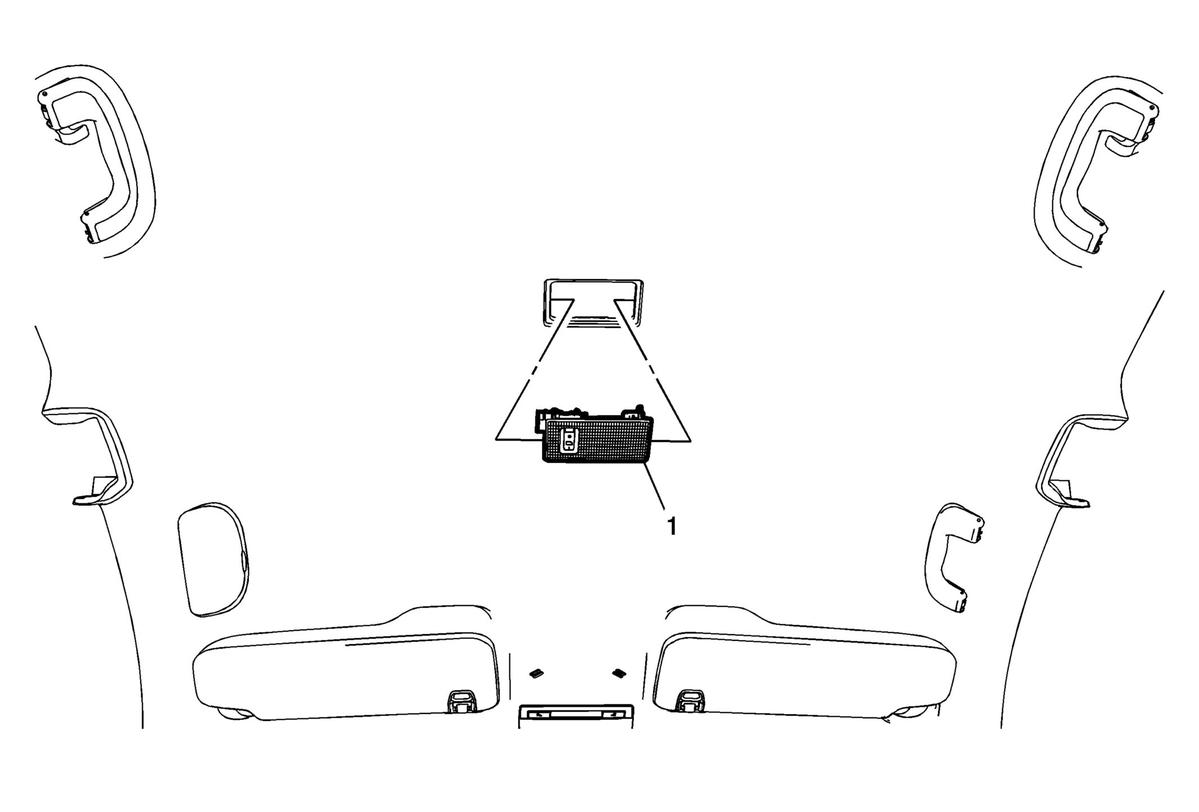

Fig 1: Rear Seat Position Center Courtesy Lamp

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Lower the headlining trim panel to access the lamp and connector. Refer to Headlining Trim Panel Replacement (Without Sunroof, Encore)Headlining Trim Panel Replacement (With Sunroof, Encore)Headlining Trim Panel Replacement (With Sunroof, Trax)Headlining Trim Panel Replacement (Without Sunroof, Trax) .
1	Rear Seat Position Center Courtesy Lamp Procedures Release the retainer clips securing the courtesy lamp assembly to the headliner. Disconnect the electrical connections.

Callout

Component Name

Preliminary Procedure
Lower the headlining trim panel to access the lamp and connector. Refer to Headlining Trim Panel Replacement (Without Sunroof, Encore)Headlining Trim Panel Replacement (With Sunroof, Encore)Headlining Trim Panel Replacement (With Sunroof, Trax)Headlining Trim Panel Replacement (Without Sunroof, Trax) .

Rear Seat Position Center Courtesy Lamp

Procedures

Release the retainer clips securing the courtesy lamp assembly to the headliner.
Disconnect the electrical connections.
