Removal Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
  2. Remove the turbocharger. Refer to Turbocharger Replacement .
  3. Remove the intake manifold. Refer to Intake Manifold Replacement .
  4. Remove the water outlet. Refer to Water Outlet Replacement (LUJ, LUV) .
  5. Remove the camshaft position actuator solenoid valve intake and exhaust. Refer to Camshaft Position Actuator Solenoid Valve Replacement .
  6. Adjust the engine to TDC. Refer to Camshaft Timing Chain Inspection .
  7. Fig 1: Timing Chain Tensioner Plug
    GM2191145Courtesy of GENERAL MOTORS COMPANY
  8. Remove the timing chain tensioner plug (1) from the engine front cover.
  9. Fig 2: Hexagonal Wrench Rotation Direction
    GM2191147Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Remove and reinstall the EN-953-A fixing tool for this step.

  10. Install a wrench (1) on the cast hexagonal portion of the intake camshaft, rotate the camshaft toward the exhaust camshaft in order to apply tension.

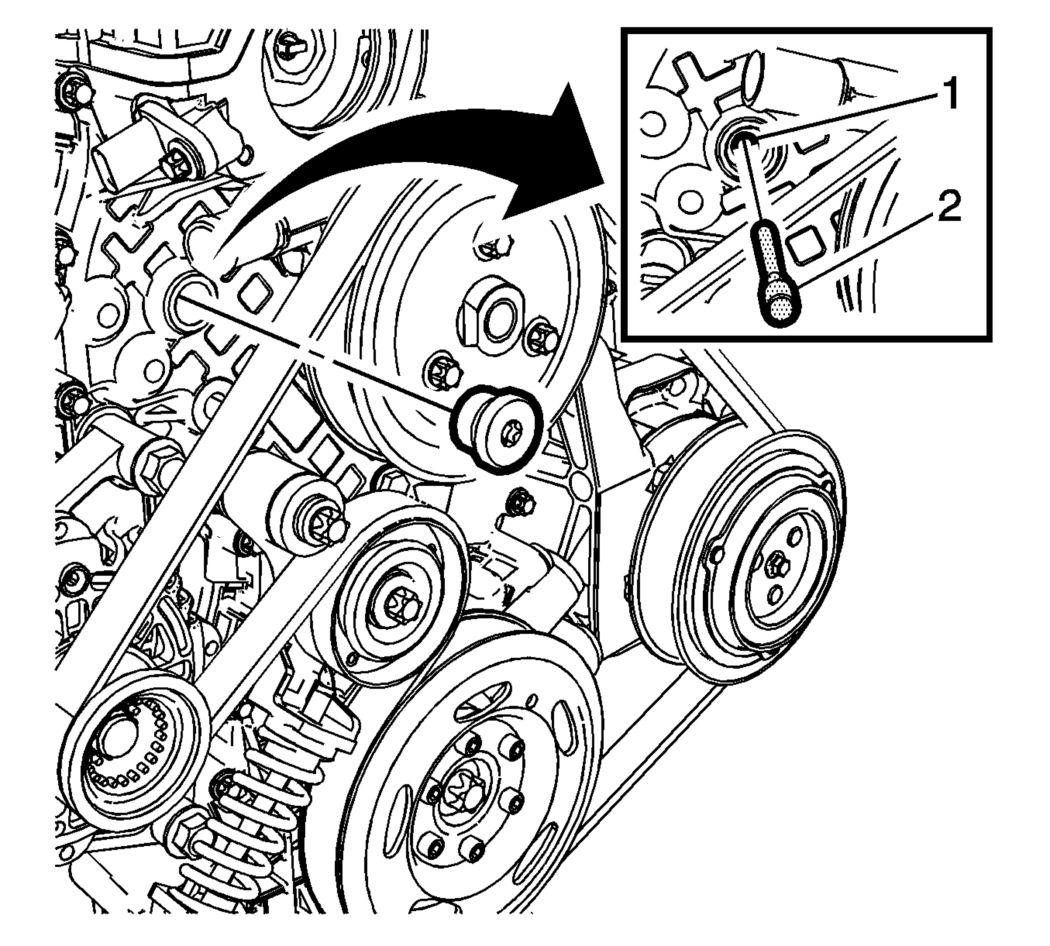

  11. Fig 3: Timing Chain Tensioner Bore And Pin
    GM2571853Courtesy of GENERAL MOTORS COMPANY
  12. Install EN-955  pin (2) to the timing chain tensioner bore (1) to secure it in place.
  13. Remove the wrench from intake camshaft.
  14. Fig 4: Upper Timing Chain Guide And Bolts
    GM2190676Courtesy of GENERAL MOTORS COMPANY
  15. Remove the upper timing chain guide bolts (1).
  16. Remove the upper timing chain guide (2).
  17. Fig 5: Intake Camshaft Sprocket Bolt And Hexagonal Wrench
    GM2191371Courtesy of GENERAL MOTORS COMPANY
  18. Loosen the intake camshaft sprocket bolt (2) while holding up the hexagon of the intake camshaft with a wrench (1).
  19. Loosen the exhaust camshaft sprocket bolt while holding up the hexagon of the exhaust camshaft with a wrench.
  20. Fig 6: Camshaft Position Exciter Wheels And Camshaft Sprocket Bolts
    GM2191382Courtesy of GENERAL MOTORS COMPANY
  21. Remove and DISCARD the camshaft sprocket bolts (2) and the camshaft position exciter wheels (1).
  22. Remove the both camshaft position sensors. Refer to Camshaft Position Sensor Replacement .
  23. Fig 7: Timing Chain And Camshaft Sprockets
    GM2191378Courtesy of GENERAL MOTORS COMPANY
  24. Remove the camshaft sprockets (2) and timing chain (1) as one unit.
  25. Allow the camshaft sprockets (2) and timing chain (1) rest on the front cover. Do NOT remove sprockets or chain.
  26. Install the engine support fixture. Refer to Engine Support Fixture .
  27. Remove the engine mount bracket. Refer Engine Mount Bracket Replacement - Right Side .
  28. Remove the drive belt. Refer to Drive Belt Replacement .
  29. Remove the water pump pulley. Refer to Water Pump Pulley Replacement (LUJ, LUV)Water Pump Pulley Replacement (2H0) .
  30. Fig 8: Engine Front Cover Bolts And Water Pump Bolts
    GM2191417Courtesy of GENERAL MOTORS COMPANY
  31. Remove 5 engine front cover bolts (1, 2).
  32. Remove 3 water pump bolts (3).
  33. Install engine mount bracket. Refer to Engine Mount Bracket Replacement - Right Side .
  34. Install engine mount. Refer to Engine Mount Replacement - Right Side .
  35. Remove engine support fixture. Refer Engine Support Fixture .
  36. Fig 9: Cylinder Head Bolts Loosening Sequence
    GM2190736Courtesy of GENERAL MOTORS COMPANY
  37. Loosen the 12 cylinder head bolts in the sequence as shown above. Use the following procedure:
    • First pass: Loosen the cylinder head bolts 90 degrees.
    • Final pass: Loosen the cylinder head bolts 180 degrees.
  38. Fig 10: Cylinder Head, Gasket, Bolts And Guide Sleeves
    GM2190737Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Do not damage the guide sleeves (4, 5).

  39. Remove and DISCARD the 12 cylinder head bolts (1).
  40. With the aid of an assistant, lift the timing chain side of the cylinder head assembly slightly in direction of the transmission.
  41. Remove the cylinder head (2).
  42. Remove the cylinder head gasket (3) and discard the gasket.

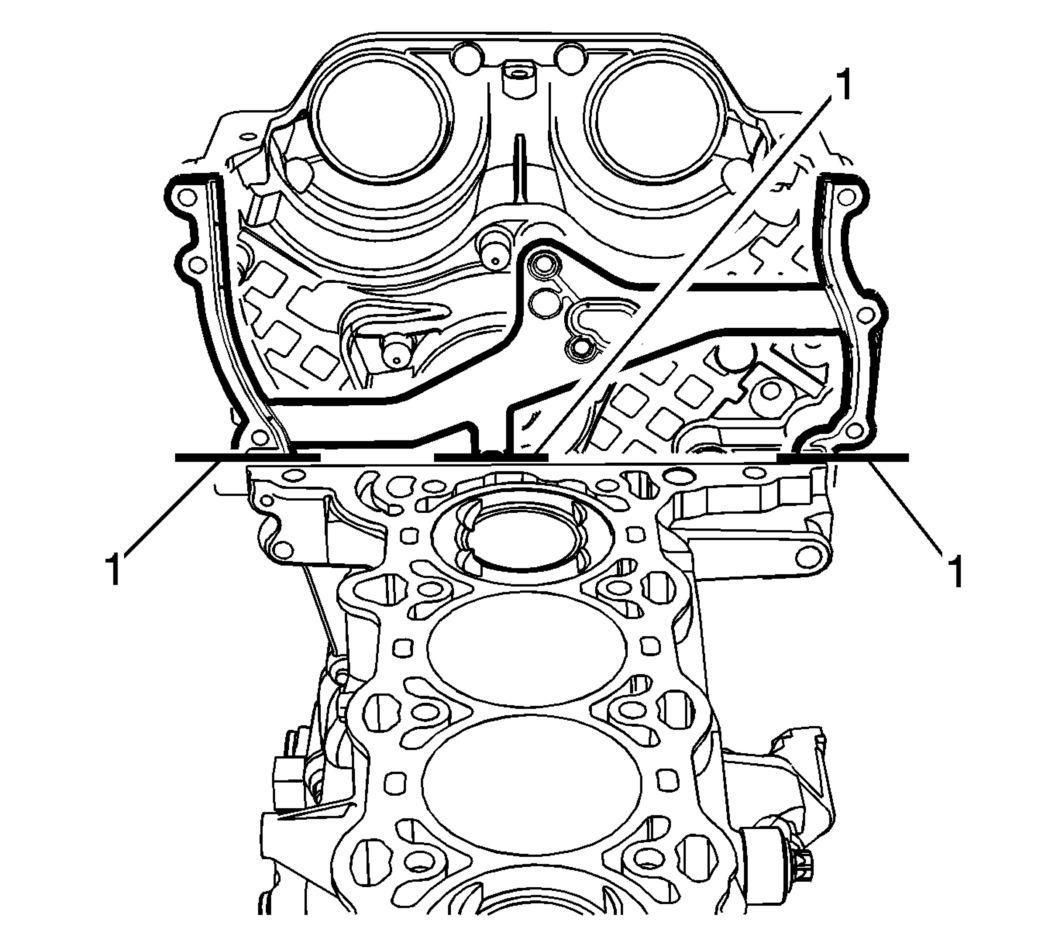

  43. Fig 11: Top Third Of Engine Front Cover Gasket
    GM2421387Courtesy of GENERAL MOTORS COMPANY
  44. With the cylinder head out of vehicle, bend the top third of the engine front cover gasket (1) back and forth until snaps off at the breaking point.
  45. Remove the assembly parts from cylinder head
  46. For disassembly of the cylinder head. Refer to Cylinder Head Disassemble .
  47. Clean and inspect the cylinder head. Refer to Cylinder Head Cleaning and Inspection .
  48. Transfer parts as necessary.
