Engine Mount Bracket Replacement - Right Side

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

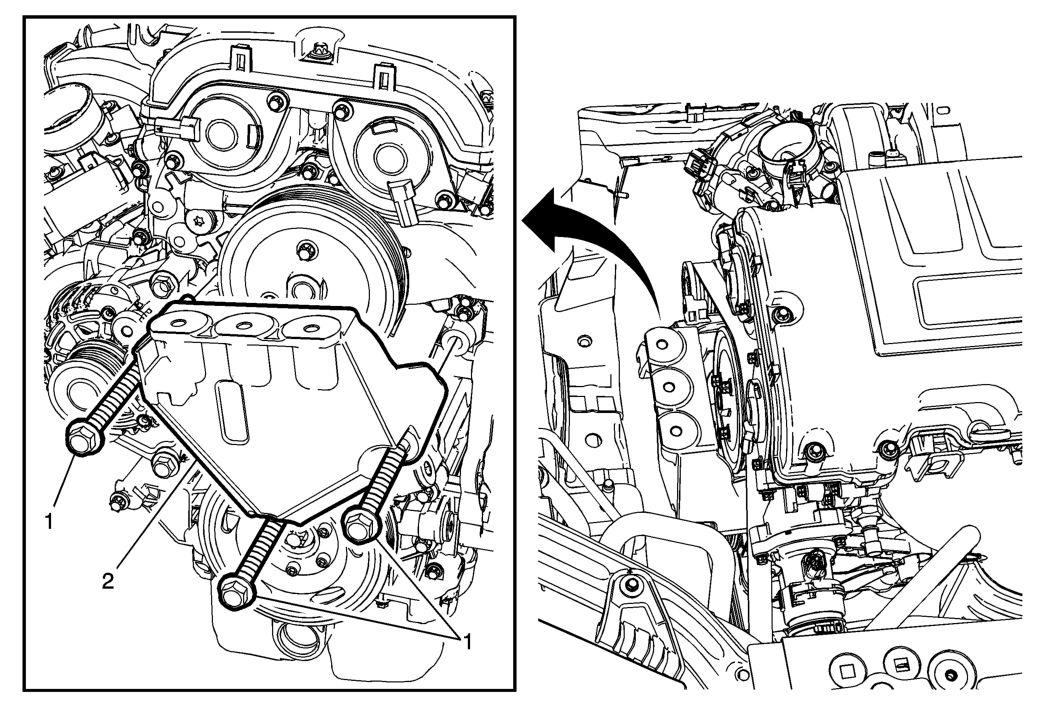

Fig 1: Engine Mount Bracket - Right Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the engine mount. Refer to Engine Mount Replacement - Right Side . Remove the front wheelhouse front liner if necessary. Refer to Front Wheelhouse Liner Replacement (Chevrolet)Front Wheelhouse Liner Replacement (Buick) .
1	Engine Mount Bracket Fastener (Qty: 3) CAUTION: This component uses torque-to-yield bolts. When servicing this component do not reuse the bolts, New torque-to-yield bolts must be installed. Reusing used torque-to-yield bolts will not provide proper bolt torque and clamp load. Failure to install NEW torque-to-yield bolts may lead to engine damage. CAUTION: Refer to Fastener Caution . Procedure Raise and lower the engine as necessary to access the bolts. Tighten 62 N.m (46 lb ft)
2	Engine Mount Bracket

Callout

Component Name

Preliminary Procedures

Remove the engine mount. Refer to Engine Mount Replacement - Right Side .
Remove the front wheelhouse front liner if necessary. Refer to Front Wheelhouse Liner Replacement (Chevrolet)Front Wheelhouse Liner Replacement (Buick) .

Engine Mount Bracket Fastener (Qty: 3)

CAUTION:

This component uses torque-to-yield bolts. When servicing this component do not reuse the bolts, New torque-to-yield bolts must be installed. Reusing used torque-to-yield bolts will not provide proper bolt torque and clamp load. Failure to install NEW torque-to-yield bolts may lead to engine damage.

CAUTION:

Refer to Fastener Caution .

Procedure
Raise and lower the engine as necessary to access the bolts.
Tighten
62 N.m (46 lb ft)

Engine Mount Bracket
