Engine Mount Replacement - Right Side

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

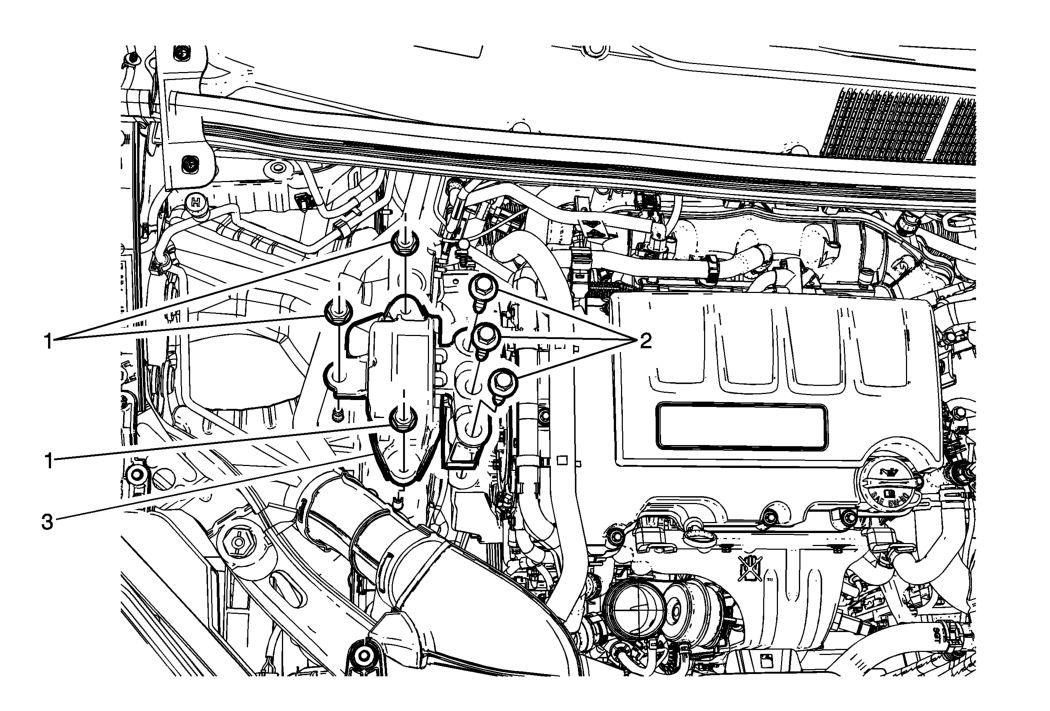

Fig 1: Engine Mount - Right Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement . Install the engine support fixture. Refer to Engine Support Fixture . Prior to removing the mount, mark the mount location using spray paint or a marker for correct positioning during installation.
1	Engine Mount Nut (Qty: 3) Tighten 62 N.m (46 lb ft)
2	Engine Mount Bracket to Mount Bolt (Qty: 3) Procedure Ensure to use a NEW bolt whenever the mount is removed. . Tighten 50 N.m+ 60° to 75° (37 lb ft + 60° to 75°) Special Tools EN-470-B Angular Torque Wrench For equivalent regional tools, refer to Special Tools
3	Engine Mount
