Water Pump Pulley Replacement (LUV)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

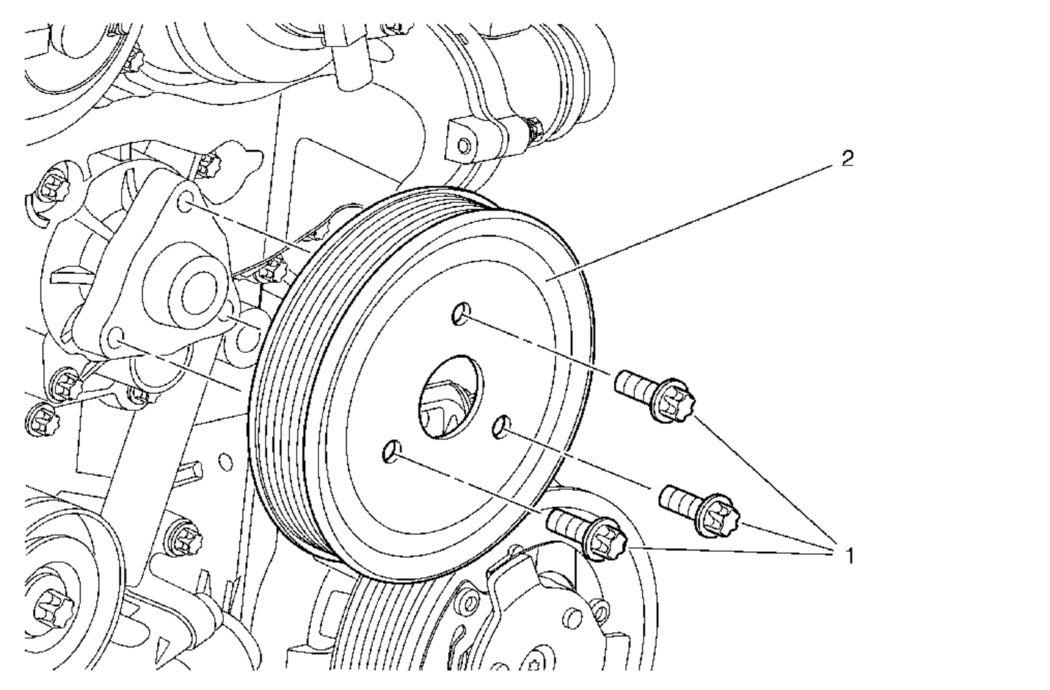

Fig 1: Water Pump Pulley (LUV)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the right engine mount bracket. Refer to Engine Mount Bracket Replacement - Right Side . Remove the drive belt. Refer to Drive Belt Replacement .
1	Water Pump Pulley Fastener CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Water Pump Pulley

Callout

Component Name

Preliminary Procedure

Remove the right engine mount bracket. Refer to Engine Mount Bracket Replacement - Right Side .
Remove the drive belt. Refer to Drive Belt Replacement .

Water Pump Pulley Fastener

CAUTION:

Refer to Fastener Caution .

Tighten
22 N.m (16 lb ft)

Water Pump Pulley
