Spark Plug Replacement
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the ignition coil. Refer to Ignition Coil Replacement . |
|

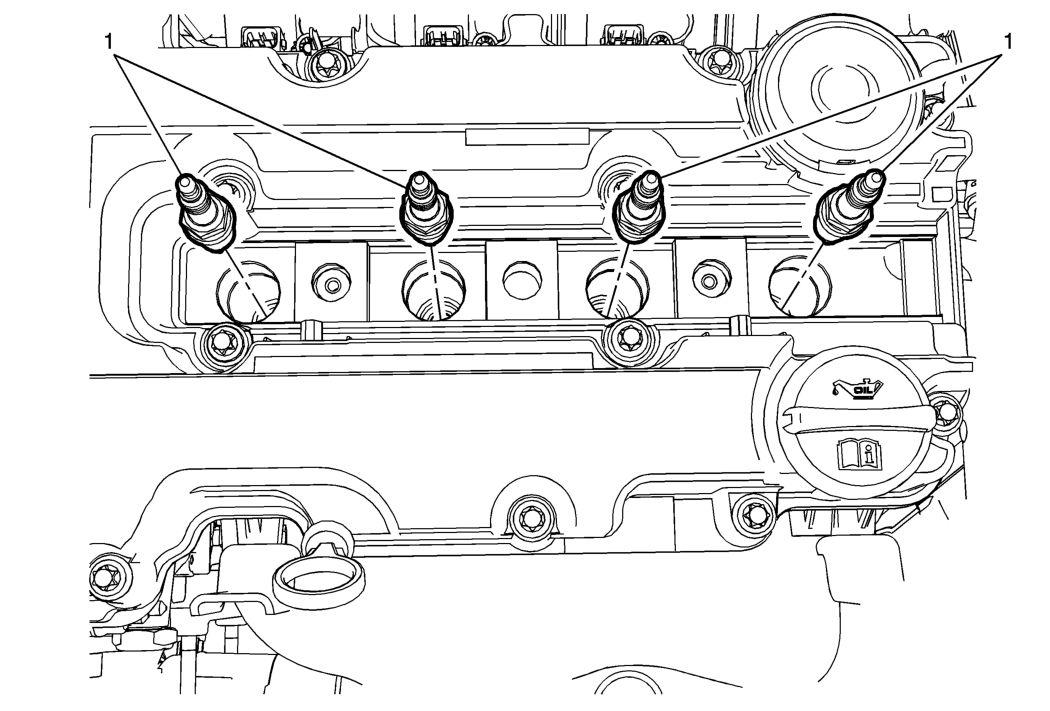

| 1 | Spark Plugs
CAUTION:
Refer to Component Fastener Tightening Caution . Tighten 25 N.m (18 lb ft) |
