Front Fender Replacement

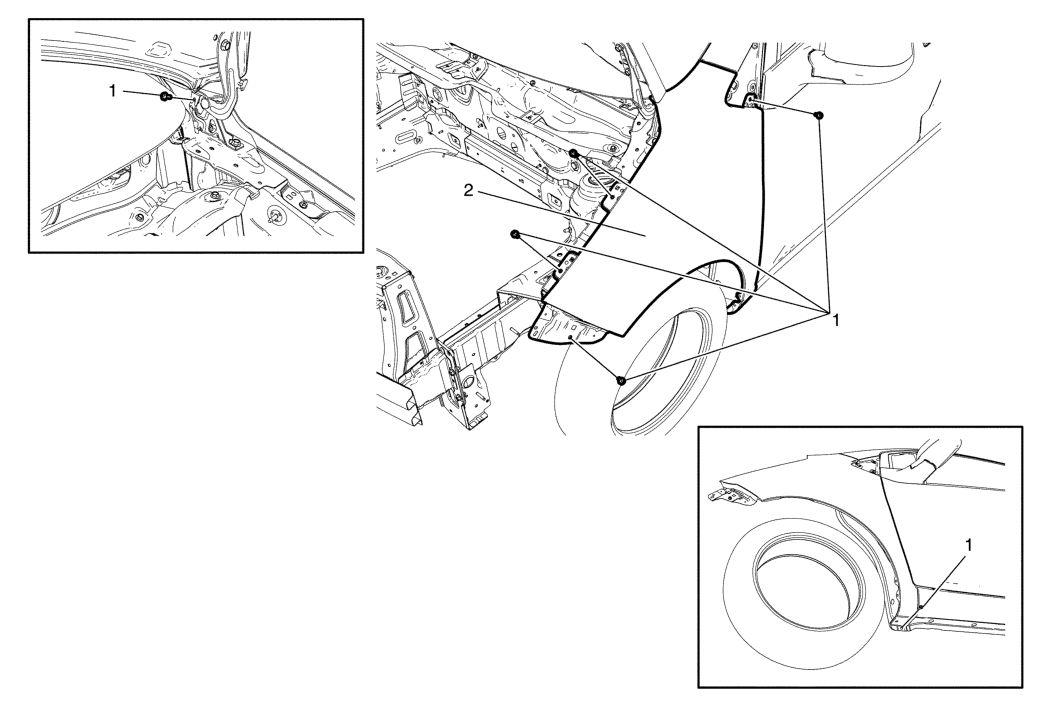

Fig 1: Front Fender
GM2309113Courtesy of GENERAL MOTORS COMPANY
Front Fender Replacement

Callout Component Name

Preliminary Procedure

  1. Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
  2. Remove the headlamp. Refer to Headlamp Replacement .
  3. Remove front bumper fascia guide. Refer to Front Bumper Fascia Guide Replacement .
  4. Remove the wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
  5. Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement .
1 Front Fender Bolt (Qty: 6)
CAUTION:

Refer to Fastener Caution .


Tighten
7.5 N.m (66 lb in)
2 Front Fender
