Front Bumper Fascia Replacement

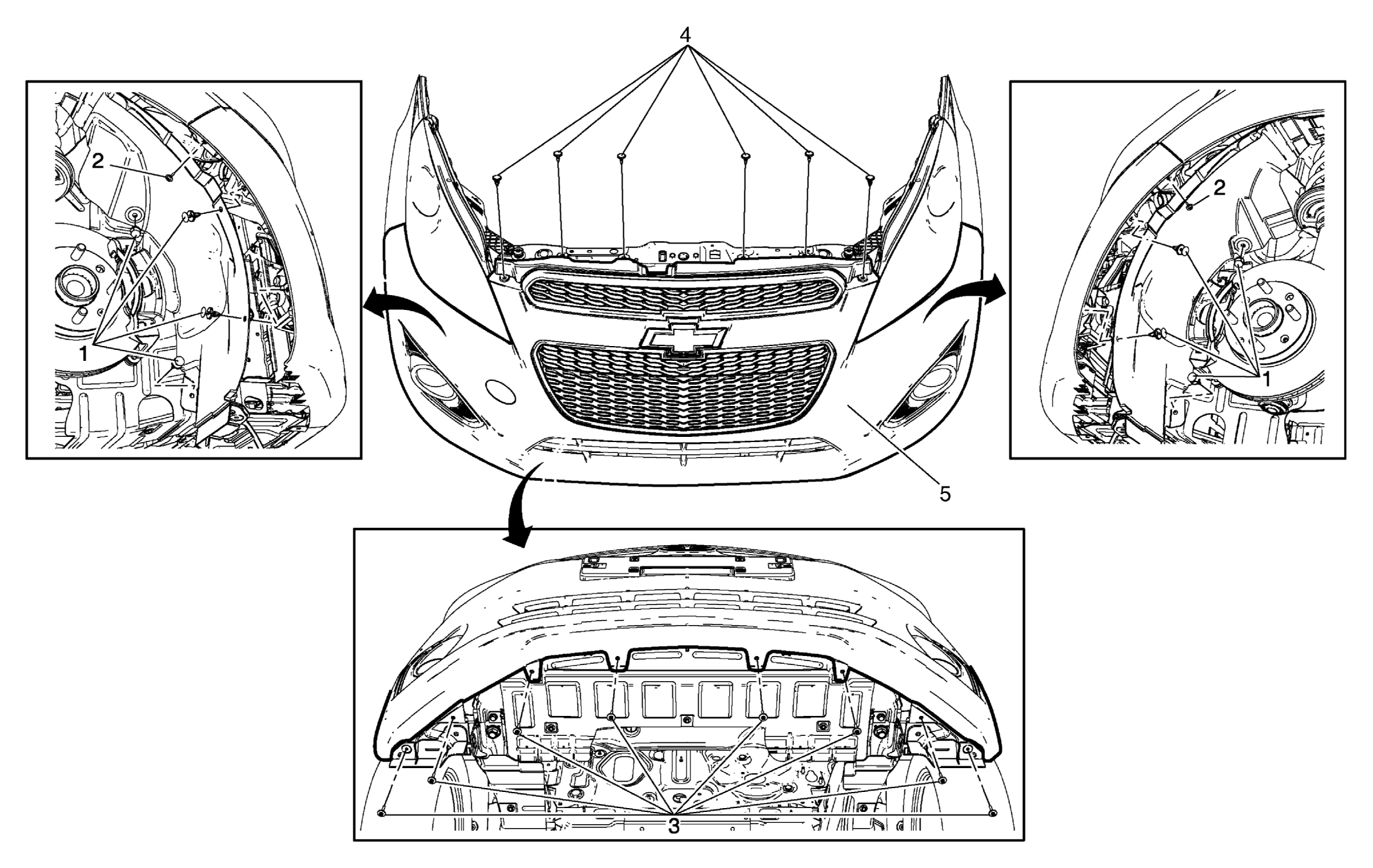

Fig 1: Front Bumper Fascia
GM2753636Courtesy of GENERAL MOTORS COMPANY
Front Bumper Fascia Replacement

Callout Component Name
1 Front Wheelhouse Liner Retainer (Qty: 8)
2 Front Bumper Fascia Side Screw (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 (22 lb in)
3 Front Bumper Fascia Screw (Qty: 8)
Tighten
1.5 (13 lb in)
4 Front Bumper Fascia Retainer (Qty: 6)
5 Front Bumper Fascia

Procedure

  1. Unclip from front bumper fascia guides.
  2. Pull forward to remove the front bumper fascia.
  3. Disconnect any electrical connectors.
  4. Transfer parts as needed.
