Front Wheelhouse Liner Replacement
Front Wheelhouse Liner Replacement

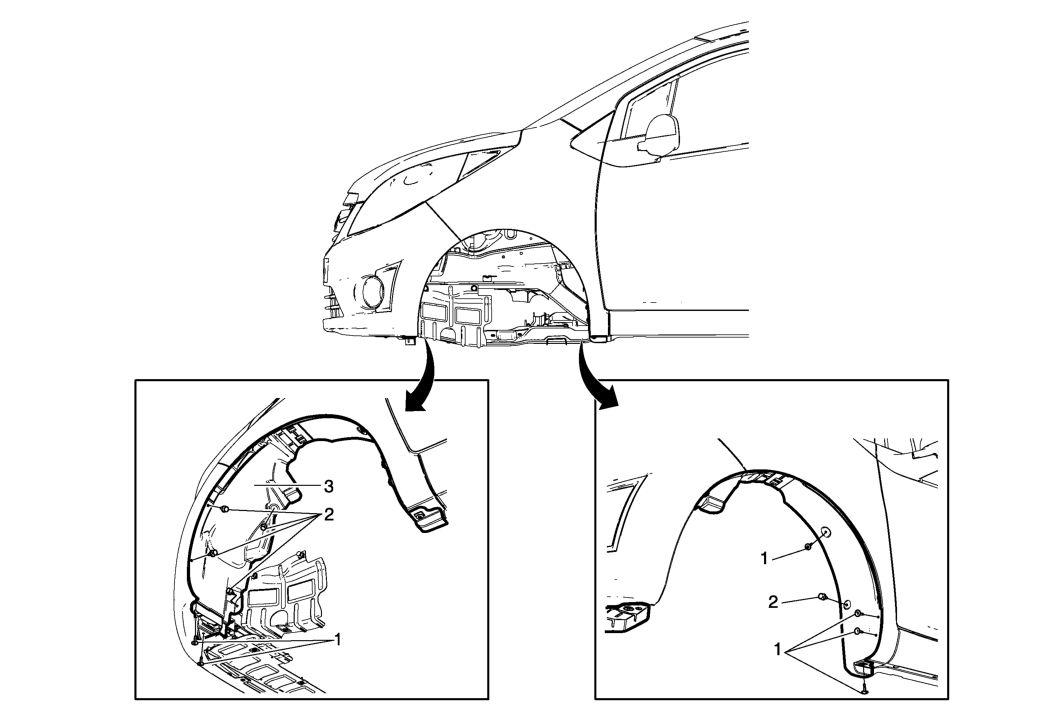

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation . |
|
| 1 | Front Wheelhouse Liner Screw (Qty: 6)
CAUTION:
Refer to Fastener Caution . Tighten 1.5 N.m (13 lb in) |
| 2 | Front Wheelhouse Liner Plastic Retainer (Qty: 5) |
| 3 | Front Wheelhouse Liner |
