Air Inlet Grille Panel Replacement

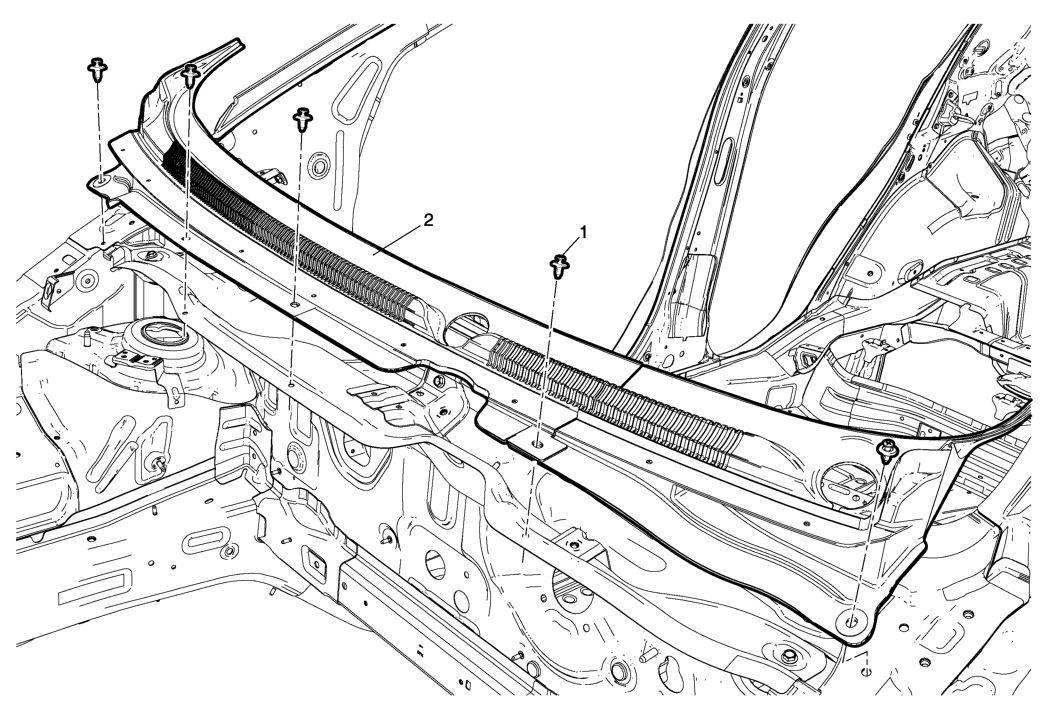

Fig 1: Air Inlet Grille Panel
GM2309171Courtesy of GENERAL MOTORS COMPANY
Air Inlet Grille Panel Replacement

Callout Component Name
Preliminary Procedure
Remove the wiper arms. Refer to Windshield Wiper Arm Replacement .
1 Air Inlet Grille Panel Clip (Qty: 5)
2 Air Inlet Grille Panel Assembly
Procedure
Remove hood rear weatherstrip.
