Headlamp Replacement

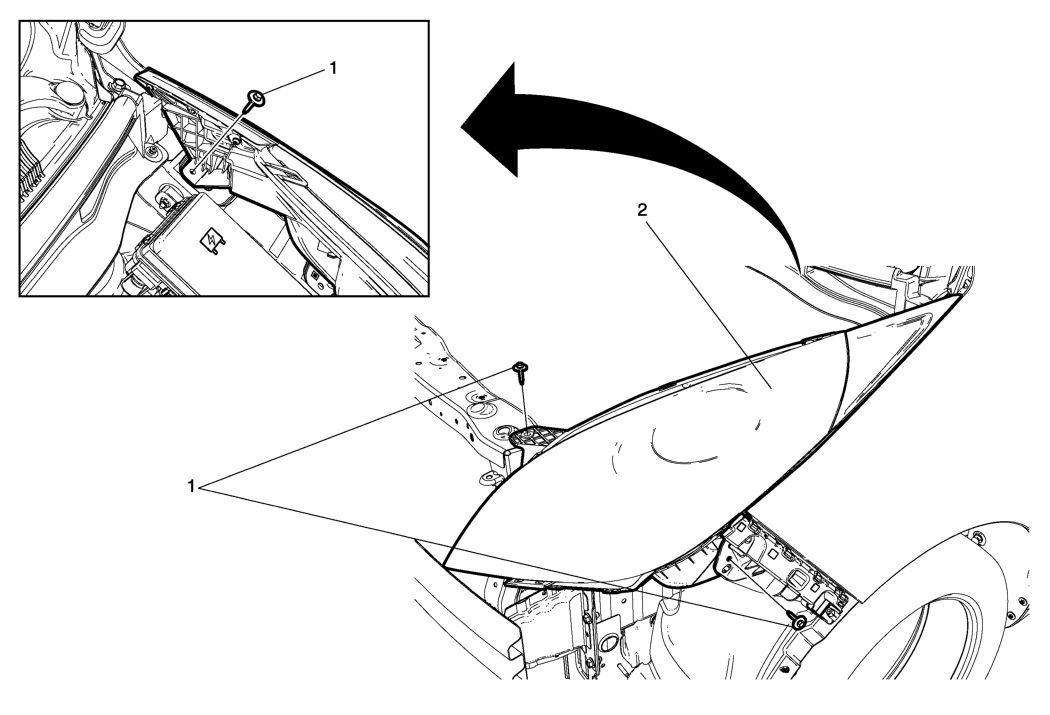

Fig 1: Headlamp

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
1	Headlamp Screw (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Headlamp Assembly Procedure Pull the headlamp assembly forward far enough to access the electrical connection. Disconnect the headlamp electrical connector from the forward lamp harness connector. Remove the headlamp assembly. Aim the headlamps after installation. Refer to Headlamp Aiming .

Callout

Component Name

Preliminary Procedure
Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .

Headlamp Screw (Qty: 3)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Headlamp Assembly

Procedure

Pull the headlamp assembly forward far enough to access the electrical connection.
Disconnect the headlamp electrical connector from the forward lamp harness connector.
Remove the headlamp assembly.
Aim the headlamps after installation. Refer to Headlamp Aiming .
