Front Bumper Fascia Guide Replacement
Front Bumper Fascia Guide Replacement

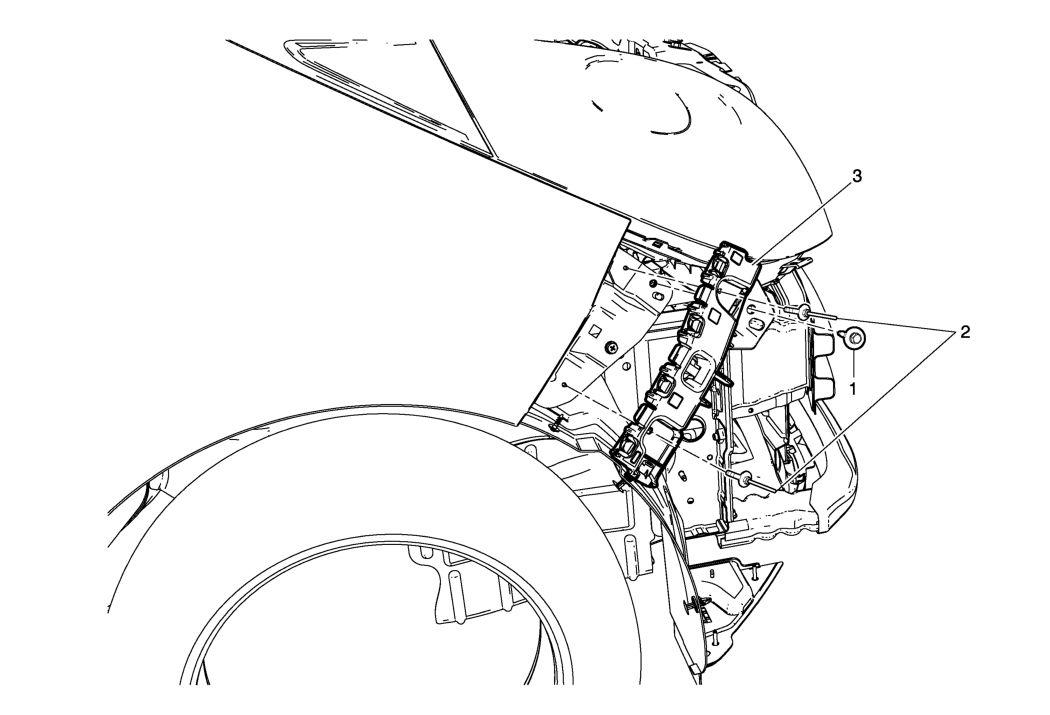

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement . |
|
| 1 | Headlamp Screw
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Front Bumper Fascia Guide Rivet (Qty: 2) Special Tools BO-594-A Hand Rivet Tongs For equivalent regional tools, refer to Special Tools . |
| 3 | Front Bumper Fascia Guide |
