Front Fender Replacement

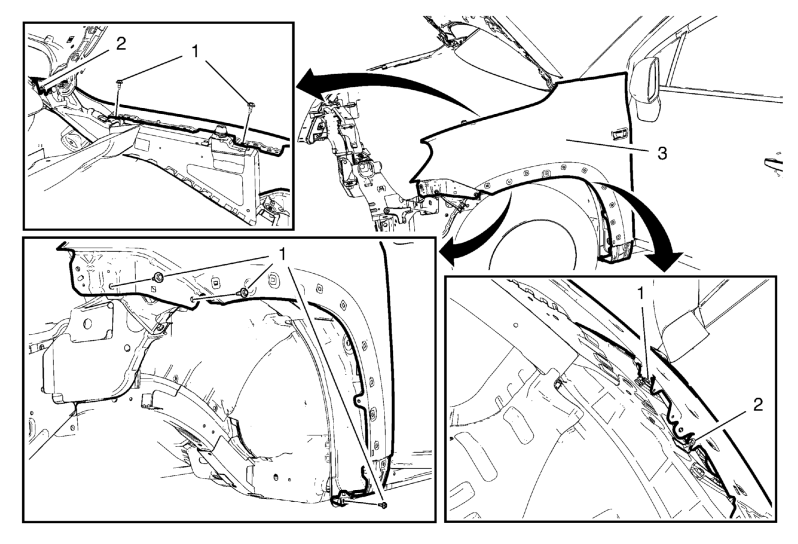

Fig 1: Front Fender

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front bumper fascia. Refer to Front Bumper Fascia Removal and Installation . Remove the front fender wheel opening molding. Refer to Front Fender Wheel Opening Molding Replacement . Remove the headlamp. Refer to Headlamp Replacement . Remove the front bumper fascia outer guide. Refer to Front Bumper Fascia Guide Replacement . Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement . Remove the front fender insulator. Refer to Front Fender Insulator Replacement . Remove the front fender shipping cover. Refer to Front Fender Shipping Cover Replacement . Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement . Loosen rocker panel molding partially. Refer to Rocker Panel Molding Replacement .
1	Front Fender Bolt (Qty: 6) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Front Fender Bolt (Qty: 2) TIP: Just loosen the bolt. Tighten 9 N.m (80 lb in)
3	Front Fender Procedure Adjust the front fender as needed. Refer to Front Side Door Adjustment , and Hood Adjustment .
