Headlamp Replacement

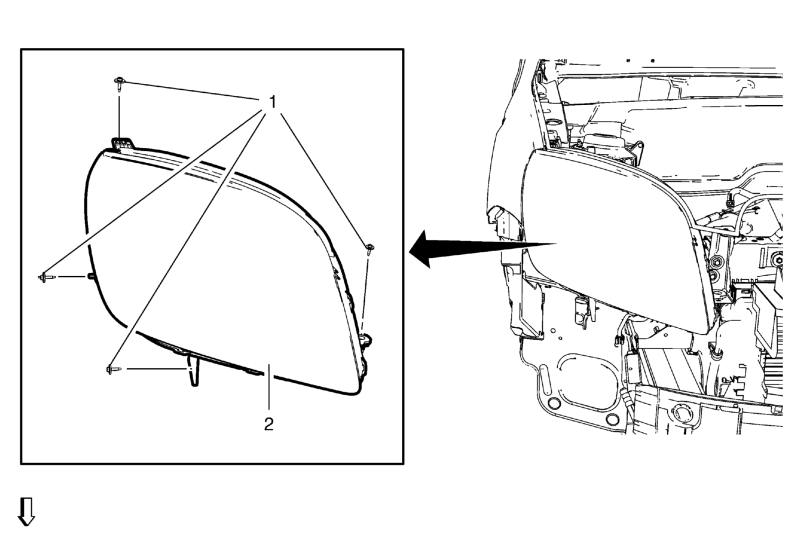

Fig 1: Headlamp & Bolts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the font bumper fascia upper support. Refer to Front Bumper Fascia Upper Support Replacement .
1	Headlamp Bolt (Qty: 4) CAUTION: Refer to Fastener Caution .
2	Headlamp Procedure Disconnect electrical connector. Replace the bulb, as needed. Aim the headlamps after installation. Refer to Headlamp Aiming .

Callout

Component Name

Preliminary Procedure
Remove the font bumper fascia upper support. Refer to Front Bumper Fascia Upper Support Replacement .

Headlamp Bolt (Qty: 4)

CAUTION:

Headlamp

Procedure
