Rocker Panel Molding Replacement

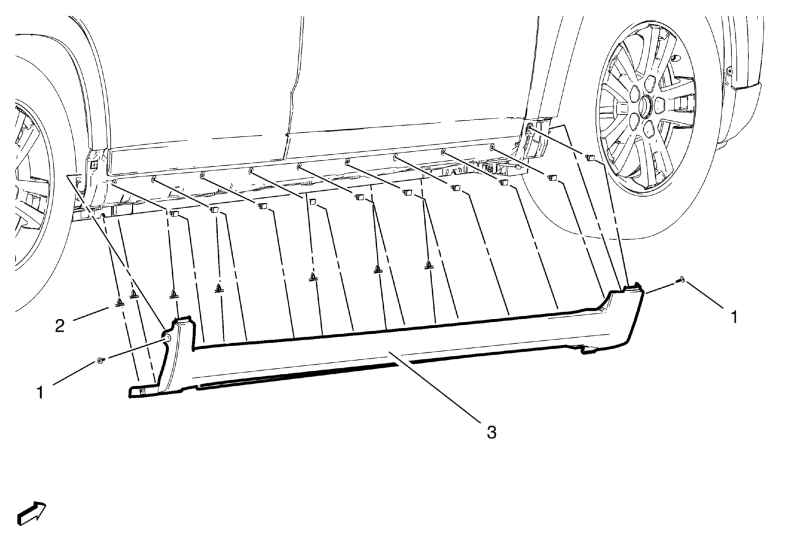

Fig 1: Rocker Panel Molding
GM2505499Courtesy of GENERAL MOTORS COMPANY
Rocker Panel Molding Replacement

Callout Component Name
1 Rocker Panel Molding Fastener (Qty: 2)
CAUTION:

Refer to Fastener Caution .
2 Rocker Panel Molding Retainer (Qty: 17)
3 Rocker Panel Molding
