Front Wheelhouse Liner Replacement
Front Wheelhouse Liner Replacement

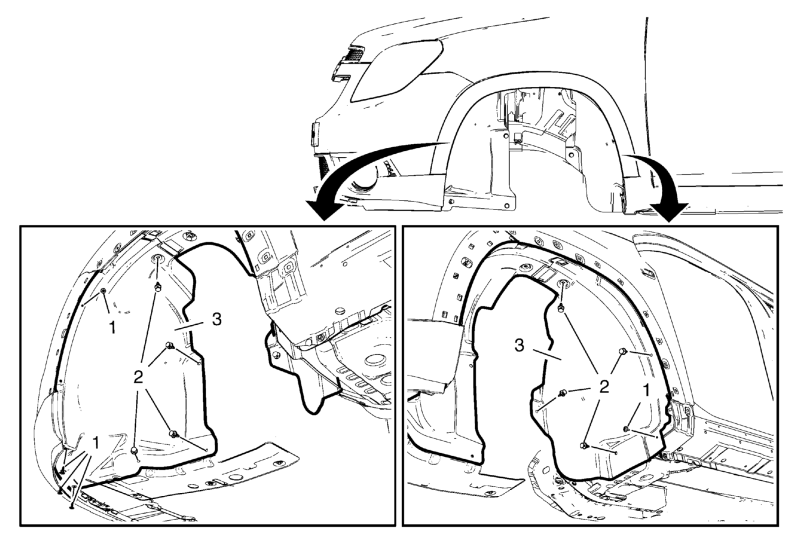

| Callout | Component Name |
|---|---|
| Preliminary Procedures Raise the vehicle on a hoist. Refer to Lifting and Jacking the Vehicle |
|
| 1 | Front Wheelhouse Liner Bolts (Qty: 5)
CAUTION:
Refer to Fastener Caution . |
| 2 | Front Wheelhouse Liner Retainers (Qty: 7) |
| 3 | Front Wheelhouse Liner |
