Front Bumper Fascia Guide Replacement

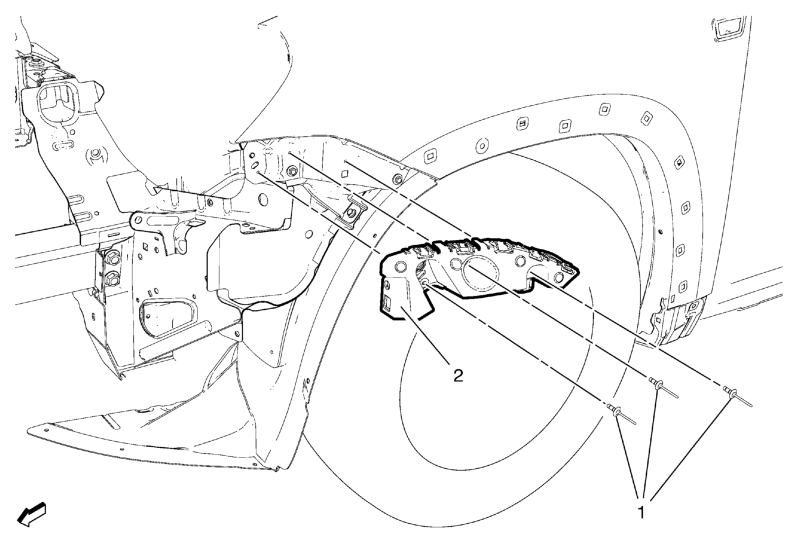

Fig 1: Front Bumper Fascia Guide

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front bumper fascia. Refer to Front Bumper Fascia Removal and Installation . Remove the front bumper fascia upper support. Refer to Front Bumper Fascia Upper Support Replacement .
1	Front Bumper Fascia Guide Rivets (Qty: 3) Special Tools BO-594-A Hand Rivet Tongs For equivalent regional tools, refer to Special Tools .
2	Front Bumper Fascia Guide

Callout

Component Name

Preliminary Procedures

Remove the front bumper fascia. Refer to Front Bumper Fascia Removal and Installation .
Remove the front bumper fascia upper support. Refer to Front Bumper Fascia Upper Support Replacement .

Front Bumper Fascia Guide Rivets (Qty: 3)
Special Tools
BO-594-A Hand Rivet Tongs
For equivalent regional tools, refer to Special Tools .

Front Bumper Fascia Guide
