Floor Panel Carpet Replacement

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

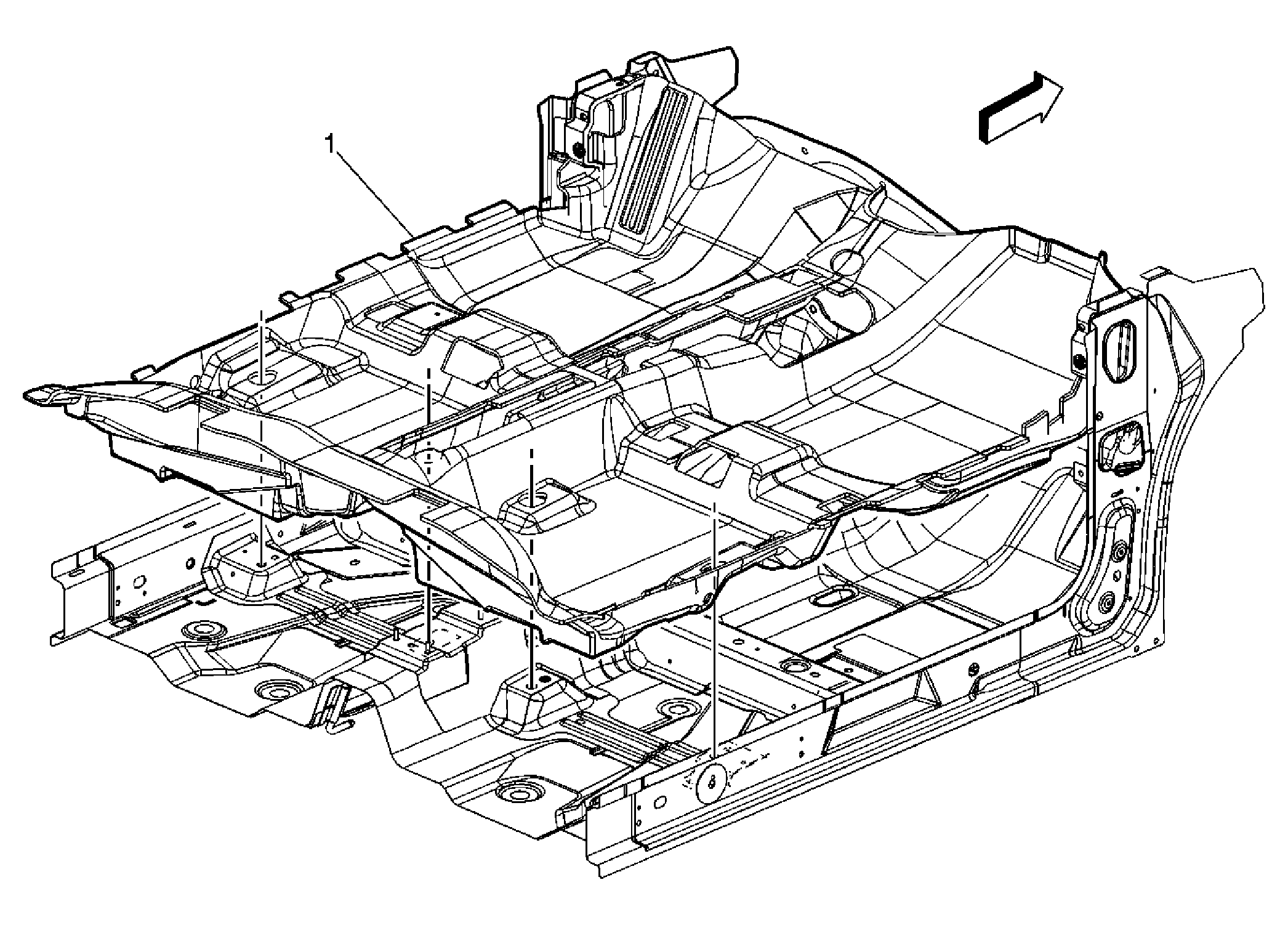

Fig 1: View Of Floor Panel Carpet Assembly
GM1544776Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedures

  1. Remove the front seats. Refer to Front Seat Replacement - Bucket .
  2. Remove the floor console. Refer to Front Floor Console Replacement .
  3. Remove the front carpet retainer. Refer to Front Side Door Opening Floor Carpet Retainer Replacement (Coupe)  or Front Side Door Opening Floor Carpet Retainer Replacement (Sedan) .
  4. Remove the rear carpet retainer, if equipped. Refer to Rear Side Door Opening Floor Carpet Retainer Replacement .
  5. Loosen the center lower pillar garnish moldings, if equipped. Refer to Center Pillar Lower Garnish Molding Replacement (Sedan) .
  6. Loosen the lower lock pillar garnish moldings, if equipped. Refer to Body Lock Pillar Garnish Lower Molding Replacement (Coupe) or Body Lock Pillar Garnish Lower Molding Replacement (Sedan) .
  7. Remove the right rear seat cushion. Refer to Rear Seat Cushion Replacement .
  8. Remove the lower front seat belt bolt.
1 Floor Panel Carpet Assembly
