Center Pillar Lower Garnish Molding Replacement (Sedan)

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

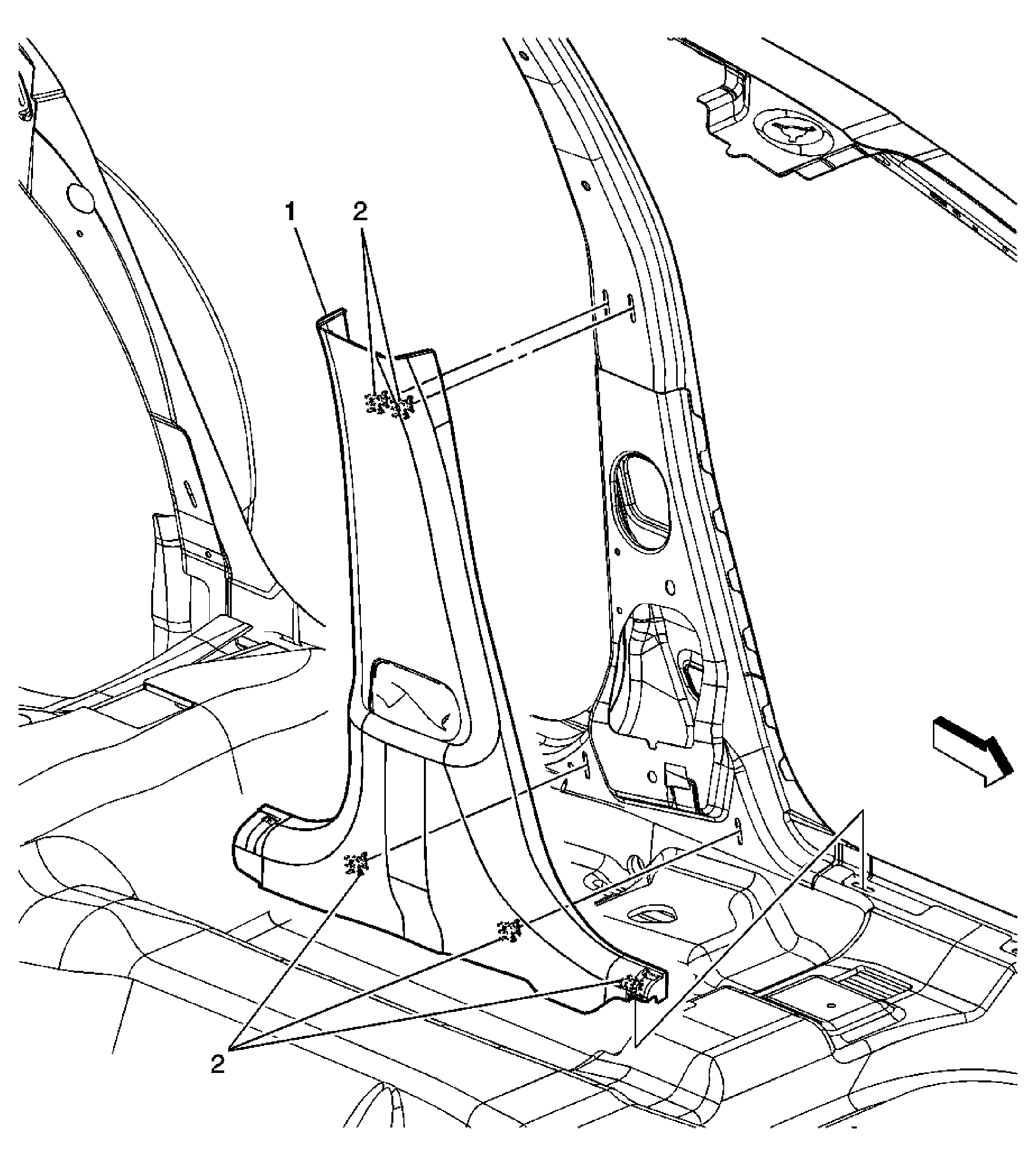

Fig 1: View Of Center Pillar Lower Garnish Molding

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the center pillar upper garnish. Refer to Center Pillar Upper Garnish Molding Replacement (Sedan) . Remove the front carpet retainer. Refer to Front Side Door Opening Floor Carpet Retainer Replacement (Coupe) or Front Side Door Opening Floor Carpet Retainer Replacement (Sedan) . Remove the rear carpet retainer. Refer to Rear Side Door Opening Floor Carpet Retainer Replacement . Position the seat in the full forward position.
1	Center Pillar Lower Panel Assembly
2	Panel Assembly Center Pillar Lower Retainer

Callout

Component Name

Preliminary Procedures

Remove the center pillar upper garnish. Refer to Center Pillar Upper Garnish Molding Replacement (Sedan) .
Remove the front carpet retainer. Refer to Front Side Door Opening Floor Carpet Retainer Replacement (Coupe) or Front Side Door Opening Floor Carpet Retainer Replacement (Sedan) .
Remove the rear carpet retainer. Refer to Rear Side Door Opening Floor Carpet Retainer Replacement .
Position the seat in the full forward position.

Center Pillar Lower Panel Assembly

Panel Assembly Center Pillar Lower Retainer
