Rear Seat Cushion Replacement

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

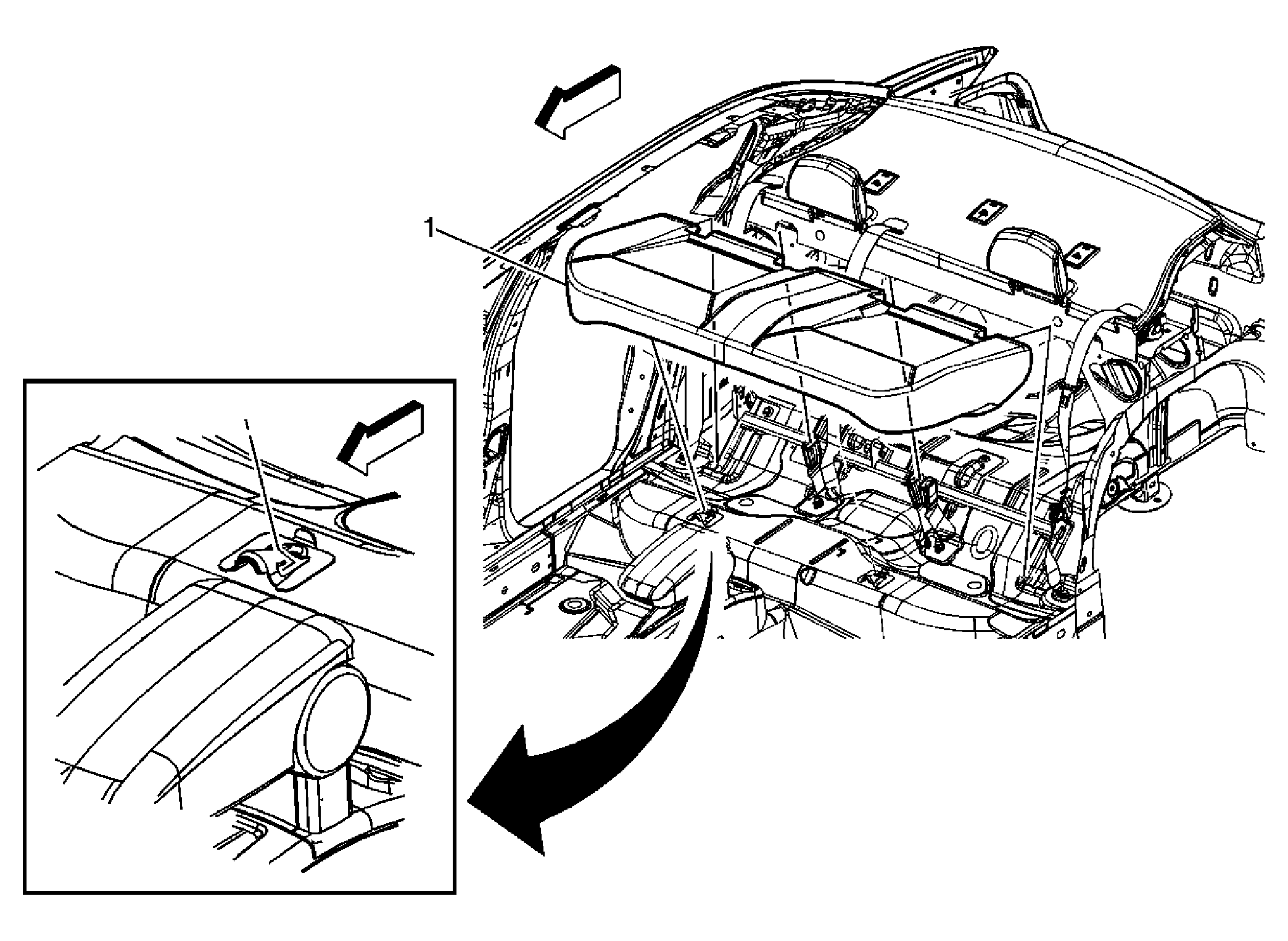

Fig 1: Rear Seat Cushion
GM1973774Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Seat Cushion
Procedure:
Push the front of the seat rearward and upward to release the seat cushion wire from the dome bracket.
