Body Lock Pillar Garnish Lower Molding Replacement (Coupe)

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

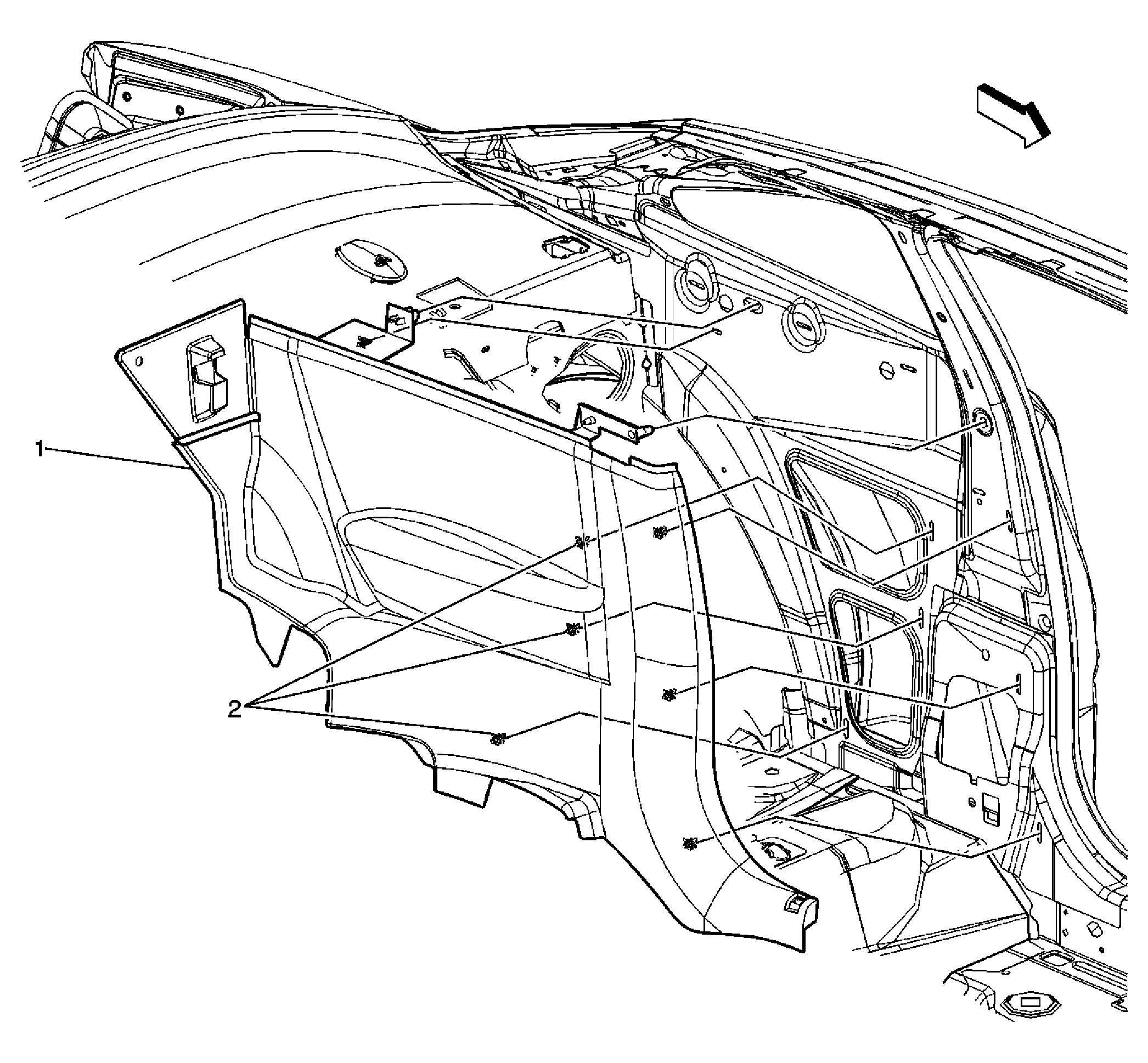

Fig 1: View Of Body Lock Pillar Garnish Lower Molding

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures: Remove the upper lock pillar garnish trim. Refer to Lock Pillar Upper Garnish Molding Replacement (Coupe) or Lock Pillar Upper Garnish Molding Replacement (Sedan) .
1	C Pillar Lower Panel Assembly
2	C Pillar Lower Retainer
