Body Lock Pillar Garnish Lower Molding Replacement (Sedan)

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

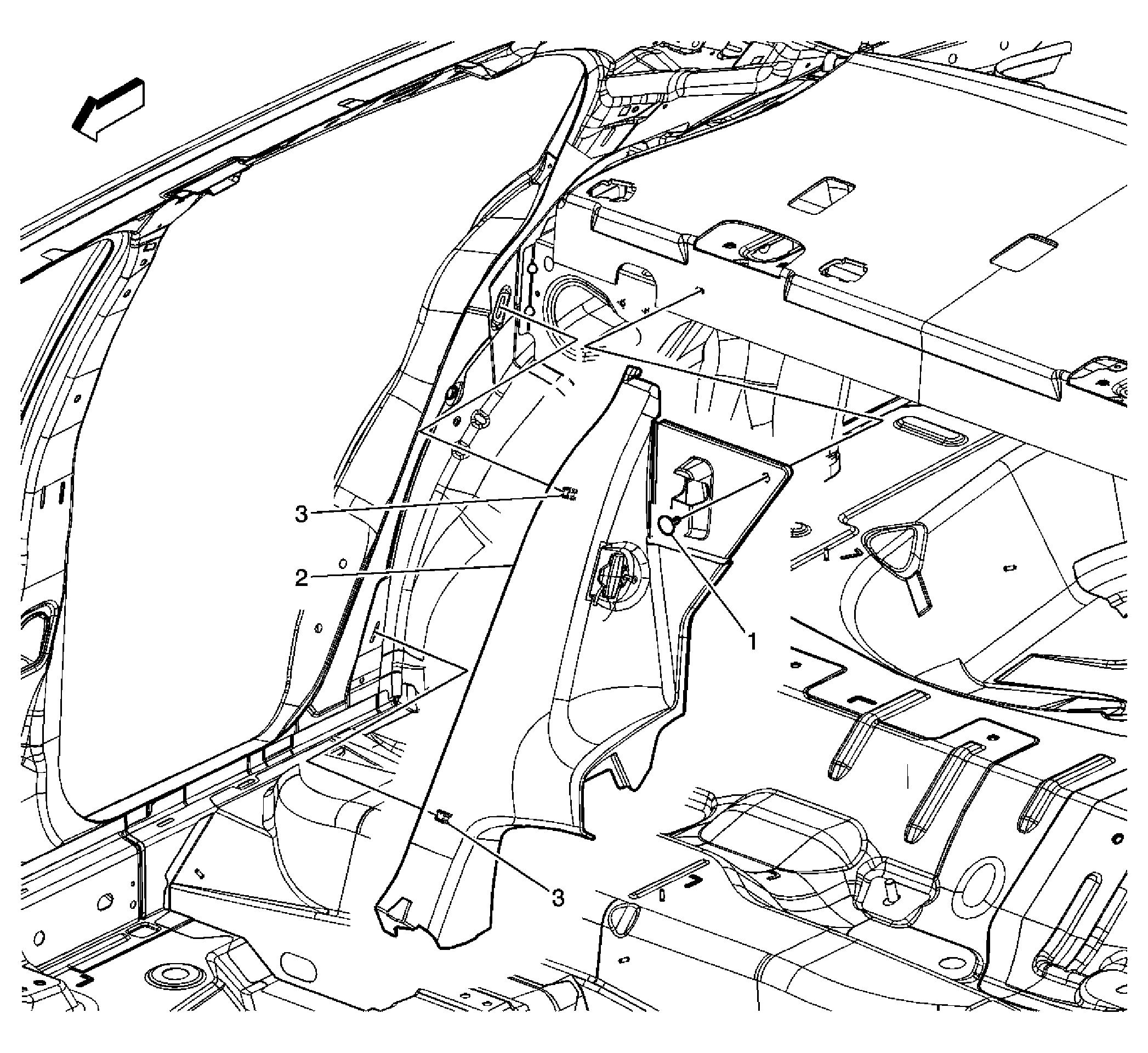

Fig 1: View Of Body Lock Pillar Garnish Lower Molding (Sedan)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the rear seat cushion. Refer to Rear Seat Cushion Replacement .
1	Lock Pillar Lower Panel Retainer
2	Lock Pillar Lower Panel Assembly
3	Lock Pillar Lower Panel Clip
