Rear Bumper Fascia Replacement (Sedan)

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

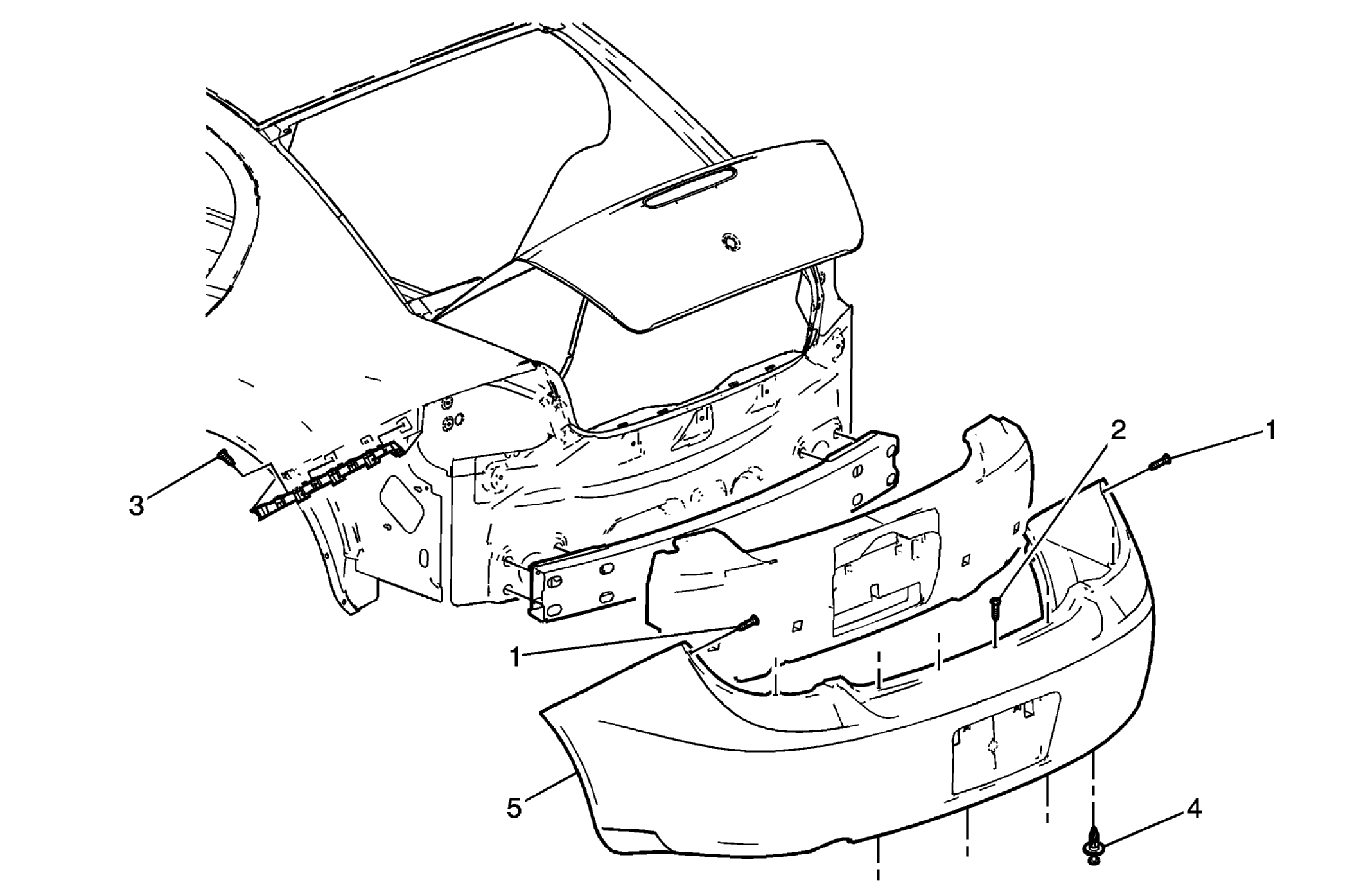

Fig 1: View Of Rear Bumper Fascia (Sedan)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the tail lamps. Refer to Tail Lamp Replacement (Chevrolet Coupe) or Tail Lamp Replacement (Chevrolet, Pontiac Sedan) or Tail Lamp Replacement (Chevrolet European) . Remove the license lamp. Refer to Rear License Plate Lamp Replacement (Pontiac G5) or Rear License Plate Lamp Replacement (Chevrolet) . Remove the rear wheel liners. Refer to Rear Wheelhouse Panel Liner Replacement .
1	Rear Bumper Fascia - Upper Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 2 N.m (18 lb in)
2	Rear Bumper Fascia - Upper Retainer (Qty: 6) Tighten: 2 N.m (18 lb in)
3	Rear Bumper Fascia Bolt (Qty: 2) Tip: Access the bolt from inside the wheel well. Tighten: 2.5 N.m (22 lb in)
4	Rear Bumper Fascia - Lower Retainer (Qty: 4)
5	Rear Bumper Fascia Procedure Pull the sides of the rear fascia at the quarter panel to release the fascia from the brackets. Disconnect the license lamp connector.
