Rear Wheelhouse Panel Liner Replacement
WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

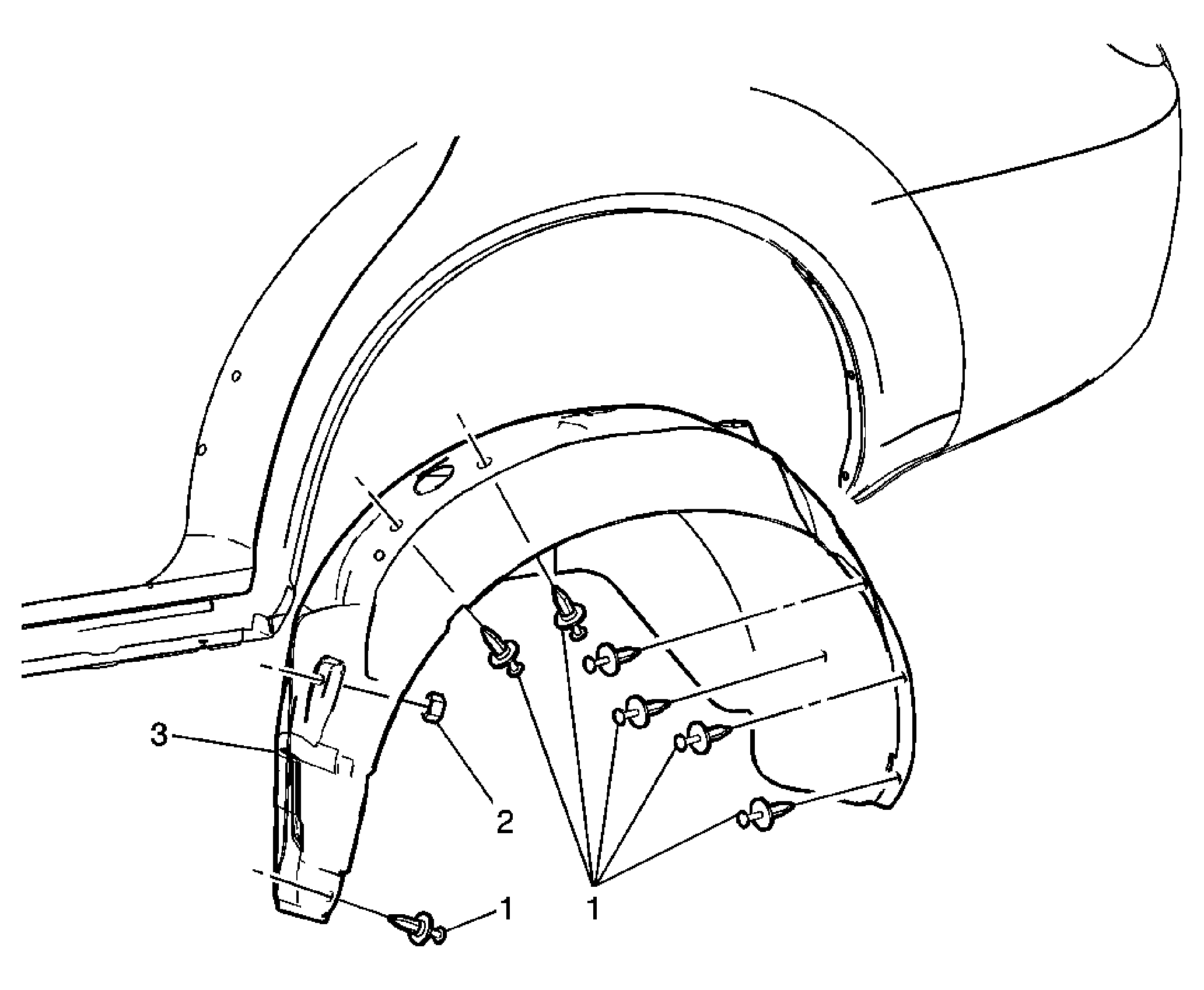

| Callout | Component Name |
|---|---|
| 1 | Rear Wheel Liner Pushpin (Qty: 7) Tip: Use a flat-bladed tool to release the pushpins from the wheel liner. |
| 2 | Rear Wheel Liner Nut
CAUTION:
Refer to Fastener Caution
.
Tighten: 10 N.m (89 lb in) |
| 3 | Rear Wheel Liner |
