Tail Lamp Replacement (Chevrolet, Pontiac Sedan)

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

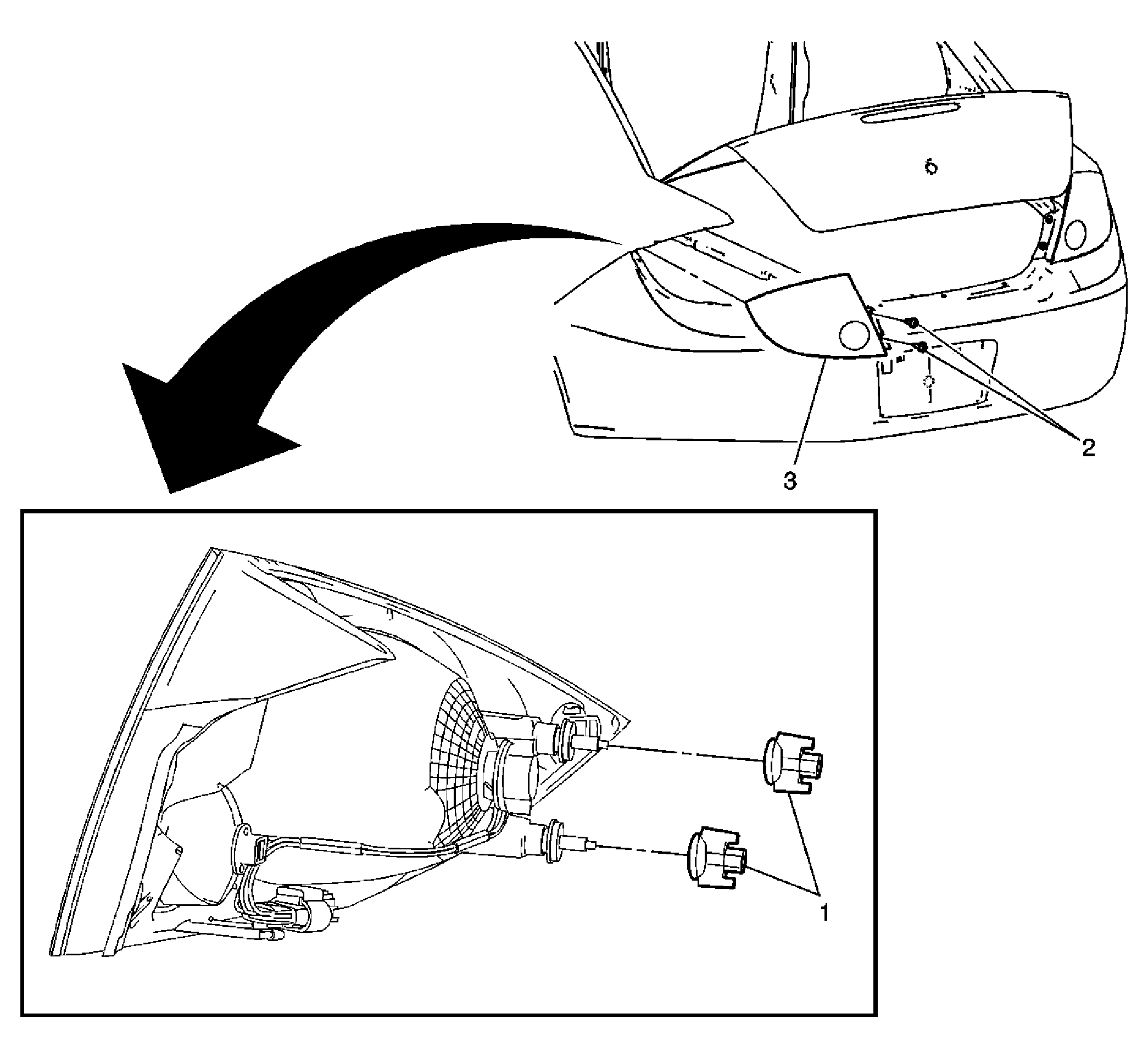

Fig 1: Tail Lamp Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Tail Lamp Nut (Qty: 2) Hand tighten the tail lamp nut only.
2	Tail Lamp Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 1.5 N.m (13 lb in)
3	Tail Lamp Assembly Procedure Pull the lamp rearward from the rear end panel extension. Disconnect the electrical connector. Remove the tail lamp assembly from the rear end panel extension.

Callout

Component Name

Tail Lamp Nut (Qty: 2)
Hand tighten the tail lamp nut only.

Tail Lamp Bolt (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten: 1.5 N.m (13 lb in)

Tail Lamp Assembly

Procedure

Pull the lamp rearward from the rear end panel extension.
Disconnect the electrical connector.
Remove the tail lamp assembly from the rear end panel extension.
