Tail Lamp Replacement (Chevrolet Coupe)
WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

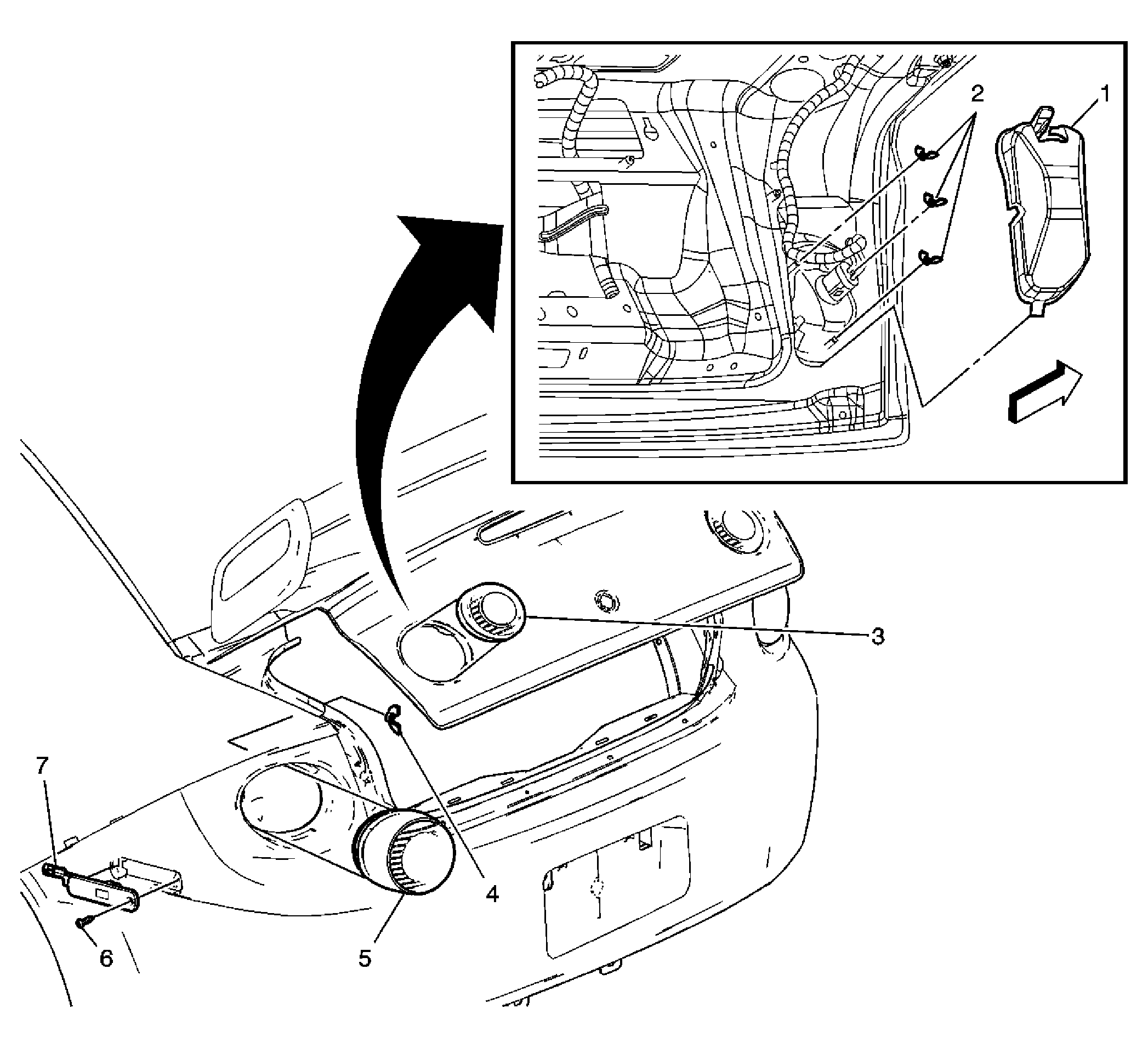

| Callout | Component Name |
|---|---|
| Backup Lamp Assembly Replacement | |
| 1 | Backup Lamp Cover Tip: Press the tab on the cover to remove from the decklid. |
| 2 | Backup Lamp Nut (Qty: 3)
CAUTION:
Refer to Fastener Caution
. Tip: If only replacing the bulb, turn the bulb socket assembly and pull out of the lamp assembly. This can be done from inside of the rear compartment lid, without removing the lamp from the vehicle. Tighten: 10 N.m (89 lb in) |
| 3 | Backup Lamp Assembly Tip: Disconnect the electrical connector. |
| Tail Lamp Assembly Replacement | |
| 4 | Tail Lamp Nut (Qty: 3) Tip: If only replacing the bulb, turn the bulb socket assembly and pull out of the lamp assembly. This can be done from inside of the rear compartment, without removing the lamp assembly. Tighten: 10 N.m (89 lb in) |
| 5 | Tail Lamp Tip: Disconnect the electrical connector to remove the lamp from the quarter panel. |
| Side Marker Lamp Assembly Replacement | |
| 6 | Side Marker Screw (Qty: 1) Tighten: 2 N.m (18 lb in) |
| 7 | Side Marker Lamp Tip: Disconnect the electrical connector to remove the lamp from the fascia. |
