Tail Lamp Replacement (Chevrolet European)

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

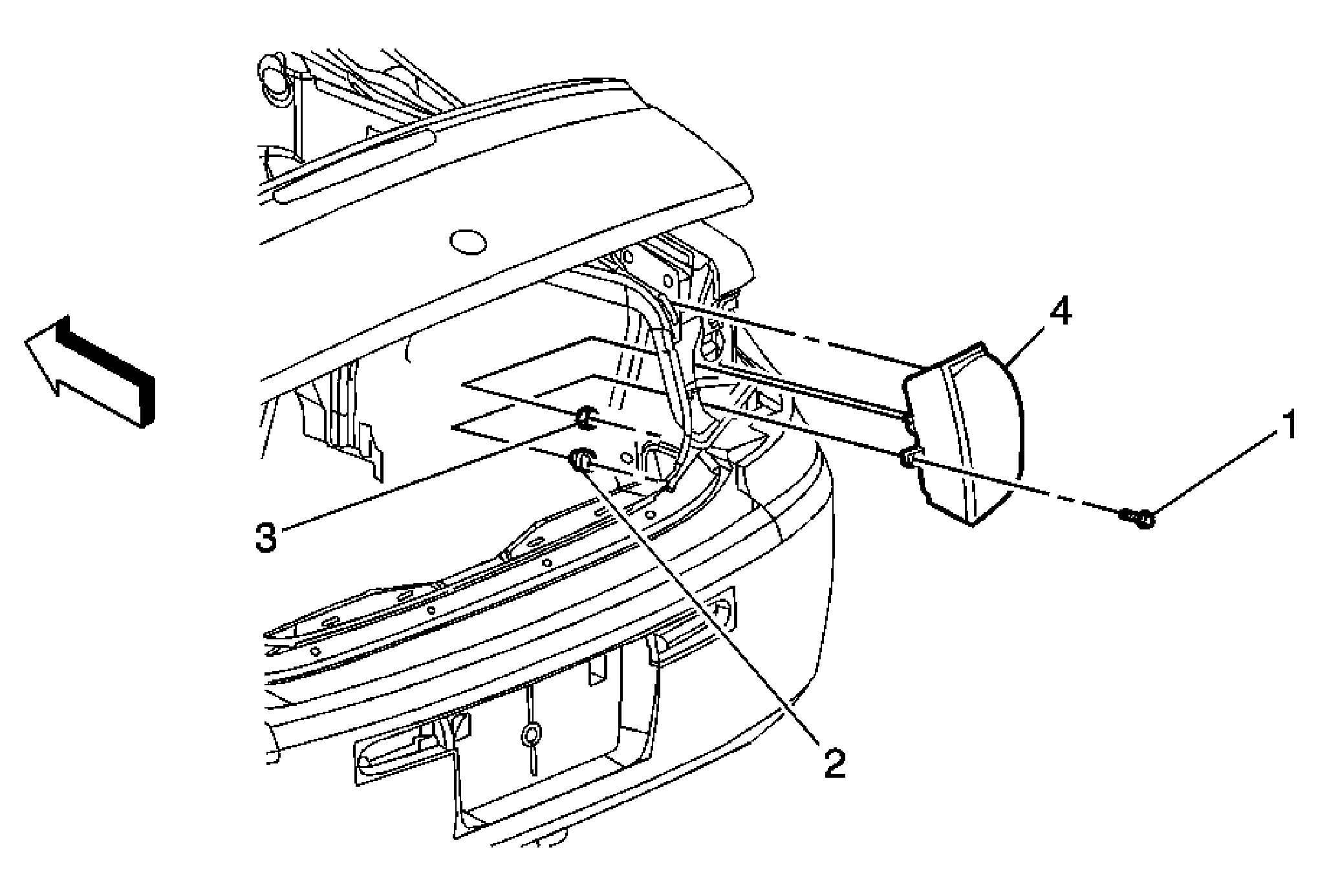

Fig 1: Tail Lamp Assembly and/or Backup, Sidemarker, Stop, Turn Signal Bulb Replacement (Chevy Export)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Tail Lamp Screw CAUTION: Refer to Fastener Caution . Tighten: 1.5 N.m (13 lb in) Procedure Remove the nut from inside the rear compartment. If only servicing the bulbs, turn the bulb/socket and pull out of the lamp assembly. This can be done from inside of the rear compartment, without removing the lamp from the vehicle.
2	Tail Lamp Nut Tip: Hand tighten only, no torque required
3	Tail Lamp Nut Tighten: 4.5 N.m (40 lb in)
4	Tail Lamp Assembly Procedure Pull the lamp from the pocket. Disconnect the electrical connector. Upon installation, align pin on the lamp to the hole in the tail lamp pocket. Insert the lamp into the pocket and hold while securing the nuts.
