Rear License Plate Lamp Replacement (Pontiac G5)
WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

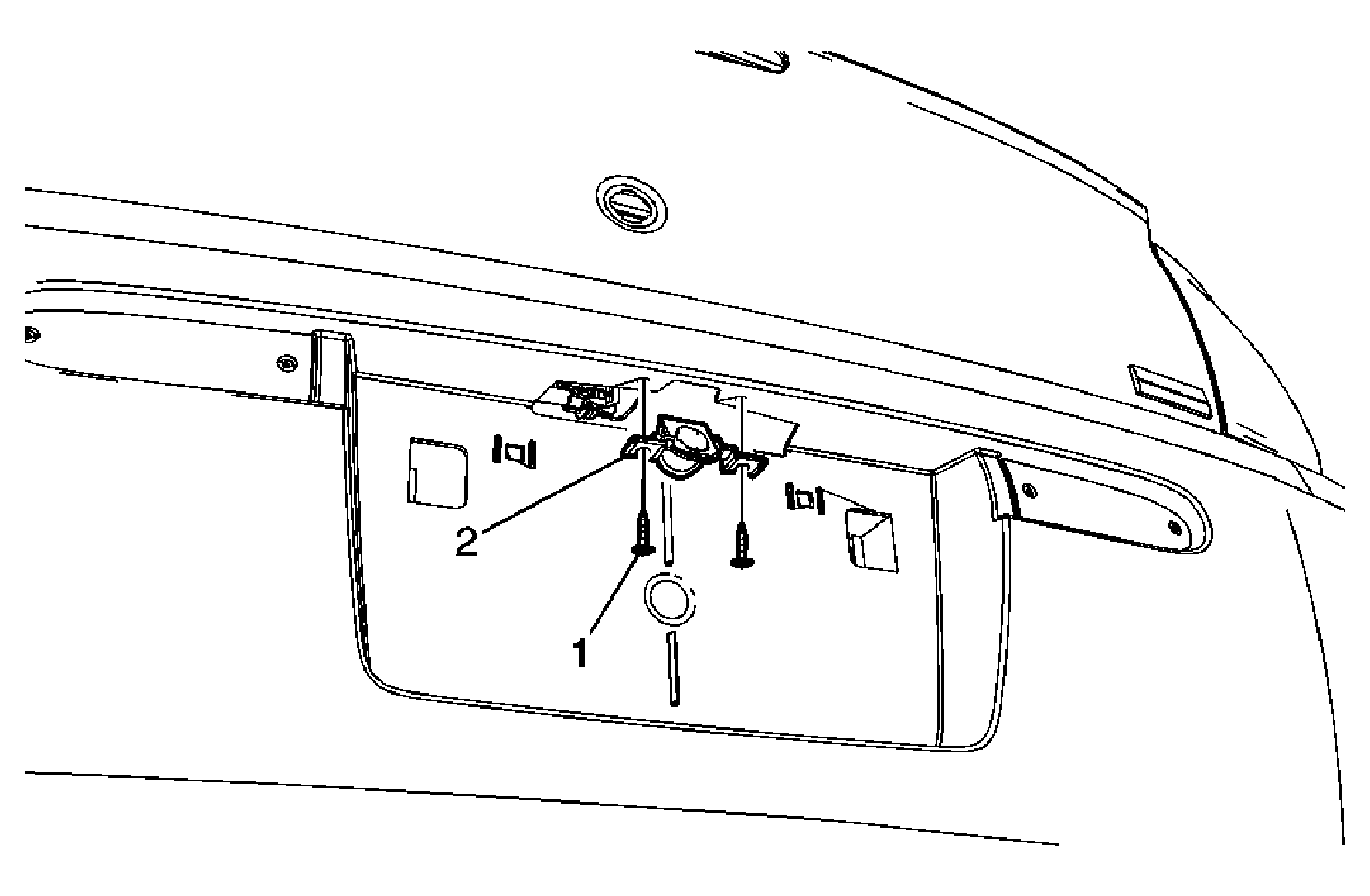

| Callout | Component Name |
|---|---|
| 1 | License Plate Lamp Assembly Screw (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 2.5 N.m (22 lb in) |
| 2 | License Plate Lamp Assembly Tip: Remove the lamp assembly from inside the rear bumper fascia and disconnect the bulb socket. |
