Sunshade Anchor Replacement

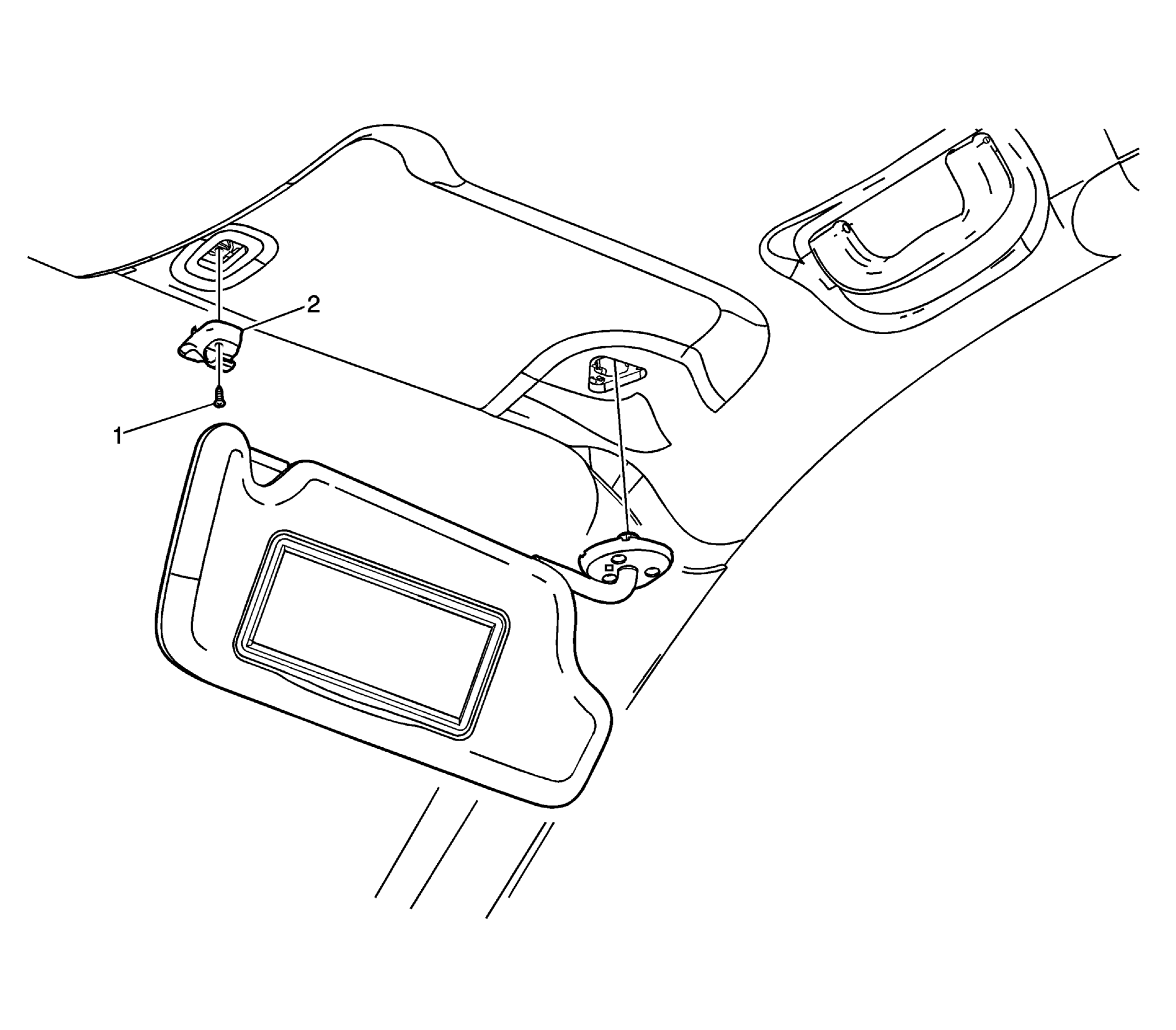

Fig 1: Identifying Sunshade Anchor Components
GM1602981Courtesy of GENERAL MOTORS CORP.
Sunshade Anchor Replacement

Callout Component Name
NOTE: Refer to Fastener Notice .
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Sunshade Anchor Screw

Tighten:  2 N.m (18 lb in)
2 Sunshade Anchor
