Assist Handle Replacement

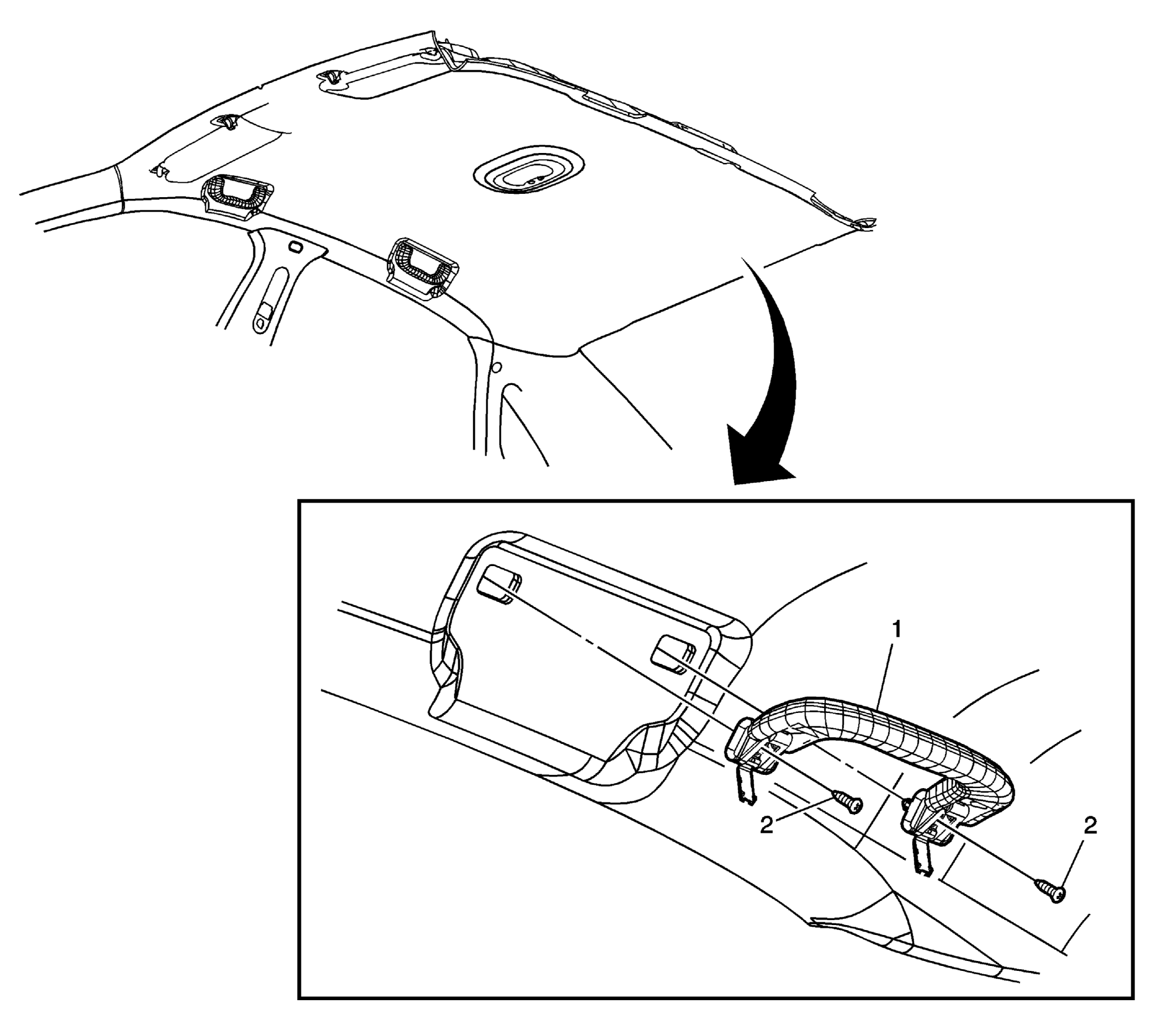

Fig 1: Identifying Assist Handle Components
GM1602970Courtesy of GENERAL MOTORS CORP.
Assist Handle Replacement

Callout Component Name
NOTE: Refer to Fastener Notice .
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Assist Handle Screw

Tighten:  2 N.m (18 lb in)
2 Assist Handle Assembly
