Cooling Fan and Shroud Replacement (LAT)

Preliminary Procedure

1. Drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill With HP5)  or Cooling System Draining and Filling (Static Fill Without HP5)  or Cooling System Draining and Filling (GE 47716 Fill With HP5)  or Cooling System Draining and Filling (GE 47716 Fill Without HP5) .
2. Disconnect the hybrid system. Refer to Hybrid Battery Service Disconnect/Connect .
3. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle .
4. Remove the radiator opening upper cover. Refer to Radiator Opening Upper Cover Replacement .
5. Disconnect the electrical connector from the fan motor.
6. Remove the front fascia. Refer to Front Bumper Fascia Replacement (Base) or Front Bumper Fascia Replacement (Red Line) .
7. Remove the front bumper impact bar. Refer to Front Bumper Impact Bar Replacement .
8. Disconnect the transmission oil cooler lines from the radiator.
9. Remove the radiator inlet and outlet hoses. Refer to Radiator Inlet Hose Replacement (LAT)  , and Radiator Outlet Hose Replacement (LAT) .
10. Disconnect the compressor hose from the condenser. Refer to Air Conditioning Compressor Hose Replacement (LAT)
11. Disconnect the liquid line from the condenser. Refer to Air Conditioning Condenser and Air Conditioning Evaporator Tube Replacement (LAT)

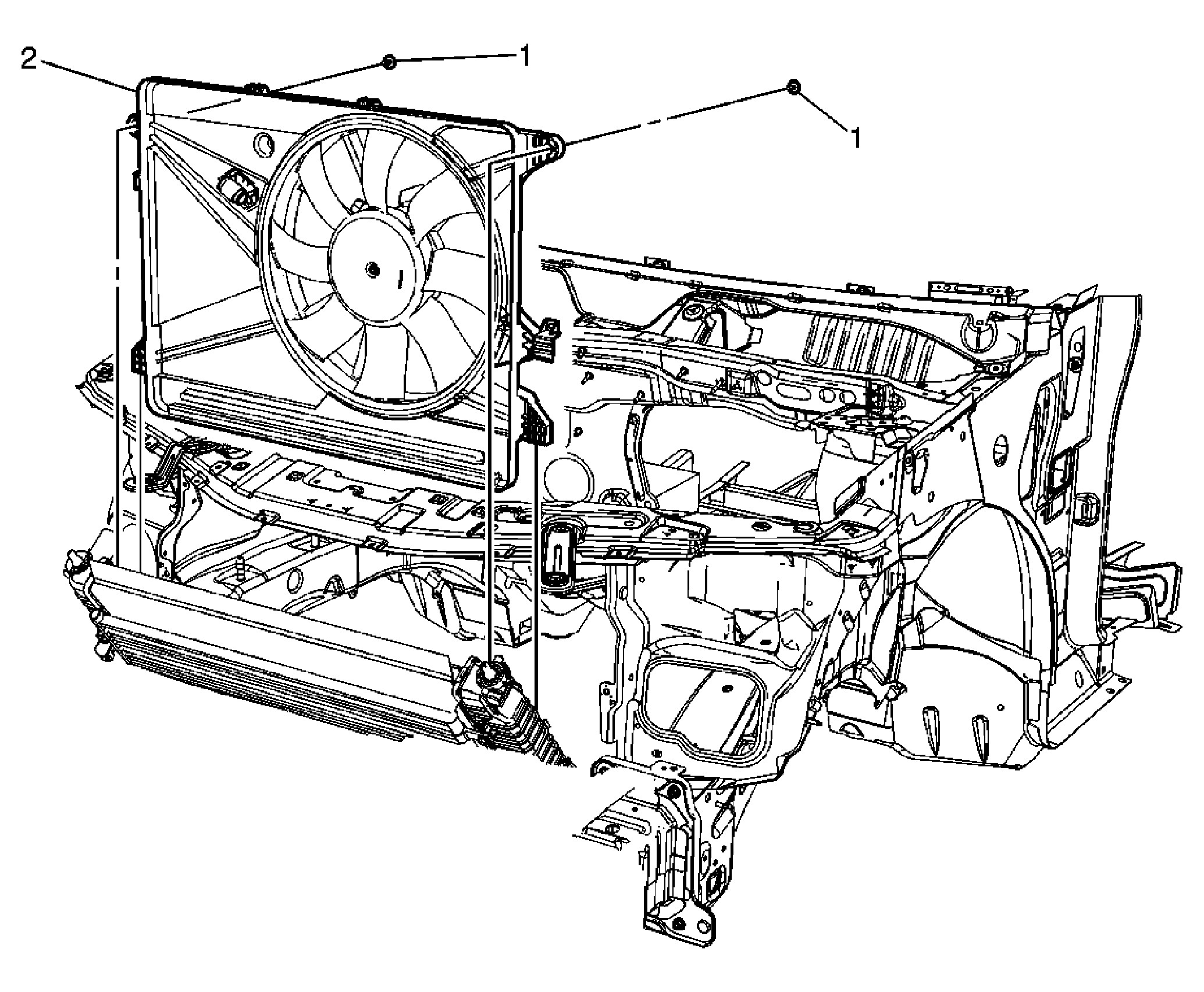

12. Remove the condenser radiator fan module (CRFM) mounting bracket bolts from the radiator support.
13. Remove the CRFM mounting brackets from the radiator support.
14. Lift the CRFM assembly from the lower mounts and carefully move the bottom of the assembly rearward while tilting the top forward.

Tighten:  8 N.m (71 lb in)
