Front Bumper Impact Bar Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

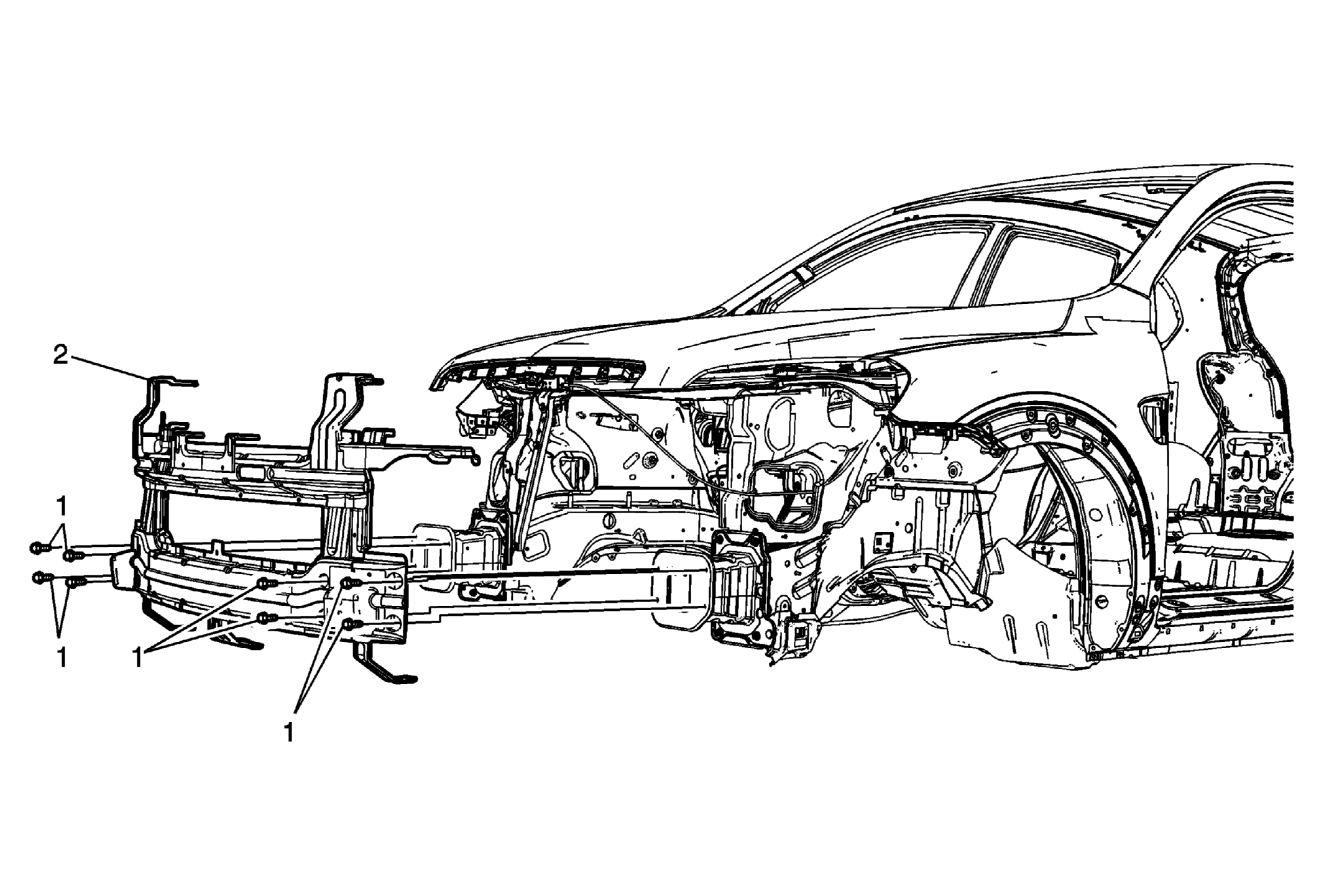

Fig 1: Front Bumper Impact Bar Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Base) or Front Bumper Fascia Replacement (Red Line) .
1	Front Bumper Impact Bar Bolt (Qty: 8) CAUTION: Refer to Fastener Caution . Tighten: 30 N.m (22 lb ft)
2	Front Bumper Impact Bar Procedure Disconnect the electrical connectors/harnesses as needed. Transfer any parts as needed.

Callout

Component Name

Preliminary Procedure:
Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Base) or Front Bumper Fascia Replacement (Red Line) .

Front Bumper Impact Bar Bolt (Qty: 8)

CAUTION: Refer to Fastener Caution .

Tighten: 30 N.m (22 lb ft)

Front Bumper Impact Bar

Procedure

Disconnect the electrical connectors/harnesses as needed.
Transfer any parts as needed.
