Front Bumper Fascia Replacement (Base)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

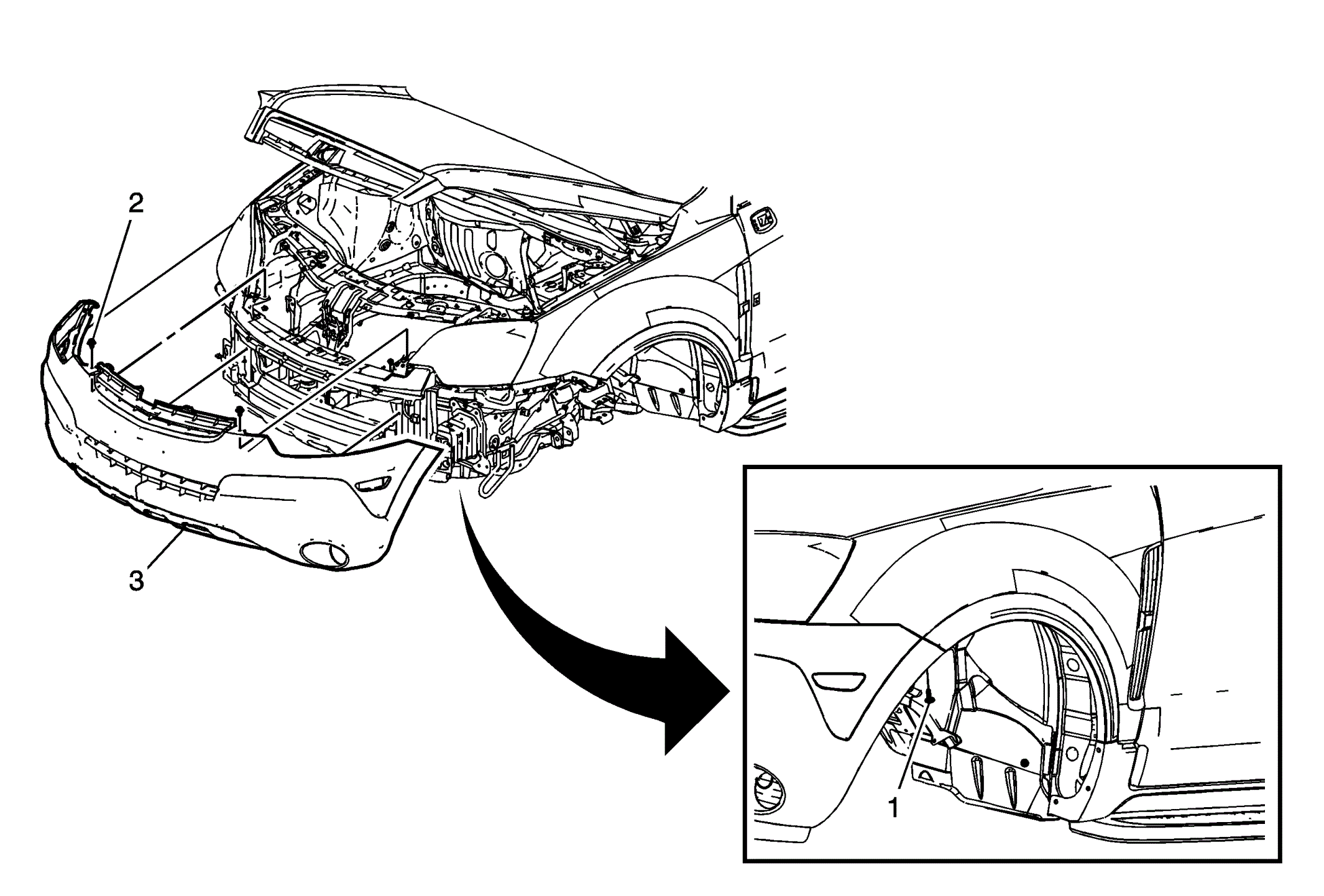

Fig 1: Front Bumper Fascia Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the radiator opening upper cover. Refer to Radiator Opening Upper Cover Replacement . Remove the front wheelhouse liner to fascia screw only. Refer to Front Wheelhouse Liner Replacement . Remove the front bumper fascia air deflector. Refer to Front Bumper Fascia Air Deflector Replacement .
1	Front Bumper Fascia Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tip: Reach underneath the wheelhouse to access the bolts. Tighten: 10 N.m (89 lb in)
2	Front Bumper Fascia Retainer (Qty: 2)
3	Front Bumper Fascia Tip: Pull forward to remove the front bumper fascia.
