Removal Procedure

    WARNING:

    Do not attempt to repair or alter the head impact energy-absorbing material glued to the headliner or to the garnish trims. If the material is damaged, replace the headliner and/or the garnish trim. Failure to do so could result in personal injury.

    CAUTION:

    If a vehicle is equipped with a head curtain inflator module ensure that the inflator module and tether are undamaged. If tether or curtain airbag are damaged in any way, they must be replaced.

    CAUTION:

    Use care when working around the head curtain inflator module. Sharp tools may puncture the curtain airbag. If the head curtain inflator module is damaged in any way, it must be replaced.

  1. Disable the SIR system. Refer to SIR Disabling and Enabling .
    2. Fig 1: Sunshade Assembly
    GM3635042Courtesy of GENERAL MOTORS COMPANY
  2. Remove the sunshade assembly (3). Refer to Sunshade Replacement .

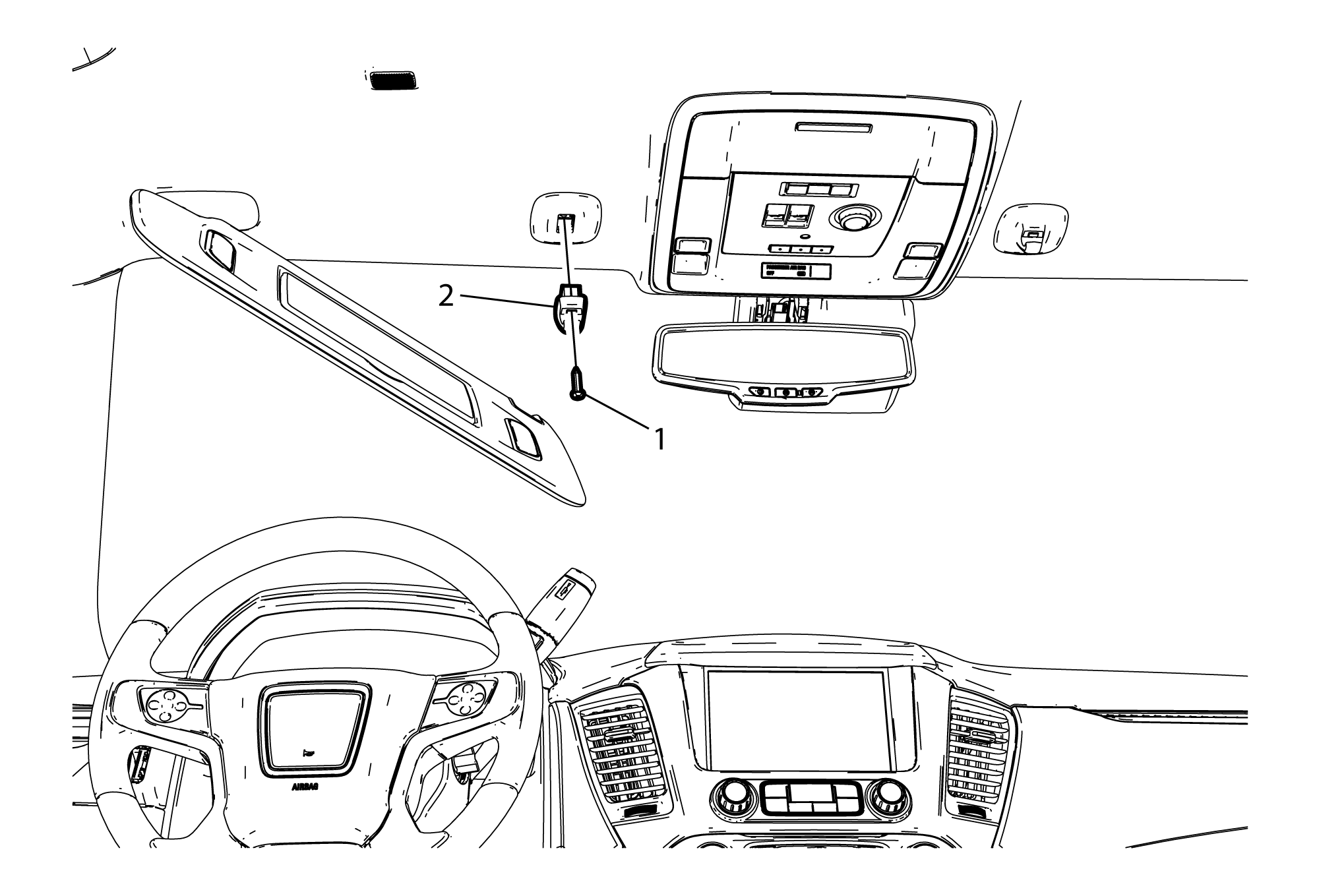

    3. Fig 2: Sunshade Support Assembly
    GM3635094Courtesy of GENERAL MOTORS COMPANY
  3. Remove the sunshade support assembly (2). Refer to Sunshade Support Replacement .

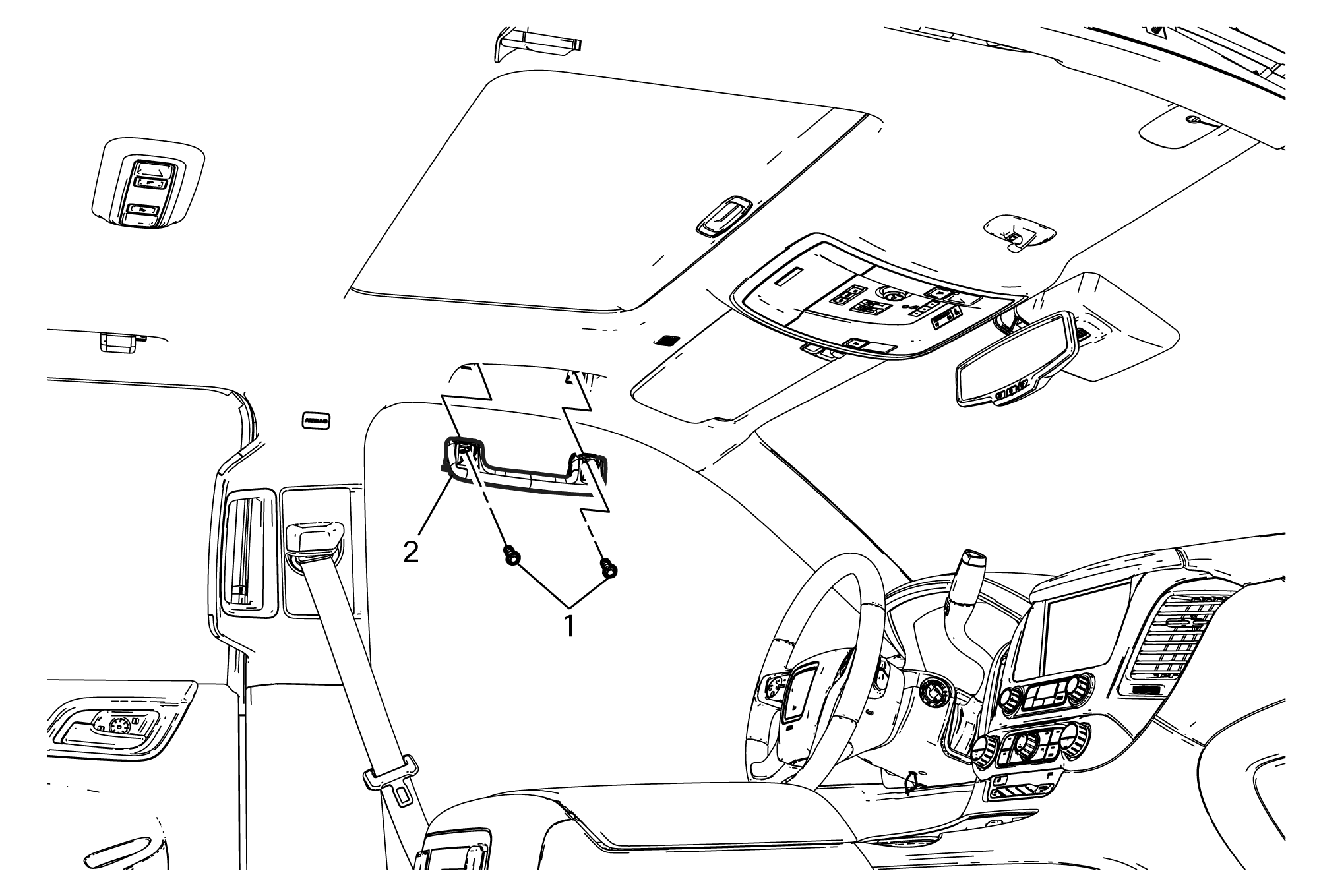

    4. Fig 3: Roof Rail Assist Handle Assembly
    GM3636006Courtesy of GENERAL MOTORS COMPANY
  4. Remove the roof rail assist handle assembly (2). Refer to Roof Rail Assist Handle Replacement .

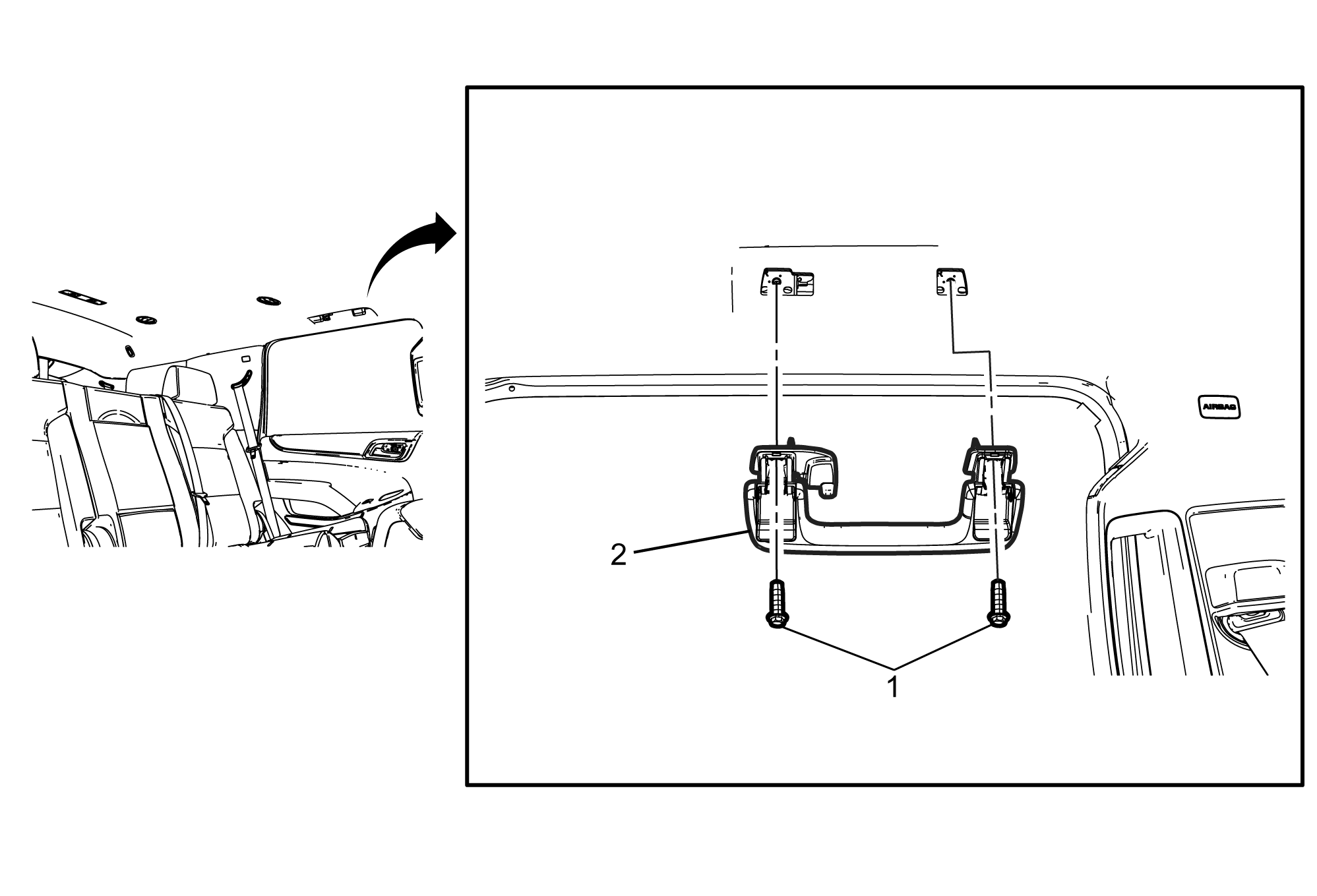

    5. Fig 4: Roof Rail Rear Assist Handle
    GM3635159Courtesy of GENERAL MOTORS COMPANY
  5. Remove the roof rail rear assist handle (2). Refer to Roof Rail Rear Assist Handle Replacement .
    6. Fig 5: Rear Seat Position Center Reading and Courtesy Lamp
    GM3256771Courtesy of GENERAL MOTORS COMPANY
  6. Remove the rear seat position center reading and courtesy lamp (1). Refer to Rear Seat Position Center Reading and Courtesy Lamp Replacement .
    7. Fig 6: Roof Console Assembly
    GM3270557Courtesy of GENERAL MOTORS COMPANY
  7. Remove the roof console assembly (2). Refer to Roof Console Replacement .
    8. Fig 7: Roof Rear Console (Chevrolet/GMC)
    GM3639927Courtesy of GENERAL MOTORS COMPANY
  8. Remove the roof rear console (3) if equipped. Refer to Roof Rear Console Replacement (Chevrolet / GMC) .
    9. Fig 8: Windshield Garnish Molding Assembly Left Side
    GM3636056Courtesy of GENERAL MOTORS COMPANY
  9. Remove the windshield garnish molding assembly left side (1). Refer to Windshield Garnish Molding Replacement (Left Side)Windshield Garnish Molding Replacement (Right Side) .
    10. Fig 9: Windshield Garnish Molding Assembly Right Side
    GM3637886Courtesy of GENERAL MOTORS COMPANY
  10. Remove the windshield garnish molding assembly right side (3). Refer to Windshield Garnish Molding Replacement (Left Side)Windshield Garnish Molding Replacement (Right Side) .
    11. Fig 10: Center Pillar Upper Trim Panel Assembly
    GM3267752Courtesy of GENERAL MOTORS COMPANY
  11. Remove the center pillar upper trim panel assembly (2). Refer to Center Pillar Upper Trim Panel Replacement .
    12. Fig 11: Body Lock Pillar Upper Trim Panel
    GM3637570Courtesy of GENERAL MOTORS COMPANY
  12. Remove the body lock pillar upper trim panel (3). Refer to Body Lock Pillar Upper Trim Panel Replacement .
    13. Fig 12: Windshield Multifunction Sensor Mount Bracket Cover
    GM3635275Courtesy of GENERAL MOTORS COMPANY
  13. Remove the windshield multifunction sensor mount bracket cover (1). Refer to Windshield Multifunction Sensor Mount Bracket Cover Replacement .
  14. Disconnect all headliner electrical connectors.
  15. Release the headliner wiring harnesses from the windshield pillars.
  16. Move the driver and passenger seats fully forward and recline.
  17. Place the rear seats in the stowed position.

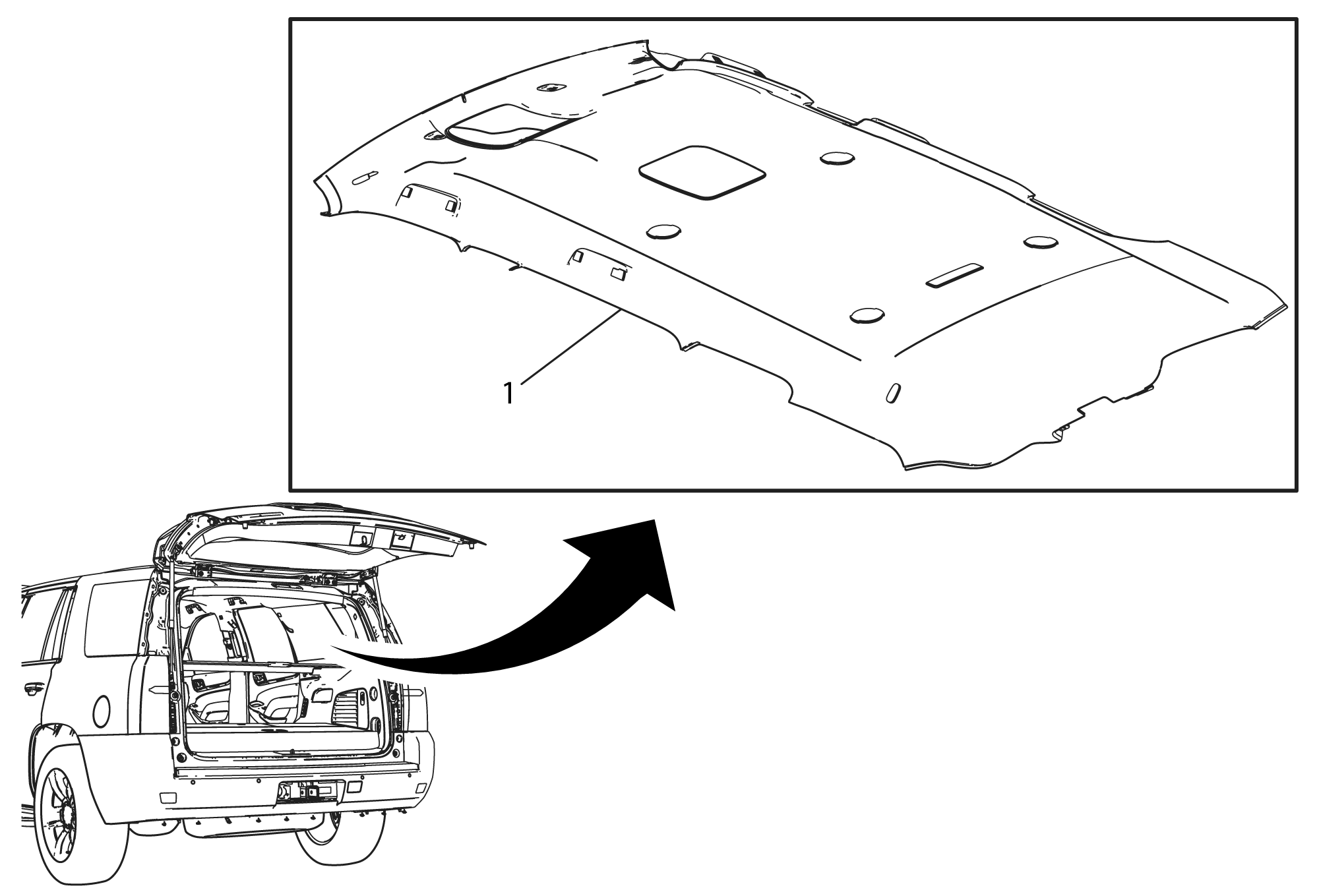

    18. Fig 13: Headliner Trim Panel Assembly
    GM3639944Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Prior to removal, note the routing of the wire harness to aid in reassembly and to ensure proper installation.

  18. Lower the headlining trim panel down on the interior vehicle seats.
  19. Disconnect the electrical connectors and un-route the harness as necessary for removal of the headlining trim panel (1). Refer to Roof Wiring Harness Replacement (Chevrolet, GMC)Roof Wiring Harness Replacement (Cadillac) .
  20. With the aid of an assistant, remove the headliner trim panel assembly (1) from the vehicle through the liftgate opening.
