Rear Seat Position Center Reading And Courtesy Lamp Replacement

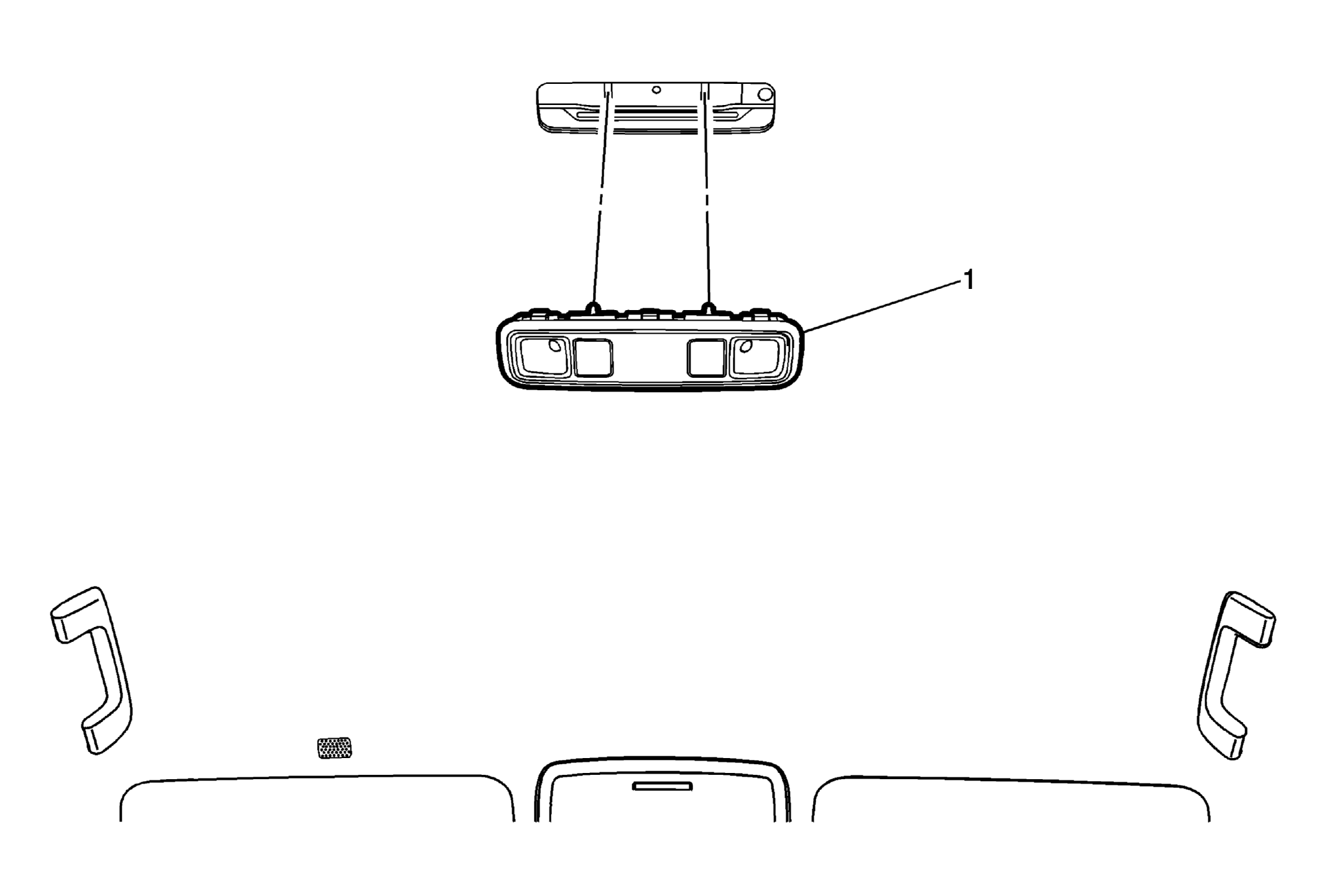

Fig 1: Rear Seat Position Center Reading And Courtesy Lamp
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Rear Seat Position Center Reading and Courtesy Lamp
Procedures
Grasp the reading and courtesy lamp assembly and pull downward to release the retainer clips securing the assembly to the headliner and the roof panel sheet metal bow.
NOTE:
There are two retainers that secure the lamp to the roof panel sheet metal bow and three metal tension tabs that secure the lamp to the headliner.
