Roof Rear Console Replacement (Chevrolet/GMC)

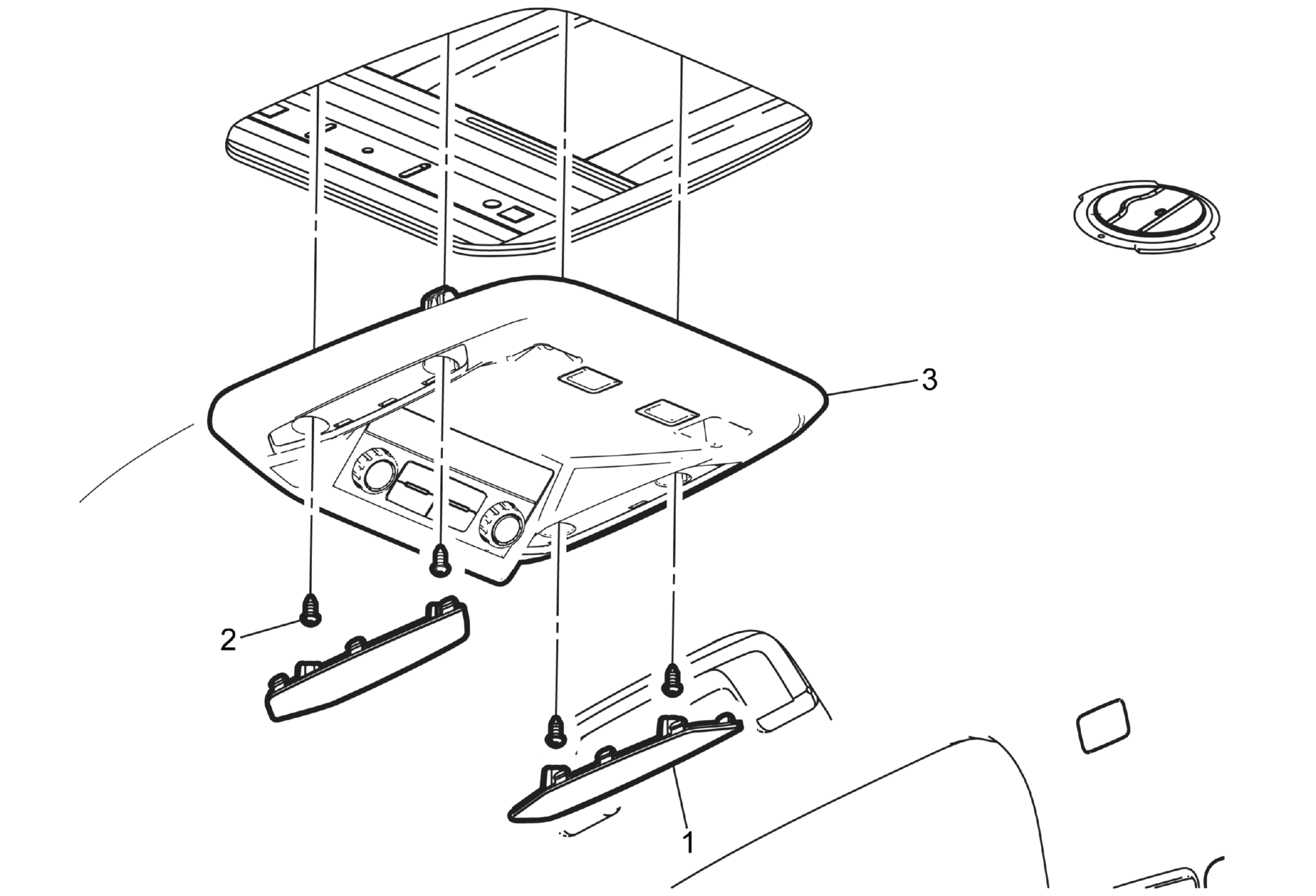

Fig 1: Roof Rear Console (Chevrolet/GMC)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Roof Console Opening Trim Plate (Qty: 2) Procedure Use a flat bladed plastic trim tool in order to release the retainer tabs securing the trim plate to the roof rear console.
2	Roof Rear Console Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
3	Roof Rear Console Procedures Disconnect all electrical connectors. Transfer components as necessary.

Callout

Component Name

Roof Console Opening Trim Plate (Qty: 2)
Procedure
Use a flat bladed plastic trim tool in order to release the retainer tabs securing the trim plate to the roof rear console.

Roof Rear Console Bolt (Qty: 4)

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Roof Rear Console

Procedures

Disconnect all electrical connectors.
Transfer components as necessary.
