Sunshade Replacement

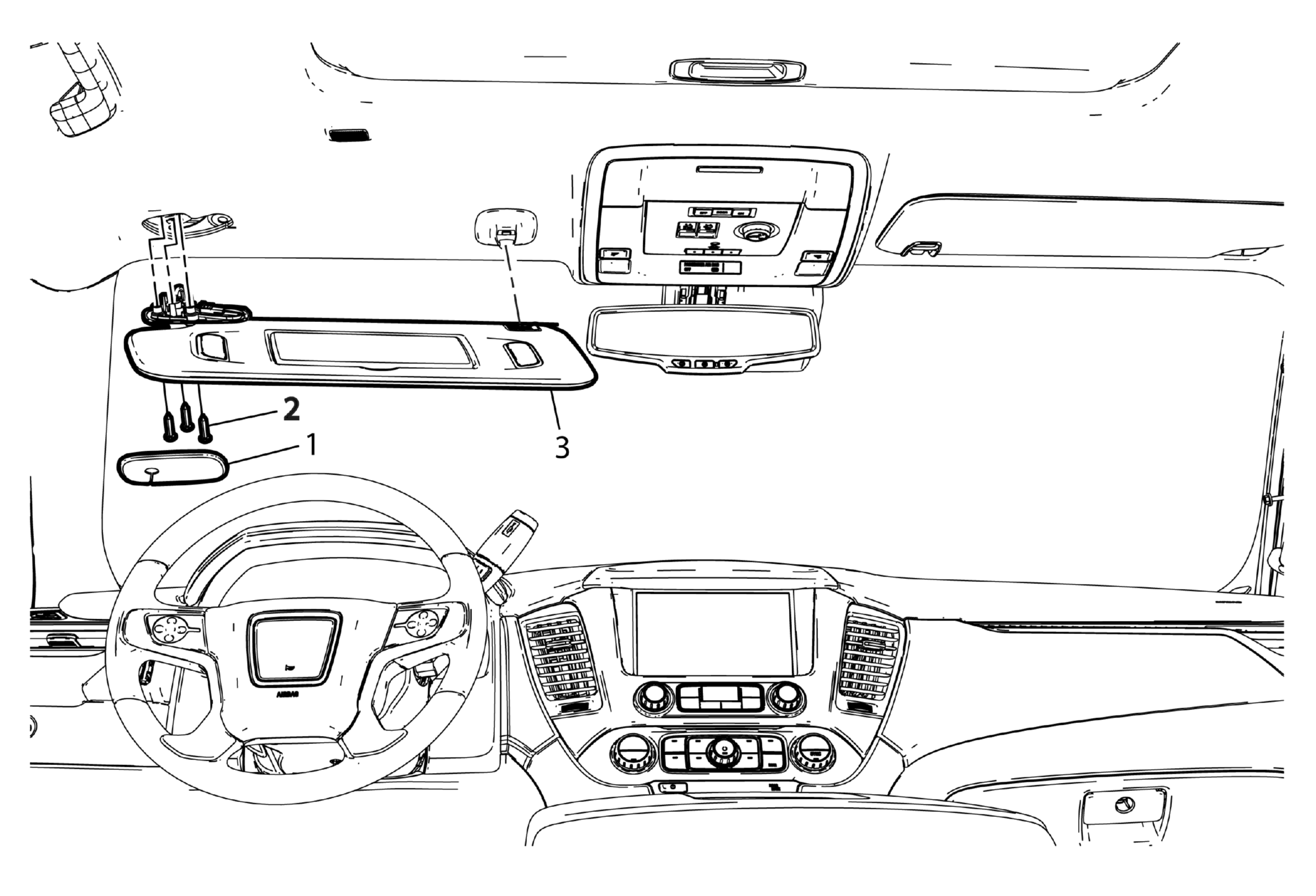

Fig 1: Sunshade Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Sunshade Support Bolt Cover Procedure Use a suitable trim tool to release the sunshade support bolt cover from the sunshade assembly bracket. NOTE: Sunshade support bolt cover has notch located on the inboard side of part to aid in removal.
2	Sunshade Fastener (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
3	Sunshade Assembly Procedure Disconnect the electrical connector.
