Roof Console Replacement

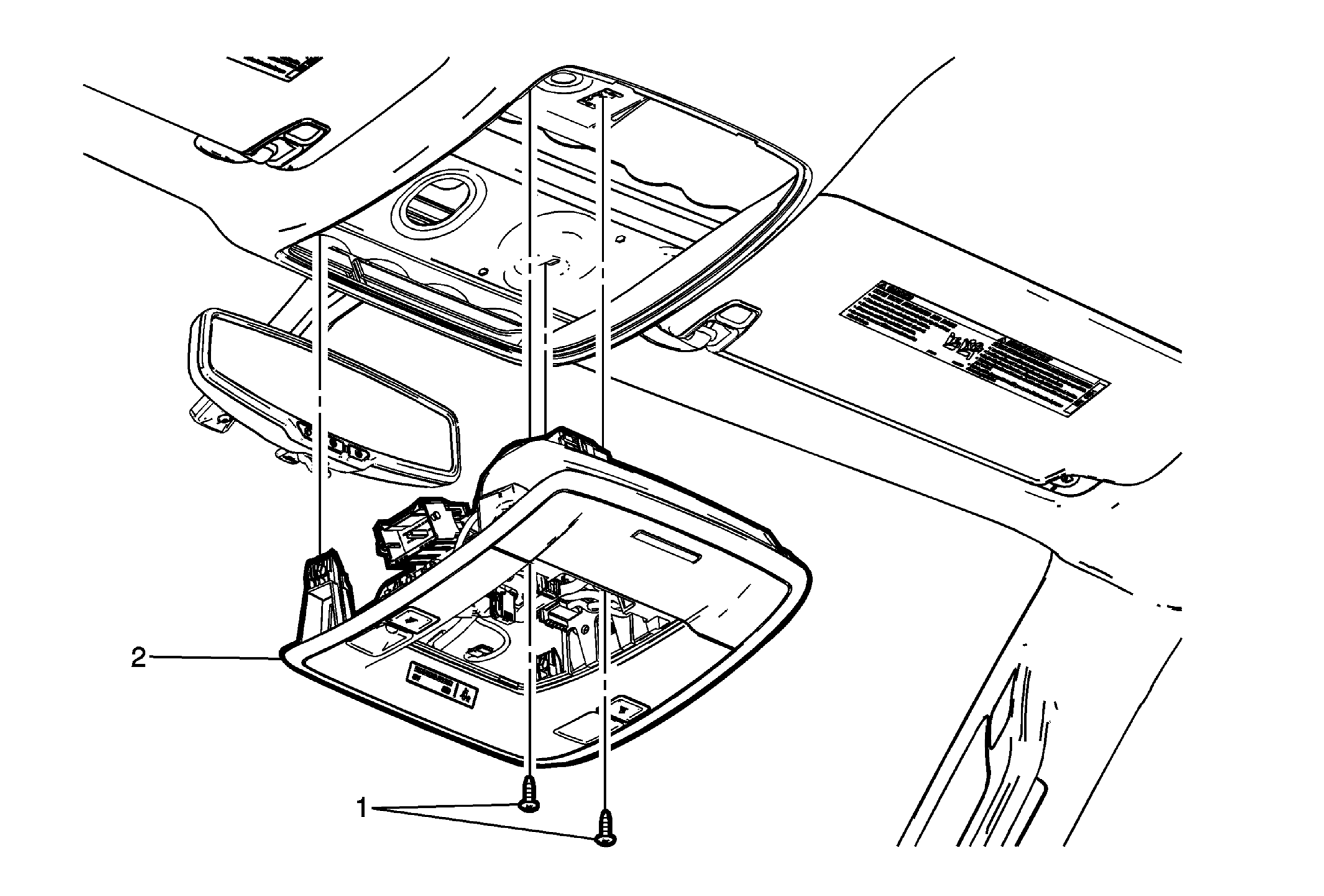

Fig 1: Roof Console Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the roof console opening trim plate. Refer to Roof Console Opening Trim Plate Replacement .
1	Roof Console Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Roof Console Assembly Procedure Grasp the front of the right and left sides of the roof console assembly and pull downward using equal force on each side in order to release the four retainer clips securing the roof console assembly to the headlining assembly. Disconnect the electrical connections. When replacing the roof console assembly, transfer all necessary components.

Callout

Component Name

Preliminary Procedure
Remove the roof console opening trim plate. Refer to Roof Console Opening Trim Plate Replacement .

Roof Console Bolt (Qty: 2)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Roof Console Assembly

Procedure

Grasp the front of the right and left sides of the roof console assembly and pull downward using equal force on each side in order to release the four retainer clips securing the roof console assembly to the headlining assembly.
Disconnect the electrical connections.
When replacing the roof console assembly, transfer all necessary components.
