Rear Seat Back Cushion Opening Panel Replacement (Coupe with 40 Percent Seat)

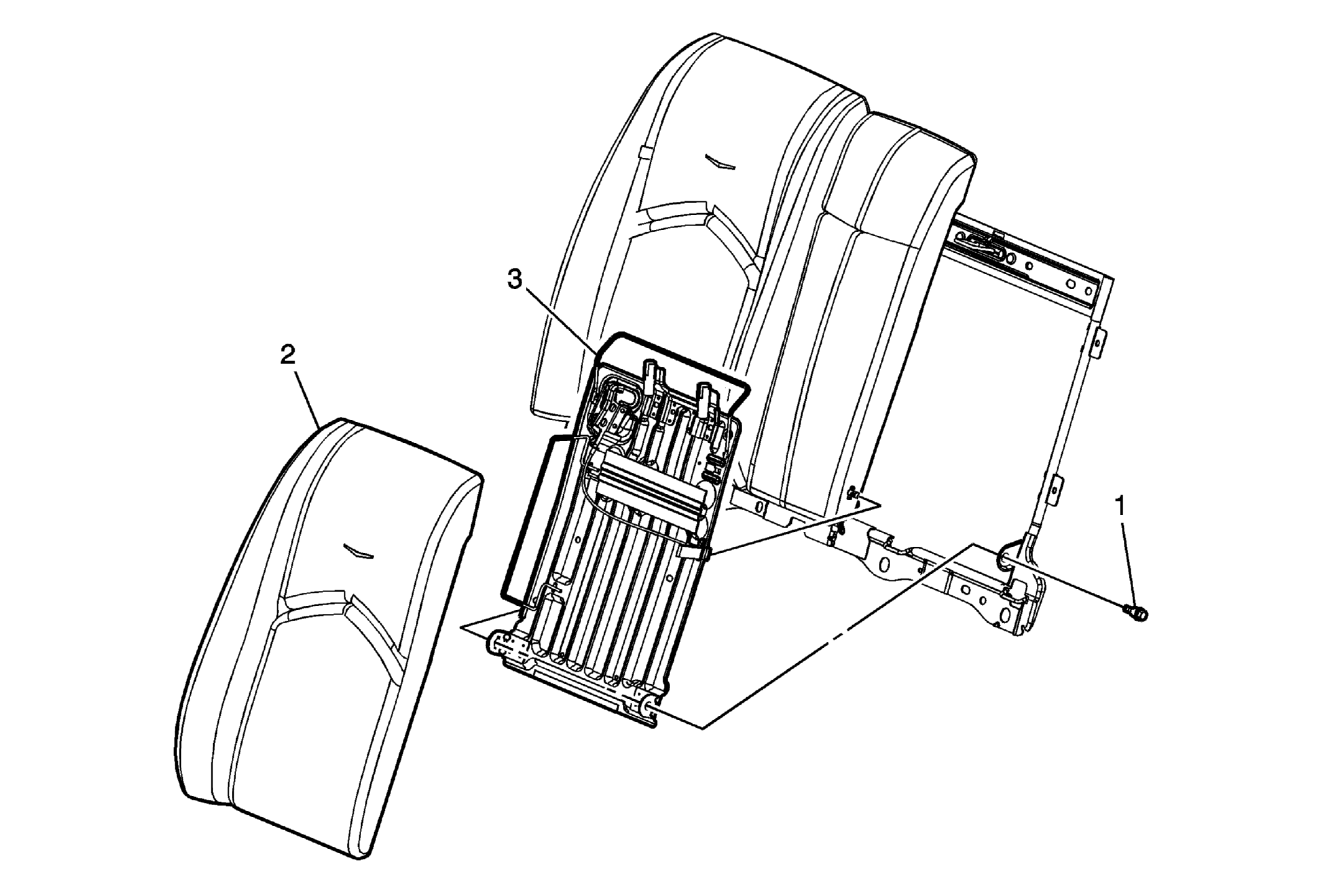

Fig 1: Rear Seat Back Cushion Opening Panel & Bolt (Coupe with 40 Percent Seat)
GM2354308Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Remove the rear seat back. Refer to Rear Seat Back Cushion Removal and Installation (Coupe) .
  2. Remove the rear seat back cushion bolster. Refer to Rear Seat Back Bolster Replacement (Coupe) .
1 Rear Seat Back Panel Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
40 N.m (30 lb ft)
2 Rear Seat Back Cushion Cover and Pad
Refer to Rear Seat Back Cushion Cover and Pad Replacement (without AM9) Rear Seat Back Cushion Cover and Pad Replacement (side with AM9) Rear Seat Back Cushion Cover and Pad Replacement (with AM9) .
3 Rear Seat Back Cushion Panel
