Rear Seat Back Cushion Cover and Pad Replacement (without AM9)

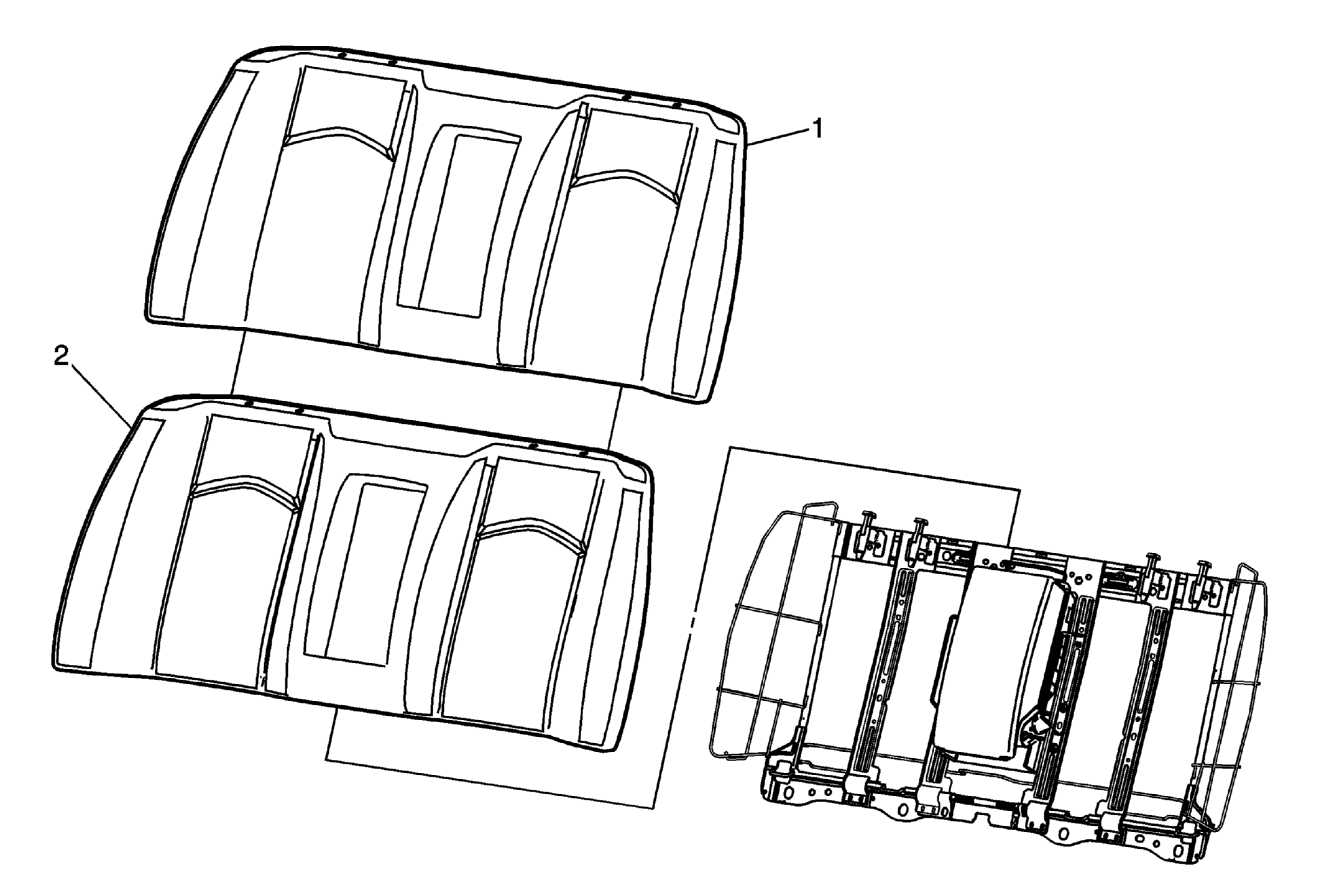

Fig 1: Rear Seat Back Cushion Cover and Pad (without AM9)
GM1970214Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Remove the rear seat back. Refer to Rear Seat Back Cushion Removal and Installation (Coupe) .
  2. Remove the rear seat head restraints. Refer to Rear Seat Head Restraint Replacement .
  3. Remove the rear seat shoulder belt opening bezel. Refer to Rear Seat Belt Opening Bezel Replacement .
  4. Remove the rear seat armrest. Refer to Rear Seat Armrest Replacement (Without AM9) .
1 Rear Seat Back Cushion Cover

Procedure

  1. Disconnect the j-channel connectors around the back cushion cover and armrest.
  2. Separate the seat back cushion cover from the pad.
2 Rear Seat Back Cushion Pad
