Rear Seat Back Cushion Cover and Pad Replacement (side with AM9)

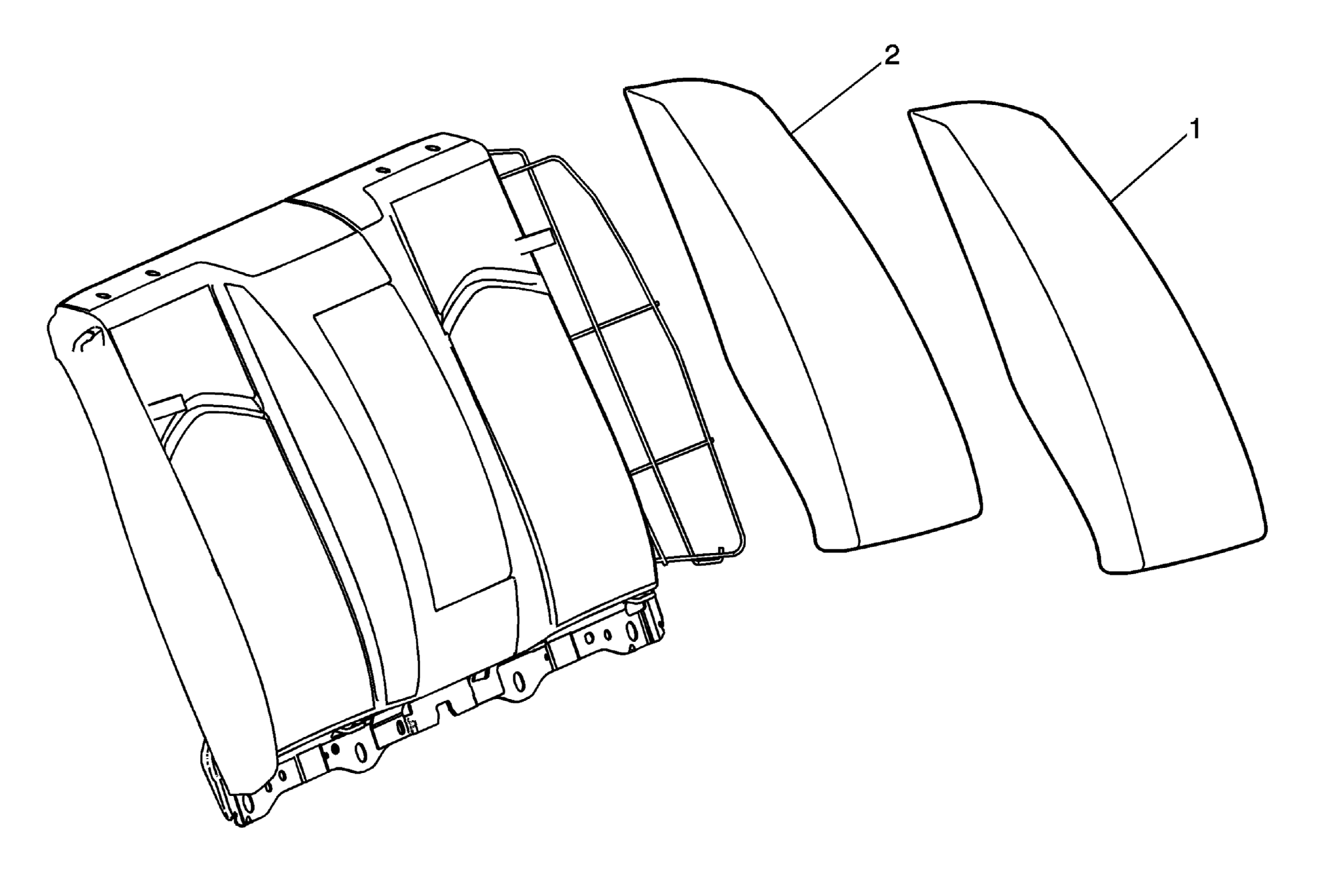

Fig 1: Rear Seat Back Cushion Cover and Pad (Side with AM9)
GM1970216Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Remove the rear seat back. Refer to Rear Seat Back Cushion Removal and Installation (Coupe) .
  2. Remove the rear seat shoulder belt opening bezel. Refer to Rear Seat Belt Opening Bezel Replacement .
1 Rear Seat Back Side Cushion Cover
Procedure
Separate the seat back cushion side cover from the pad.
2 Rear Seat Back Side Cushion Pad
