Rear Seat Back Bolster Replacement (Coupe)

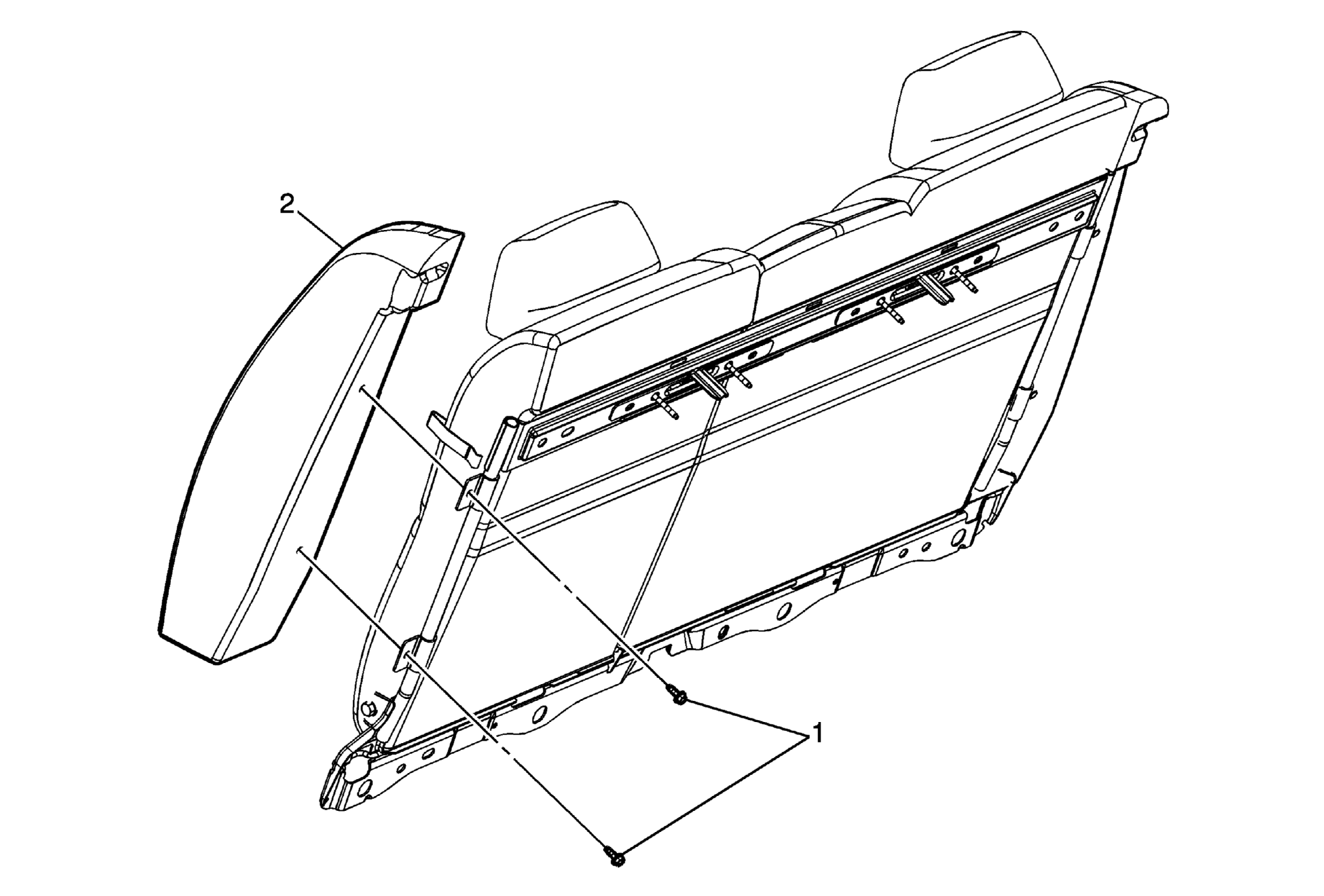

Fig 1: Rear Seat Back Cushion Bolster & Fasteners (Coupe)
GM2354306Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the rear seat back cushion. Refer to Rear Seat Back Cushion Removal and Installation (Coupe)
1 Rear Seat Back Cushion Bolster Fastener (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
6 N.m (53 lb in)
2 Rear Seat Back Cushion Bolster
Procedure
Remove rear seat back cushion bolster from the rear seat cushion frame.
