Rear Seat Back Cushion Cover and Pad Replacement (with AM9)

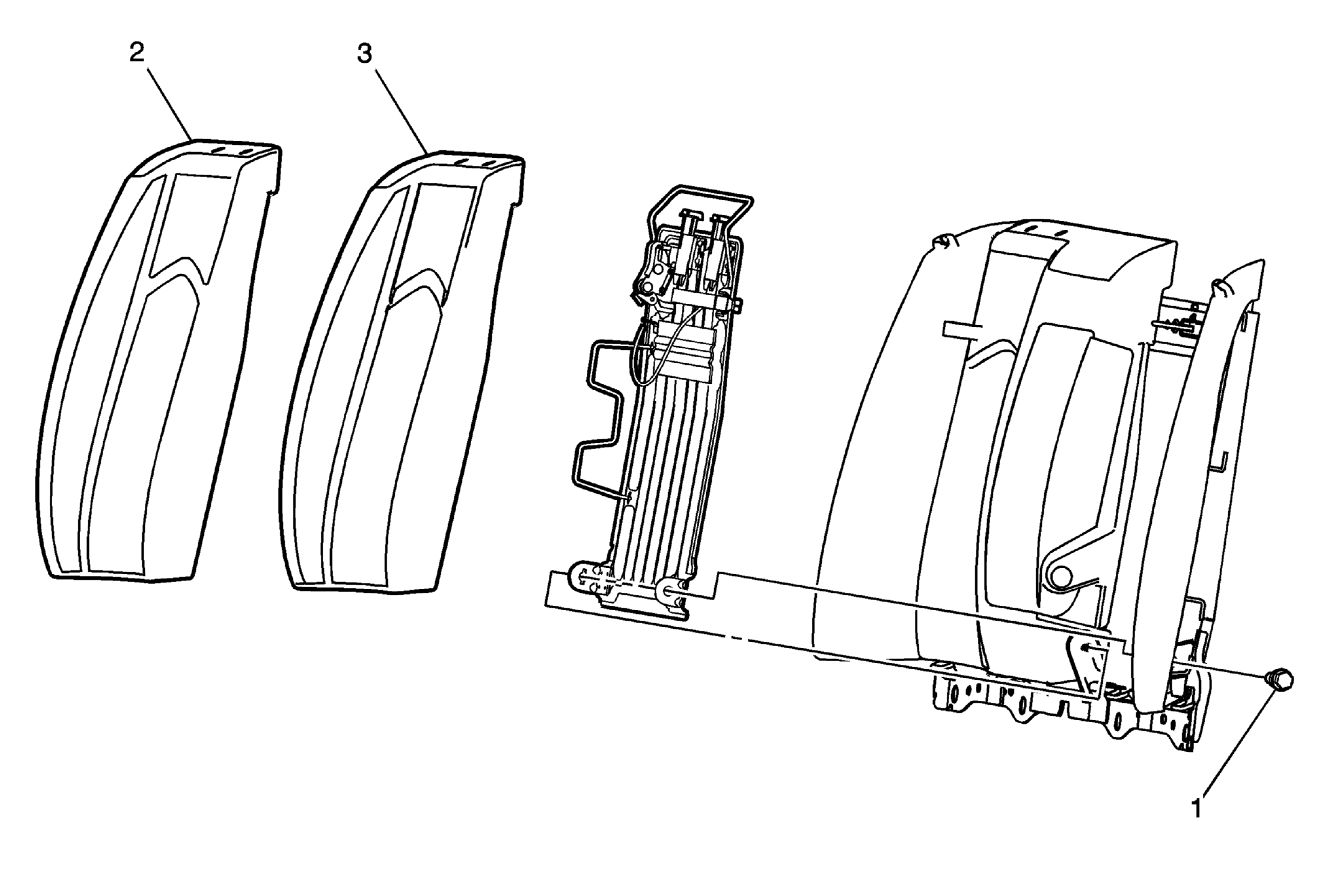

Fig 1: Rear Seat Back Cushion Cover and Pad (with AM9)
GM1970212Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the rear seat back. Refer to Rear Seat Back Cushion Removal and Installation (Coupe) .
  2. Remove the rear seat back cushion bolster. Refer to Rear Seat Back Bolster Replacement (Coupe) .
  3. Remove the rear seat head restraints. Refer to Rear Seat Head Restraint Replacement .
1 Rear Seat Back Panel Bolt
CAUTION:

Refer to Fastener Caution .


Procedure
Tip the seatback up and out to disengage it from the center pivot.
Tighten
40 N.m (30 lb ft)
2 Rear Seat Back Cushion Cover

Procedure

  1. Disengage the j-channel and hook and loop fastener.
  2. Separate the seat back cushion cover from the pad.
3 Rear Seat Back Cushion Pad
