Camshaft Cover Replacement

WARNING: This page is about a different variant/trim than selected.

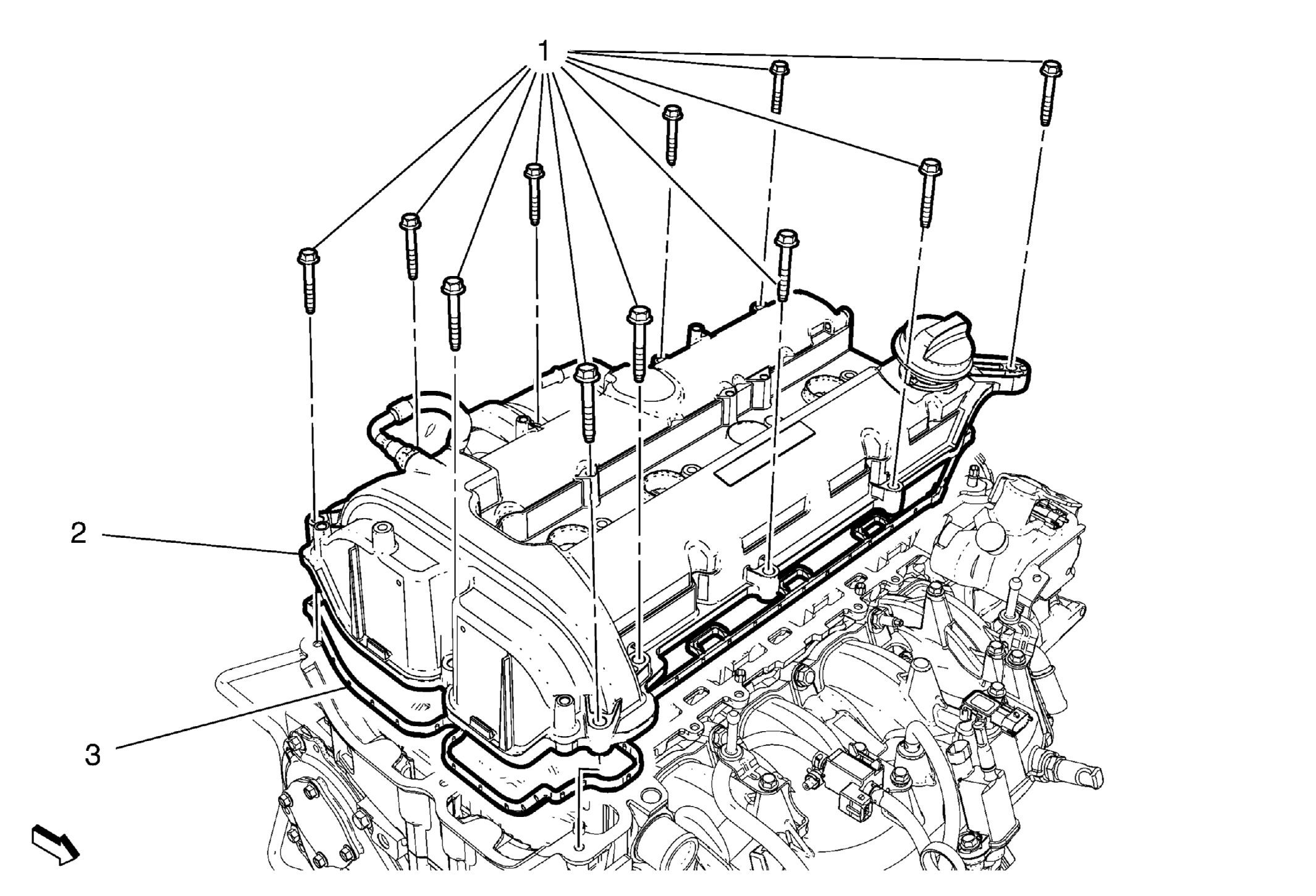

Fig 1: Camshaft Cover, Gasket & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the engine sight shield. Refer to Engine Sight Shield Replacement . Remove the ignition coil. Refer to Ignition Coil Replacement . Remove the engine sight shield brackets. Refer to Engine Sight Bracket Replacement . Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement . Remove the air cleaner rear outlet duct. Refer to Air Cleaner Outlet Rear Duct Replacement . Remove the charge air cooler inlet hose - turbocharger side. Refer to Charge Air Cooler Inlet Hose Replacement (Turbocharger) . Remove the positive crankcase ventilation hose. Refer to Positive Crankcase Ventilation Tube Replacement - Camshaft Cover to Turbo Charger . Remove the positive crankcase ventilation hose. Refer to Positive Crankcase Ventilation Tube Replacement - Camshaft Cover to Air Cleaner Outlet Duct Rear . Remove the turbocharger coolant feed pipe bracket. Refer to Turbocharger Coolant Feed Pipe Bracket Replacement .
1	Camshaft Cover Fastener (Qty: 11) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Camshaft Cover
3	Camshaft Cover Gasket Procedure Use a NEW gasket.
